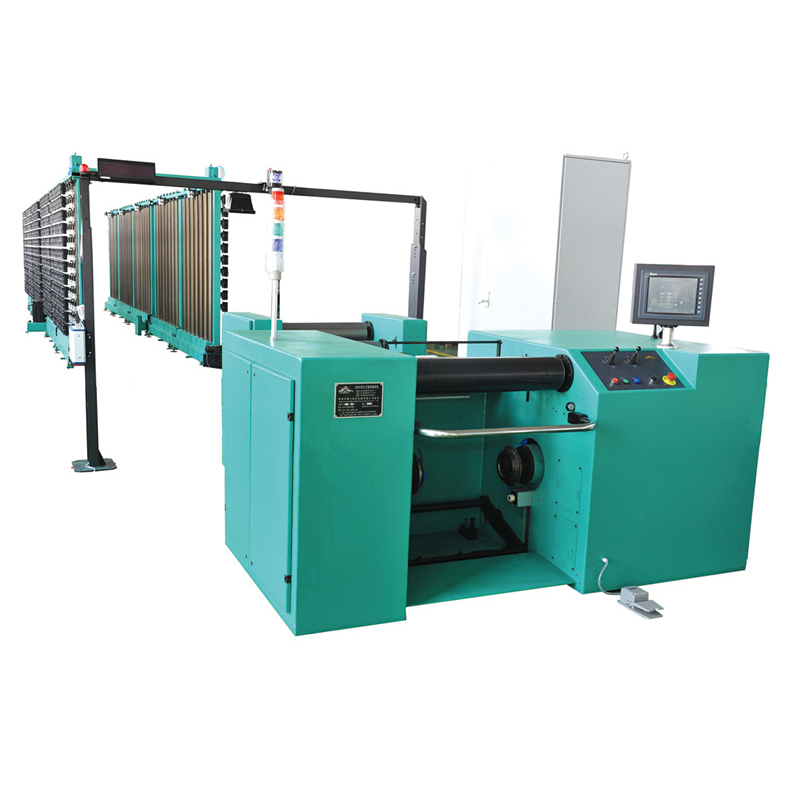

Elastic Yarn Warping Machine With Vertical Creel

Introduce for Warping Machine

GE319 Elastic Yarn Warping Machine With Vertical Creel is driven by 5 pcs of high performance servo motor which are made by lenze Germany and adopts high precision laser to measure distance so the warper is stable, well equipped and easy to operate.

The warping machine is Suitable for warping all kinds of elastic yarn, specially for knitting high quality plain cloth.

Main Features for Warping Machine

1. It's driven in-phase by 5 pcs of Lenze servo. The warper head, leveling roller, draft roller and creel(L&R)are driven by servo motor to eliminate some problems such as noise, maintenace and damager which caused by tradional mechanical drive.

2. It Adopts imported Siements PLC, big colored LCD screen and touch screen, and bus-mastering, Which improves contralling precision and stability.

3. To ensure the precision of line speed of beam, the warper adopts highprecision laset To measure and monitors winding perimeter of the beam.

4. Protection system is equipped to avoid problems caused by power break, no phrase and presure.

5. Different elastic bobbins compensation curves can ensure both of the beam'm rings and Net weight of the yarn are the same.

6. High precision camscan stop divice is equiped to ensure stop immediately during missing ends and yarn broken.

7. The system is equipped with self-diagnosed function which can monitor the state in real time and yarn tension to make sure the system safety and precision.
Elastic Yarn Warping Machine with Vertical Creel (GE319)

Elastic Yarn Warping Machine with Vertical Creel (GE319)

Warper beam size	21"×φ21" (inch)
Warper linear speed	300 m/min
Pre-drafting	0-300%
final draft	15%-100%
Brake time	less than 0.6 seconds
The deviation of stop synchronization	less than ±3%
Creel capacity	616,700,728,784,792,896etc. (According to customers requirements)
Servo Motor Power	warper head power 13.2kw;drafting roller 4.6kw;creel 2×10.6kw
Total power consumption	<10kw
