H Beam Assembling Machine, Welding Machine

Min.Order:

1 Piece

Get Latest Price>

Contact Now Start Order

You can manage your favorites in member center.

Favorites

Basic Info

Product Description

Specification:

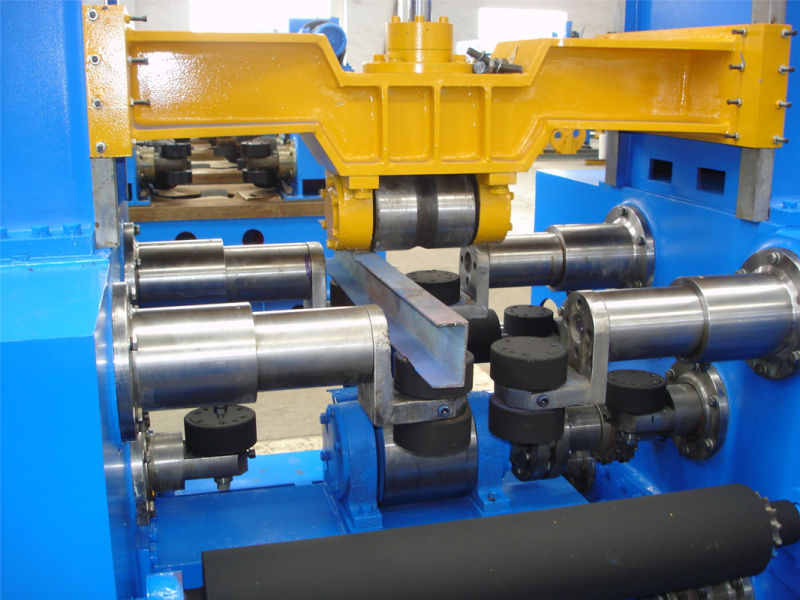

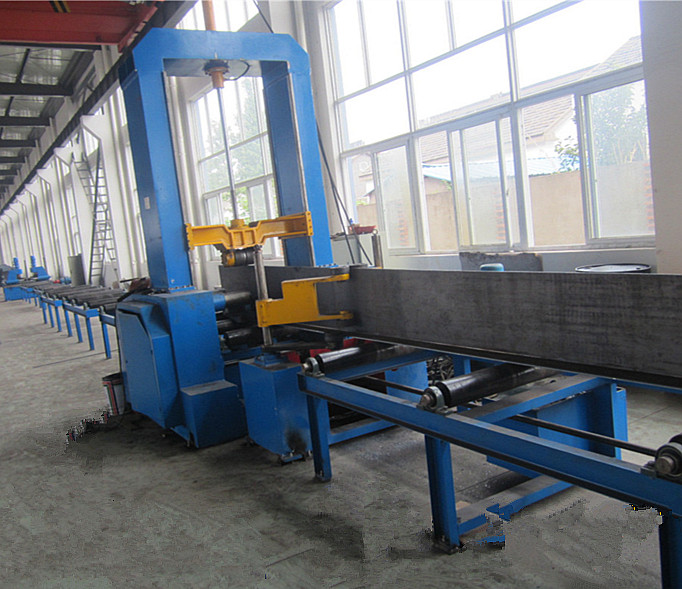

Automatic clamp and centralize the web and flange, alignment and welding, can improve the working efficiency by more one time than similar products. The main engine drive is controlled by imported AC frequency adjustor to make sure stable and reliable. There is pilot arc device to ensure welding quality.

The positioning of web and flange is realized with hydraulic drive, on the two sides, the mechanical clamping and centralizing is acted synchronously, to ensure web and flange positioning with various sizes within allowed range.

The automatic centralizing is accurate and needless to adjust each time(no center deviation wheel for minor adjustment). When assembling, there is automatic hydraulic holding frame which can go up and down, to make sure web and flange are in matched position. The upper beam has 4pairs of guide on the left and right to make sure stabilization.

The automatic welding system is driven by light cylinder without compressed air source. The inlet and outlet table roller and inlet tension rod are sectional type, and can add and remove according to customer need.

The main motor uses AC frequency transforming speed adjustor to control speed. The hydraulic system has standard products with precision filter, to ensure long life and stable function of magnetic valve.

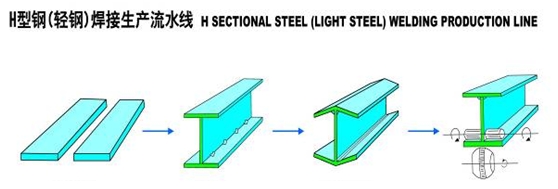

H Beam Assembling Machine, Welding Machine

H Beam Assembling Machine, Welding Machine

Supply scope:
1, The main structure: main frame, upper gate frame, synchronous clamping and centralizing system of web and flange, main transmission motor reducer.
2, Inlet table roller system: active and passive table roller: 2.6m*3sets, tension rod: 3 sets.
3, Outlet table roller system: active and passive table roller: 2.6m*3sets.
4, Hydraulic system: oil bump station, high pressure rubber pipe, and hydraulic cylinder.
5, Electric control system: electric cabinet, AC frequency converter and etc.

Model	Z15	Z18	Z20
web height mm	200-1500	200-1800	200-2000
web thickness mm	6-32
web length mm	4000-15000
flange width mm	200-800
flange thickness mm	6-40
assembly speed mm/min	500-6000
feeding table roller mm	2600×2
output table roller mm	2600×2
centralized way	hydraulic link mechanism clamp, centralize and weld in the middle automaticly
speed control	imported AC frequency adjustor stepless adjust
input volumn	16KVA exclude wellding power
welding system	2 sets of CO2 protecting welding machine
