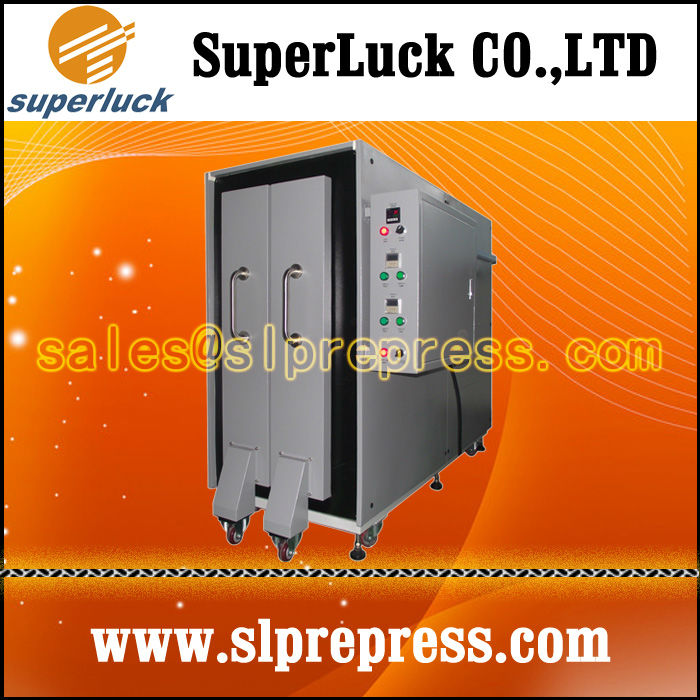

Printing Plate Baking Oven
US $1000.00-8000/Piece
1 Piece
Shanghai
500 Piece/Pieces per Month
T/T,Western Union,e credit line
You can manage your favorites in member center.
Favorites
Basic Info
- Condition:
- Type:
- Automatic Grade:
- Place of Origin:
- Brand Name:
- Model Number:
- Voltage:
- Power(W):
- Dimension(L*W*H):
- Weight:
- Certification:
- Warranty:
- After-sales Service Provided:
Product Description
Specifications
1) Automatic homothermal control2) Uniform temperature
3) Heat insulator assures fast warming-up.
Why Choose US?
As professional manufacturer land in China, Superluck has been producing Prepress equipment for more than 15 years and all of our prepress machines are popular worldwide. By comparing with the famous prepress brands, Superluck is Common, but we give better service than them. By comparing with those cheap price suppliers, Superluck is higher, but we promise clients' cost worthy. We trust every client is unique and special, but we cannot provide more except the considerate attention. We are here day and night, servicing and protecting all clients by phone and online.
Put simply, if you want a partner who really cares about your printing business choose Superluck.
Product Function:
CTP Processor, also be called Thermal CTP Processor, UV CTP Processor, CTP Processing Machine .Superluck CTP Plate Processor is especially used to develop Thermal CTP Plates and UV CTP Plates. The whole working process contains four steps: Developing + Washing +Gumming +Baking/Drying.
Features & Spec.
1.PS plate and CTP thermal plate baking by Superluck plate baking oven multiplies the printing durability.
2.Automatic homothermal control at normal temperature to 250 degree Celcius.
3.Uniform temperature and stable cycling of hot air prevents the plate from deformation.
4.Stainless steel framework without any vitiation to the plate.
5.Heat insulator assures fast warming-up.

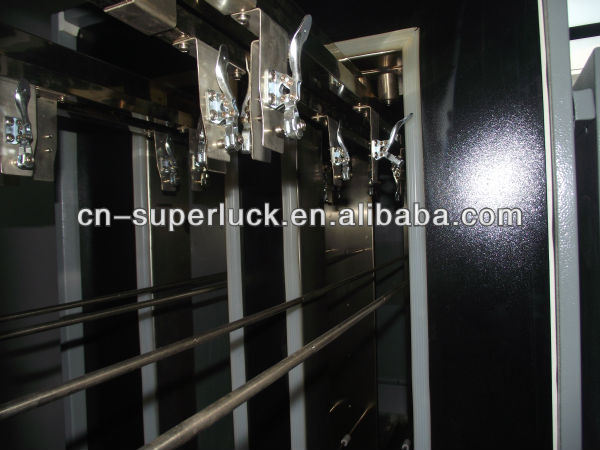

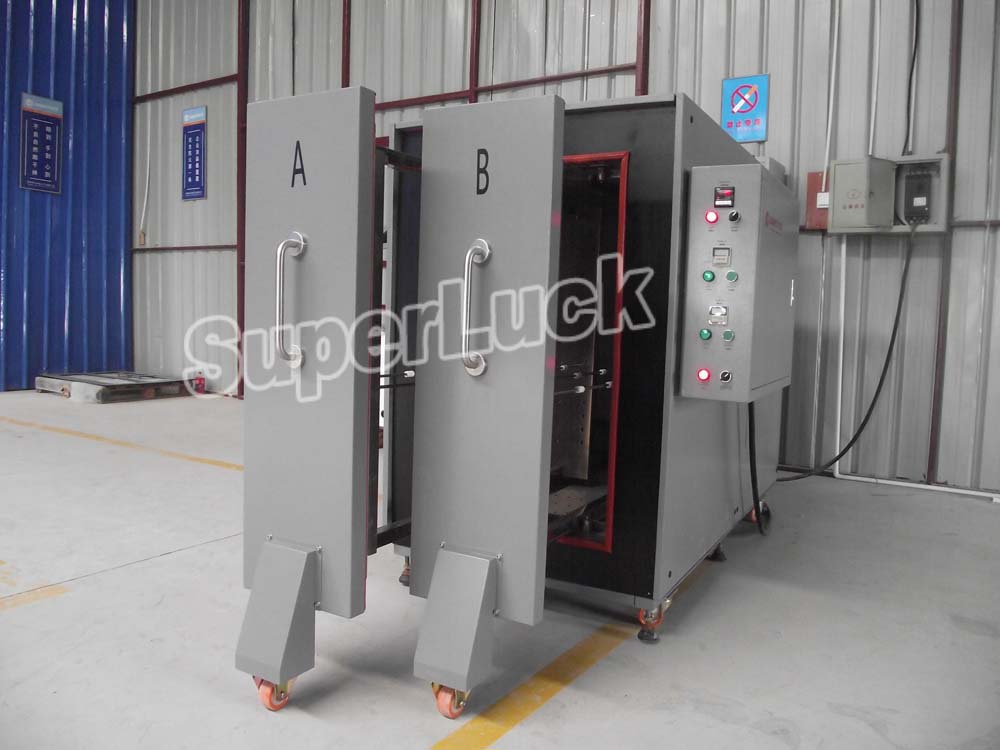

6.Upstanding double plate drawing framework reduces heat bleeding, thus saving energy.
7.Accordant with the polycolor precision of chromatic printing.

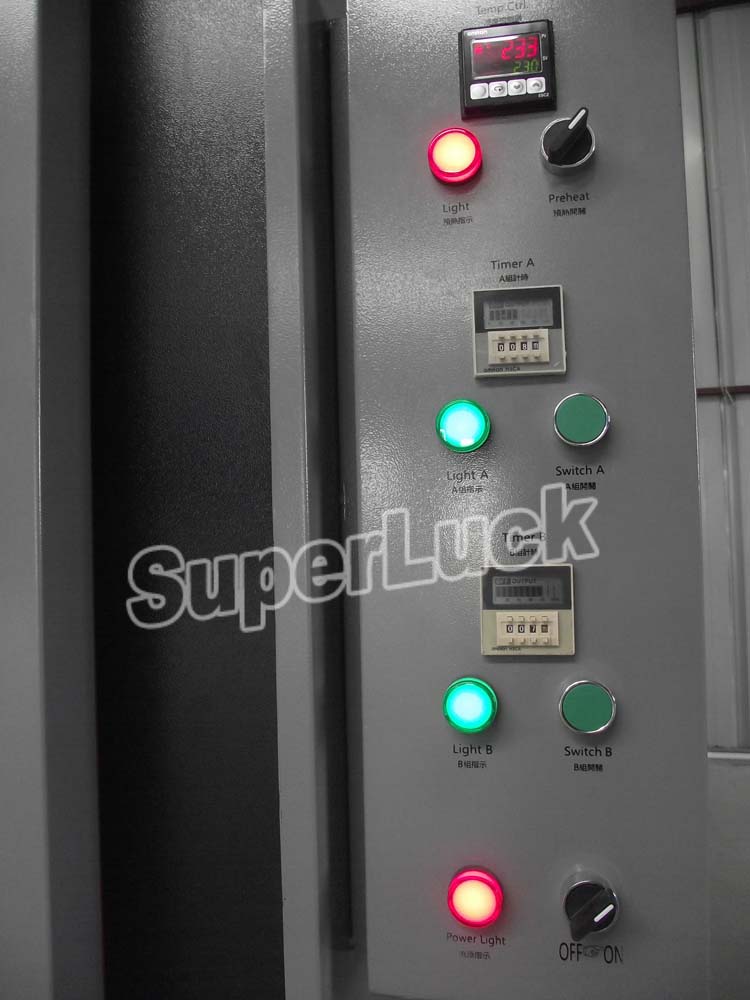

8.Automatic timing device eliminates manual error and assure good quality of baking.
9.Custom-designed for any size.
Model | SL-800K | SL-1100K | SL-1300K |
Plate area (mm) | 1100×800 | 1400×1100 | 1600x1260 |
Placement quantity(page) | 8 | ||
Electro thermal temperature | Adjustable, 20-250 degree C | ||
Baking time | Adjustable, 0-999 mins | ||
Power supply | 380V 3 phase 50/60Hz 20A | ||
Power | 8KW | 12KW | 20KW |
Mechanical size(mm) | 2200×950×1500 | 2500×1200×1720 | 2500x1300x1950 |
Net weight(kg) | 560 | 600 | 700 |
Gross weight(kg) | 620 | 660 | 760 |

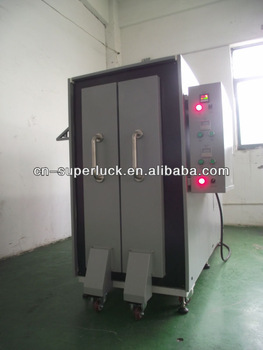

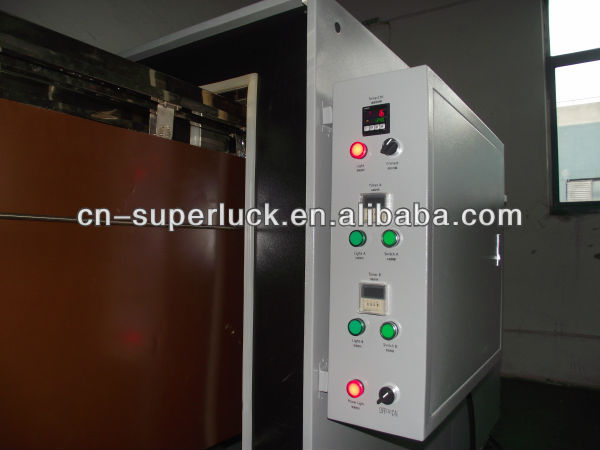

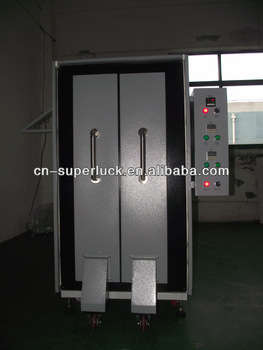

Video& Photo
Superluck machines' video are available on Youtube: please search these words "superluck offset prepress" or contact our online services for links.
Clients Visit
Printing Expo.

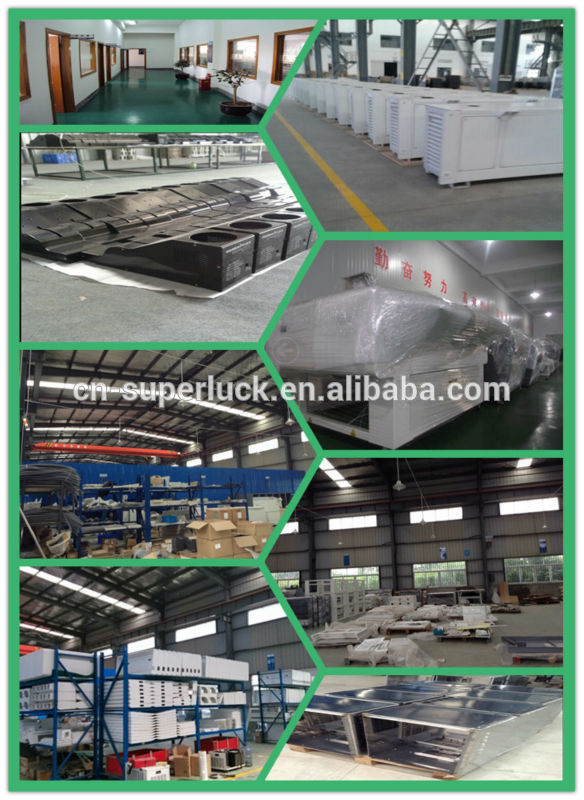

Superluck Plant
Trouble Shooting
Question:
The plates after baking turned into half plates green while the rest half plates are yellow, how can deal with it?
Answer:
1) It's common for the plates not so smooth as new plates after baking, but just a little, it will not influence the printing effects. If the the plates are quite much out of shape, it proves there is something wrong while installation.
2) Turn on the machine, then pull one baking box, if there is wind blowing, it proves the machine has been installed correctly.
3) Check the fan's moving direction, only the leftwards wind direction is correct, if the fan works in wrong direction, it will happen that only the small portion near heat sensor gets heating but no heat for the surroudings, just like you described that only about half are yellow, while the rest are green. It's easy to solve the problem of fan's wrong direction, you are supposed to change random two power lines among the tree lines: L1, L2, L3. It means just need to change the place of two lines, such as, L1 and L2, or L2 and L3. Try it and then check the fan's working direction again.
