Printing Plate Processor
US $1000.00-8000/Piece
1 Piece
Shanghai
600 Piece/Pieces per Year
T/T,Western Union,e credit line
You can manage your favorites in member center.
Favorites
Basic Info
- Condition:
- Type:
- Automatic Grade:
- Place of Origin:
- Brand Name:
- Model Number:
- Voltage:
- Power(W):
- Dimension(L*W*H):
- Weight:
- Certification:
- Warranty:
- After-sales Service Provided:
Product Description
Specifications
1) Offset Printing Plate Processor2)Printing Plate Processor
3) Plate Developing and Washing Machine
4) OEM sell directly
Features:
1. Exquisite slant body of Superluck PS plate processor.
2. Precise and reliable Mitsubishi PLC control system.
3. Strong and durable PVC tank, acid and alkali proof.
4. Convenient discharge of the bearing seat for the maintenance roller to ensure durability of Superluck PS plate processor.
5. Main driving system lies in the left side of Superluck PS plate processor. Gear driving assures of smooth driving and easy maintenance.
6. Water and power saving. Environmental-friendly washing mode: Inner circle washing mode and tap water washing mode for option.
7. Latent developing structure to ensure sufficient development.
8. Automatic gumming, washing and recycle of gumwater.
9. Corrosion-resist and anti-ageing gumming roller.
10. Double washing function makes it easy to wash and gum after revision of the plate.
11. With reverse function, it is easy to make emergency operation.
12. Superluck P series plate processor is compatible with automatic stacker and filtration system.
Specification:
| Model | SL-90P | SL-105P | SL-120P |
| Material | positive and negative PS plate | ||
| Capability | 400-1400mm/min | ||
| Width of Plate | 900mm | 1050mm | 1200mm |
| Depth of Plate | 0.15-0.4mm | ||
| Tank Content, dev | 24L | 32L | 40L |
| Tank Content, wash | 11L | 15L | 18L |
| Developing Temperature | 18-40 degree C (cooling system is optional) | ||
| Drying Temperature | 35-55 degree C | ||
| Developing Time | 15-40sec (from the inlet of plate to the outlet of plate) | ||
| Water Source | tap water, Min. water pressure 1bar/15psi | ||
| Water Consumption | tap water 7L/min | ||
| Circulating water | 200ml per square meter | ||
| Diameter of Gumming Roller | 40mm | ||
| Developing Replenishment | 0-250ml per square meter | ||
| Developing Warm-up Time | from 18 to 40 degree C within 30min | ||
| Level Adjustment | adjustable | ||
| Power Supply | 50-60Hz 220V single phase | ||
| Power | 3KW | ||
| Voltage Fluctuating Range | within 10% | ||
| Gross Weight | 300kg | 400kg | 500kg |
| Net Weight | 235kg | 350kg | 420kg |
| Packing Size(mm) | 1600×1500×550 | 1800×1700×750 | 2000×1950×950 |

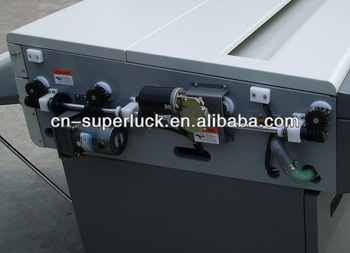

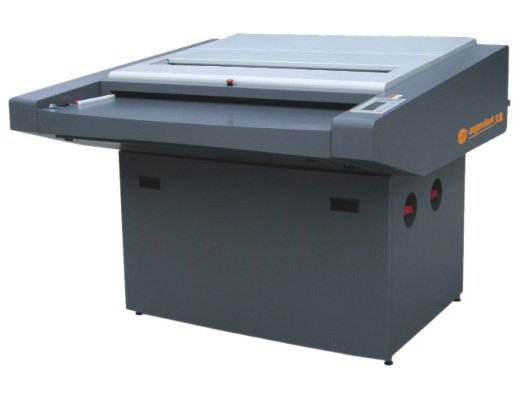

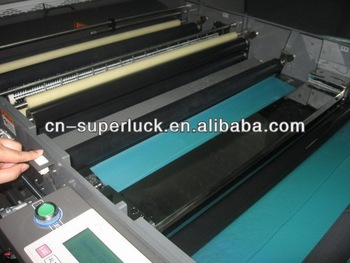

Picture Show:
