Honeycomb PC sheet, PC sheet

FOB Price:

Min.Order:

US $3.50-4.5/Kilogram

500 Kilograms

Get Latest Price>

Port:

Qingdao Port in China

Production Capacity:

5000 Kilogram/Kilograms per Day

Payment Terms:

T/T

Contact Now Start Order

You can manage your favorites in member center.

Favorites

Basic Info

Place of Origin:Shandong, China (Mainland)
Brand Name:Xinxing
Model Number:SDXXHG2038
Material:PC
Thickness:3.8mm-30mm
Size:6000*2100mm
color:customized polycarbonat sheet many colors are available
product:frosted polycarbonate sheet
material:virgin lexan
package:PE film one side
width:2100mm maximum
Property:UV coated

Product Description

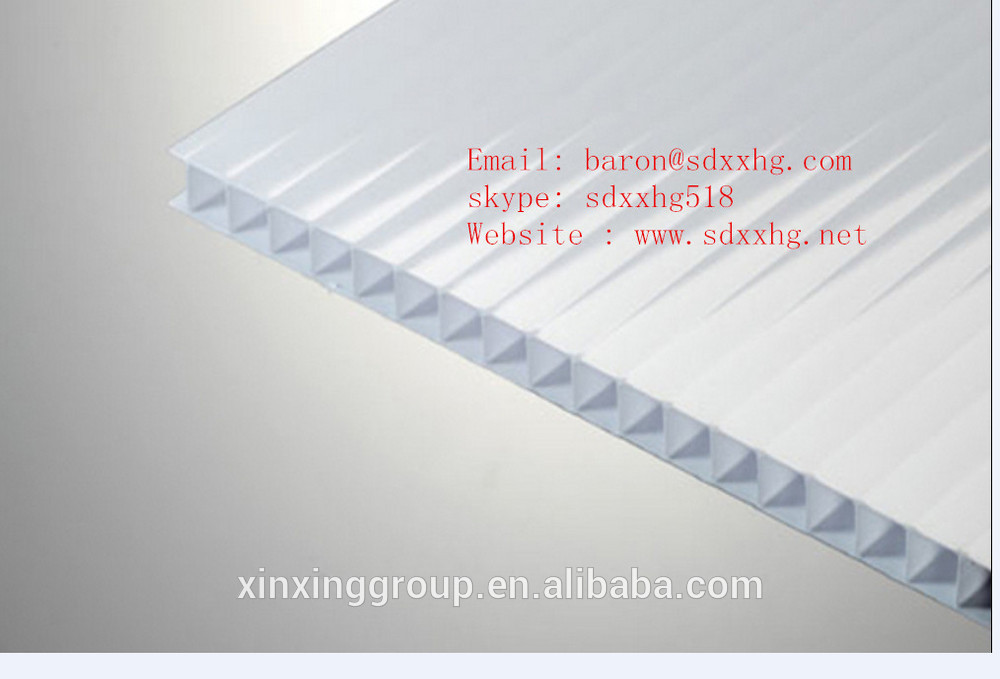

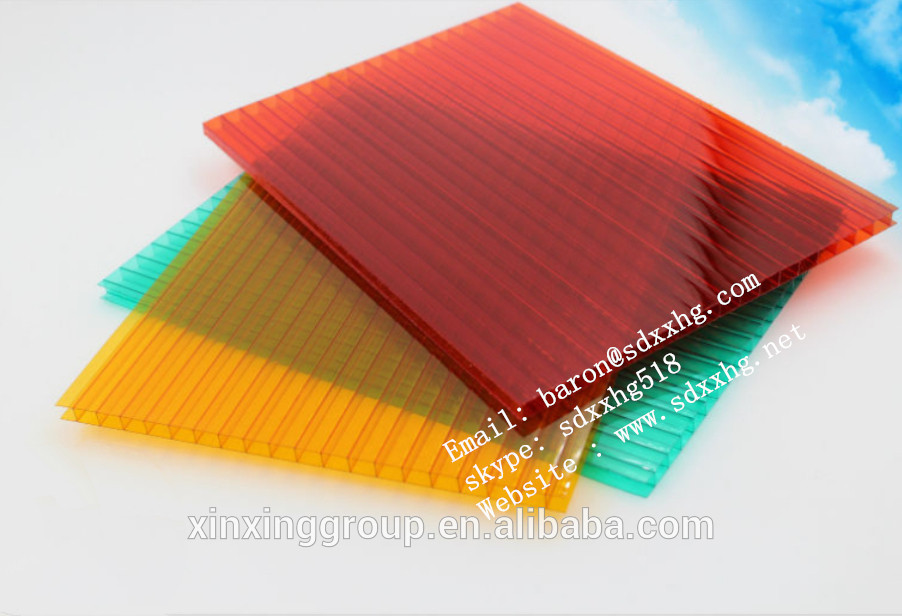

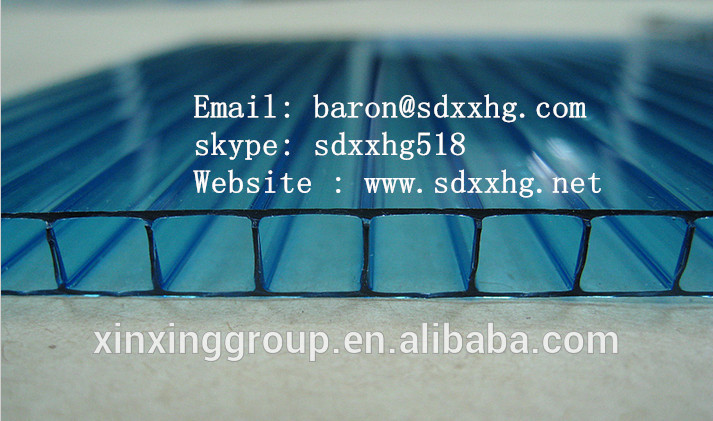

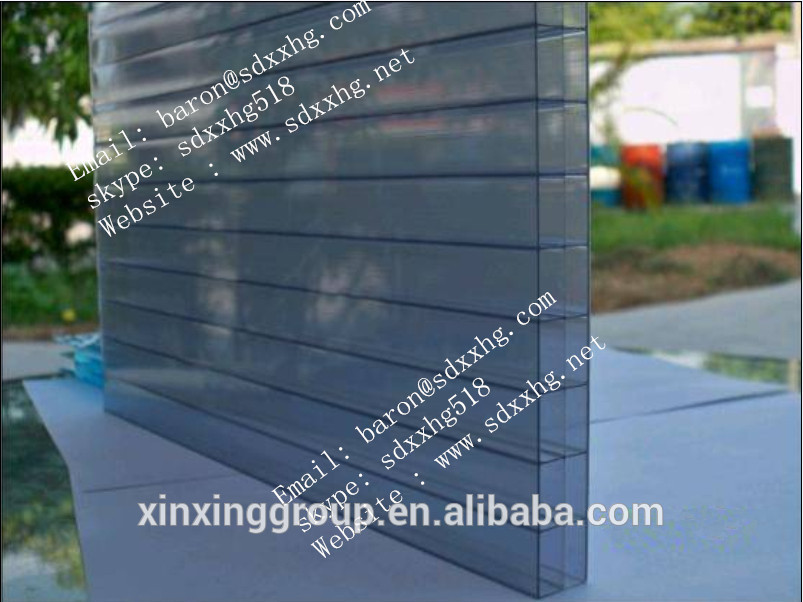

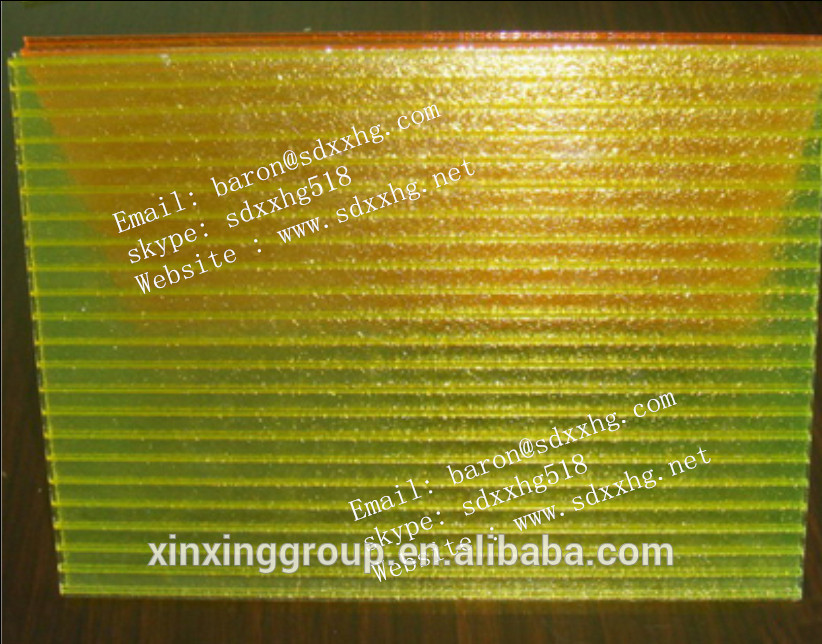

Honeycomb PC sheet

(1) Brief introduction for good quality Honeycomb PC sheet

Thickness: 0.8mm to 16mm
100% virgin Bayer/Sabic material
UV protection(One side or two sides)
10-year warranty
Certificate :ISO9001:2008, ROHS , SGS
High quality & competitive price
Color: clear, green, blue , light blue , brown , opal , red , yellow .
Delivery time :7-10days for 1*40FCL .
Payment : T/T , LC , CASH .

(2) Honeycomb PC sheet Advantages:

1) Long service life time.

2) Stronge structure.

3) High heat insulation performance.

4) Good sound insulation performance.

(3) Honeycomb PC sheet Standard size :

Normal Width:950-2100mm

Normal Length: 5800mm, 6000mm , 11800mm

For large order , color and size can be customer made.

Thickness(mm)	Structure	Weight(g/sqm)	Min.Bend Radius(mm)	K value (W/M2K)
4	2-layer	850	700	4.1
5		1000	875	3.8
6		1300	1050	3.6
8		1500	1400	3.3
10		1700	1750	3
6	3-layer	1400	1050	3.4
8		1600	1400	3.2
10		2000	1750	2.7
12		2100	2100	2.6
14		2400	2450	2.4

(4) Honeycomb PC sheet features

General Polycarbonate Solid Sheet has the transparency,but the weight is less than half of the glass ,and has the high impact strength .Gensin Polycarbonate Solid Sheet can be cold bend ,processed and hot molding .It is widely used in construction and decorations.

light weight
very high impact strength
Good light transmission
good weather resistance and UV protection
high heat insulation
Simply processed and installed
UV protection layer: 50um
soften temperature :148°C
continuous use temperature :-40 ~120°C'
certificate by ISO9001:2000,ROHS , SGS

(5) Honeycomb PC sheet application

1) Advertising box

2) Commercial lighting roofing

3) Plant roofing

4) Warehouse lighting roofing and wall

5) Stadiums roofing

6) Swimming pool roofing

7) Carport and awnings

8) Sound barrier

9) Indoor partition

10) Indoor ceiling etc

Shandong Ningjin Xinxing Chemical Co.,Ltd also can offer UHMW-PE sheet, Marine fender UHMW-PE pad, Outrigger pads/Crane mats, HDPE sheet/ rod, TRACK MATS ground protection, UHMW-PE chain guide, CNC machined UHMW-PE wear part, UHMW-PE liner, Cutting board, Paper machinery dewatering elements, Safety yellow trailer plates, UHMW-PE dock bumpers, UHMW-PE Drag flights, UHMW-PE Pulley/roller, PVC (polyvinyl chloride)sheet, Nylon sheet/rod PTFE sheet/rod, PP (polypropylene)sheet, track pad for milling machinery/excavator

machined PE plastic part

Marine rubber fender PE facing pad

Mobile crane PE outrigger pad

HDPE ground mat/road plat/ground protection mat

Company Name: Shandong Ningjin Xinxing Chemical Co., Ltd
Address: Liaohe road, Ningjin Industrial zone, Dezhou City, Shandong Province, China
TEL: 86-0534-5222377
FAX: 86-0534-7074626
skype: sdxxhg518
Website : www.sdxxhg.net
