Home > Transportation > Truck > Truck Parts > UHMW PE PAD PE flat pad UHMW PE Block Fender pad
UHMW PE PAD PE flat pad UHMW PE Block Fender pad

0+

US $3.6

0+

US $3.5
Get Latest Price>

Qingdao

6000000 Kilogram/Kilograms per Year

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal: amily@sdxxhg.com

Contact Now Start Order
You can manage your favorites in member center.
Favorites

Basic Info

  • Place of Origin:
  • Brand Name:
  • Model Number:
  • Material:
  • Thickness:
  • Size:
  • Density:
  • Hardness (Shore D):
  • Tensile strength at break:
  • Notched izod impact strength:
  • Abrasion wear:
  • Melting Temperature:
  • Tensile strength at yield:

Product Description

Product Description

UHMW PE PAD PE flat pad UHMW PE Block Fender pad

UHMW PE PAD PE flat pad UHMW PE Block Fender pad

UHMW PE PAD PE flat pad UHMW PE Block Fender pad

UHMW PE PAD PE flat pad UHMW PE Block Fender pad is commonly used for marine and port construction applications, for example:
low resistance sliding pads on fender panels
low resistance slinding panels for bridge and pier protection
corner protection for offshore structures, berths and other marine facilities

UHMW PE PAD PE flat pad UHMW PE Block Fender pad


UHMW PE PAD PE flat pad UHMW PE Block Fender pad allow vessels to glide easily along the surface, protecting hulls and dock structures. Doesn't mar ships, "grabbing" like rubber or wood. Sheds mussels and barnacles with minimum cleaning. Impervious to marine bore worms.

1. Wear-Resistant Surface

UHMW PE PAD PE flat pad UHMW PE Block Fender pad outwear hardened steel. Cuts hour-glass wear on pilings from vertically moving "camels".

2. Nil Water Absorption. UHMW PE PAD PE flat pad UHMW PE Block Fender pad no swelling or deterioration from water permeation.

3. Chemical- and Corrosion-Resistant.UHMW PE PAD PE flat pad UHMW PE Block Fender pad withstands salt water, fuel and chemical spills. Chemically Inert does not leach chemicals into waterways, disturbing fragile ecosystems.

4. Performs in Weather Extremes.Sub-zero conditions do not degrade performance. UHMW PE PAD PE flat pad UHMW PE Block Fender pad retains key physical properties to -260 centigrade. UHMWPE material is UV-resistant, which increases wear life in seaport exposures.

Details of UHMW PE PAD PE flat pad UHMW PE Block Fender pad

Material
UHMWPE High Molecular Polyethylene sheet/plate
Place of Origin
 Shandong, China (Mainland)
Molecular Weight
 3-9 million
Method
moulded
Color
black/white/yellow/blue/red/orange or as request
Advantages
1.very flat on the surface

2.The thickness tolerance is +2 -0,some made according to your requirements.

3.The color is pure and any color can be made by us.

4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.

5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.

6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.




How to process marine fender panel?
All the process are made in our factory.Every process will promise the high quality.To make a sheet will need 5-6 hours.

1.making UHMWPE sheet.

2.the sheet finished

3.clean the sheet

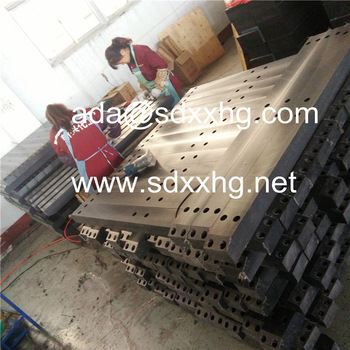

4.cutting to size and drill holes

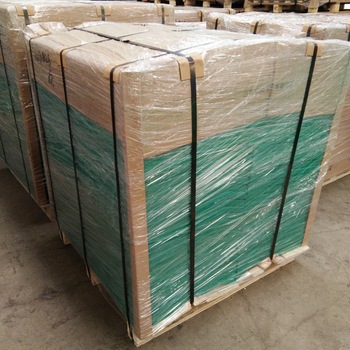

5.packed into pallets

UHMW PE PAD PE flat pad UHMW PE Block Fender pad

UHMW PE PAD PE flat pad UHMW PE Block Fender pad HT quality - regenerate (typically in black/multicoloured)

UHMW PE PAD PE flat pad UHMW PE Block Fender pad quality - virgin (available in a number of colours)
UHMW PE PAD PE flat pad UHMW PE Block Fender pad quality - anti static - specifically for hazardeous areas, eg LNG terminals
UHMW PE PAD PE flat pad UHMW PE Block Fender pad quality - UV-stabilised

Size of UHMW PE PAD PE flat pad UHMW PE Block Fender pad

  Length mm
Width
Thickness
5040
1330
5-260
4730
1230
5-260
3050
1220
5-260
6050
1820
5-260
3030
1550
5-260
4520
2000
5-260
6000
2000
5-260
Any size will be made as request.The length is infinite

Properties of UHMW PE PAD PE flat pad UHMW PE Block Fender pad


Property
Unit
Value
Density
g/cm3
0.93-0.96
Average molecular weight
g/mol
3million- 10 million
Tensile strength (23°C in air)
MPa
22
Breaking strength
MPa
42
Tensile strain at break
%
600
Charpy impact strength (notched)
mJ/mm2
No break
Ball indentation hardness
N/mm2
42
Shore hardness
--
65-70
Abrasion
%
70-80, steel = 100
Static Friction Coefficient
≤0.16
Kinetic Friction Coefficient
≤0.10
Water Absorption
NIL
Elongation at break at 23°C
%
≥300
Melt Temperature
°C
130-140
Temperature Resistance
°C
-269 to +85

Application of UHMW PE PAD PE flat pad UHMW PE Block Fender pad


UHMW PE PAD PE flat pad UHMW PE Block Fender pad

UHMW PE PAD PE flat pad UHMW PE Block Fender pad

UHMW PE PAD PE flat pad UHMW PE Block Fender pad

Related Products

UHMPE dock bumper pads

Size is 5040*1330mm, 4730*1230mm, 3040*1220mm, 6050*1820mm, 6050*2000mm, 3030*1550mm, 4520*2000mm

UHMPE dock bumper pads

Thickness is 10-260mm

Color is white,black,yellow,red,green....
Packing & Delivery

Shipping

pallets ,wooden case or as request

about 15-30 days

Container

packed into rolls.5-10m/roll

Our Company

Shandong Ningjin Xinxing Chemical Co.,Ltd

Address:Liaohe Street,Dezhou City,Shandong Province,China.
Zip code:253400
Contact Phone Number:86-13181374731    86-18653409198

Shandong Ningjin Xinxing Chemical Co.,Ltd. is one of the largest Engineering Plastic products manufacture in China.
We have a wide variety of products, mainly including all kinds of UHMW-PE Fender Pad ,UHMW-PE Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products.


UHMWPE application

Xinxing other UHMWPE products

Xinxing mager in engineering plastic sheets/rods/CNC machined parts.

Other products are UHMWPE/HDPE sheet/board/plate,

UHMWPE marine fender pad,

UHMWPE guide rail,

UHMWPE suction box cover,

UHMWPE jack pad,ground mats,

UHMWPE liner,

UHMWPE synthetic ice for ice rink.

HDPE ice rink barriers/hockey boards

UHMWPE sheets can do CNC machine process


The UHMWPE can do wear blacks,scraper blades,
port crane roller


Welcome visiting
