wear resistance uhmwpe engineering plastic sheet/CNC sharp UHMWPE strip

UHMW conveyor roller chain guides polyethylene conveyor chain guides

aluminium accessories slide rails guide rail

uhmwpe polyethylene plastic conveyor roller chain guides

PE conveyor guide rail UHMW curved track hdpe slide track

PE conveyor guide rail UHMW curved track linear plastic guide way

Plast Chain Guide curves conveyor chain guide plastic guide

Guide rail was designed in response to demands from the packaging and material handling industries that require exceptional frictional and resistant properties. And it provides effective protection for expensive conveyor systems, especially in wet and corrosive environments.

We offer a wide variety of custom designed UHMW-PE chain guide that meet client specifications. Each one of them is made-to-order utilizing WM’s top of the line fabrication equipments. Those guide rails provide high abrasion, low coefficient of friction, high impact of resistance, and excellent chemical resistance. Their unique characteristics help conveying systems operate with minimal wear and extended life.

I. Key Features:

1.Cost effective alternative

2. High abrasion resistance

3. Low dynamic coefficient of friction

4. Good noise damping properties

II. Applications:

1.Chain guides

2. Wear curves

3.Bearing surface

4. Belt guides

PE Conveyor guide rail Products Available:

Modular plastic conveyor belts

Conveyor components

Sprockets and idlers

Bearing supports

Levelling pads

Structural components

XINXING CHEMICAL Offers a combination of excellent machinability and low surface friction with outstanding wear and corrosion resistance. FDA & USDA approved, REDCO HDPE reduces material hang ups and enhances material flow; increasing your production and your profits.

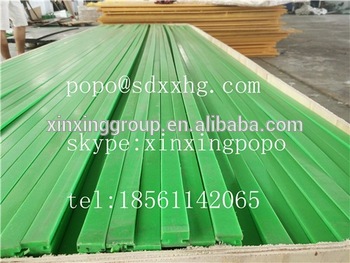

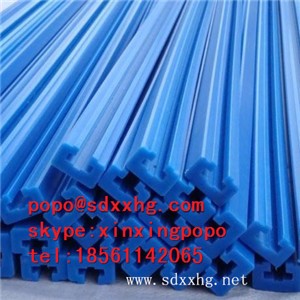

PE Chain Guide Track Rail:

HDPE track rails is one of our new products, it has all the advantages of PE, and its good condition made

PE track in conveyor track, protective curve track, ect. And we have developed many types PE track ,

all available in several grades of UHMW plastic. HDPE chain guides extend chain life, reduce noise and friction.

You can order them in standard sizes, or have a custom order.

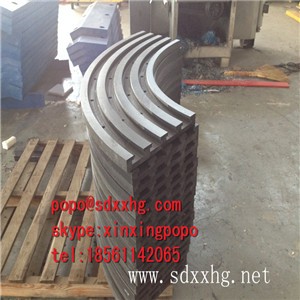

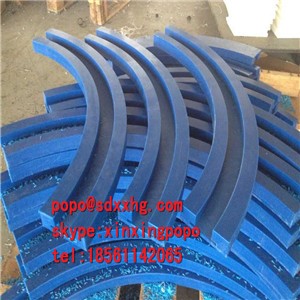

The canning, packing and bottling industries often utilize our conveyor components for their ease of use, compatibility with

other European suppliers, resistance to abrasion and lownoise properties. Machined tracks offer a convenient and easy

way to guide side flexing chain around a corner. Made from Virgin HDPE they have a low coefficient of friction, silent

operation and permit high speed lines.

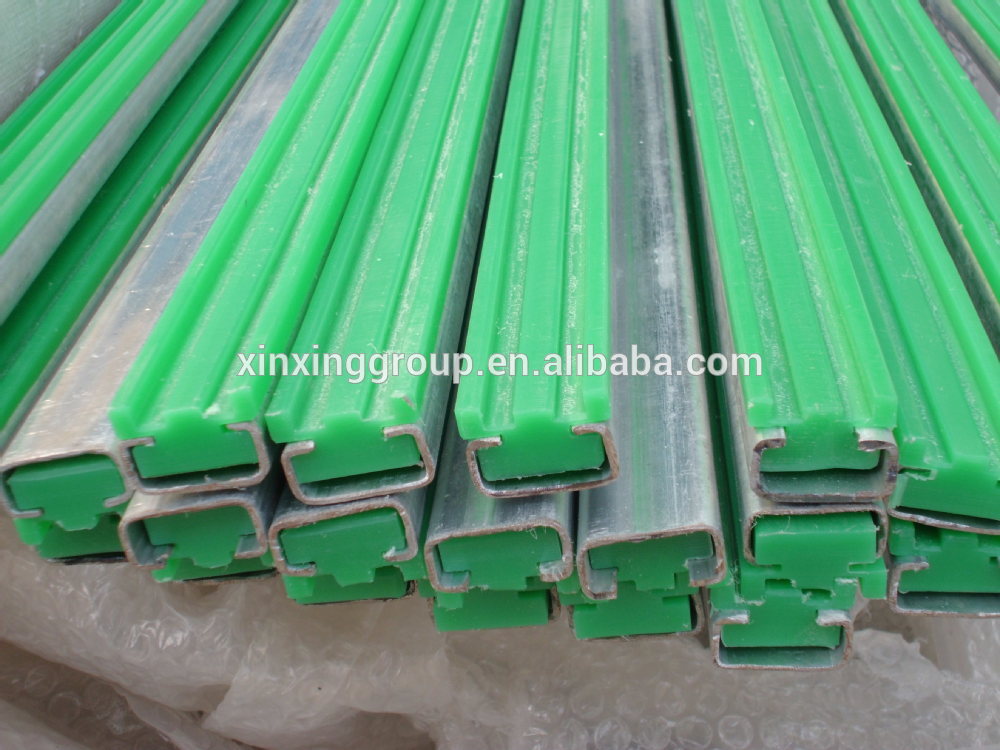

PE guide rail PE Polyethylene guide rail:

HDPE is an engineering plastic that is often underestimated and although HDPE is popular, it is sometimes confused with other engineering plastics. HDPE is a shortened name for High Density Polyethylene and available in two main grades, 300 and 500 grade. The higher the HDPE grade number the higher the density of the plastic is which improves the performance of the product.

HDPE offers resistance to almost all acids and bases, detergents and hot water. HDPE is an excellent engineering plastic that has many unique and useful properties to offer users who need a varied and combined range of beneficial features

XINXING guide rail is made of PE material

Because PE material has the following advantage :

--Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel

--Do not absorb moisture and will not swell up over time due to exposure outdoors.

--Good impact intensity,Do not lose their impact strength over time.

--Good breaking elongation,so they will bend but not break under extreme loads.

--Non-stick surface, easy to clean.

--Corrosion and chemical resistant.

--Noise- absorption, Vibration-absorption

--Super compression strength

--15 Percent the weight of steel pads and easier to handle

--Compressive loads up to one million pounds

--Up to 15,000 pounds per square foot

--Non-Conductive

--Non-Toxic and smell

 The properties of UHMW-PE guide rail:

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore D hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23 degress	%	≥300
Temperature resistance	°C	-269 to +85
Melt Temperature	°C	130-140

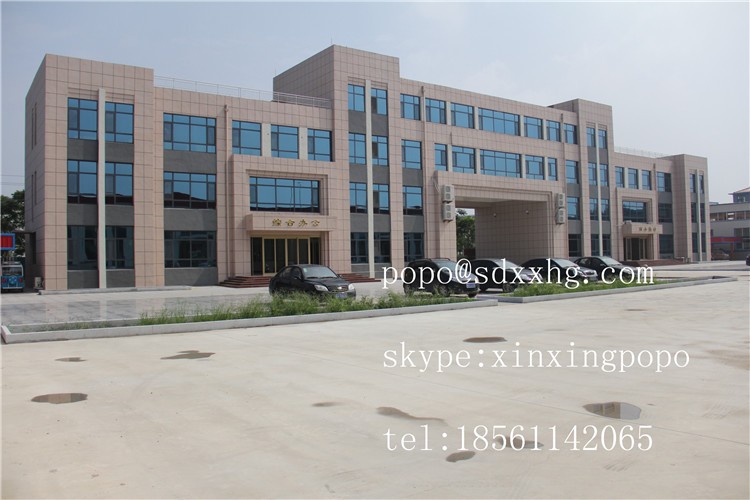

Our Company Introduction:

Shandong Ningjin Xinxing Chemical Co.,Ltd. is the leading professional Engineering Plastic products manufacture in China which specialized in producing UHMWPE and HDPE products according to the requirement from customers. XINXING has been specializing in this area since 1995, and the products are selling in more than 30 countries and area, such as North America, Europe and Southeast Asia and so on.

In the recent years,XINXING become the one of the largest UHMWPE Products manufacture in the world.







XINXING Certification





Our Products Range:

 Track Guide Rail

 guide track rail

 Conveyor Chain

 track rail guide

 UHMW plastic Conveyor Chain

 Conveyor guard rail chain

 Plastic chain conveyor slide rail

 uhmwpe guide rail

 chain guide rail

 hdpe guide rail

 corner track

Our Sheet Standard Sizes:

Length(mm)Width(mm)Thickness(mm)

2000        1000        6-300

3000        1500        6-300

4700        1200        6-300

5000        1300        6-300

4500        2000        6-300

3050        1220        6-100

Any small size need us to cut , we can satisfy your special need.



Many thanks for you to visit us!
