UHMW-PE sheet,HDPE Sheet,Ground protection mat,Temporary road mat,Crane outrigger pads,dasher boards
US $2.60-5.5/Piece
10 Pieces
Qingdao,or any Chinese port
100000 Piece/Pieces per Month
L/C,D/A,D/P,T/T,Western Union,MoneyGram
bottom price uhmwpe bars for conveyor belt impact bed
2015 impact blow bar of crusher factory price
hot selling impact blow bar of crusher factory price
uhmwpe 50mm solid bar
rigid uhmwpe bar
uv resistance uhmwpe bar
durable impact bed
unique trendy hot sale high chrome impact bar
An impact bar is a special mechanical device that distributes the load of an impact over a wide surface area. The bar is made with a special rectangular design that forces any impacted weight to be distributed of the entire surface area of the bar. These types of bar designs are often used in safety equipment for automobile doors, bumpers, and roll cages. They are also used as weight support for conveyor belts.
Many cars and trucks include impact bars throughout the passenger compartment. These safety devices enclose the occupants with bars in the doors, bumpers, and roof. The bars make the car safer for collisions and rollover accidents.
An automobile bumper is typically based on an impact bar design. Bumpers reduce damage to the car and occupants by limiting the explosive effects of a collision. The bar has in internal rectangle cut-out area that is designed to spread the load of impact across the entire beam. This makes it easier to support heavy loads during crashes.
Impact bars are available in many types of material. The most frequently used are rubber, metal, or hardened urethane. The type of material determines the weight and distributed load the barcan support. An impact bar made from hardened urethane is considered one of the most durable because it is more resistant to wear.
Why Choose Us
l More than 15 years' professional manufacturing experience with own factory.
l Virgin 100% material produced, high quality with good surface and color make ensured
l GB/T 19001-2008 ; ISO 9001:2008 certification.
l Competitive price, In stock, Fast delivery, and Excellent service.
l OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
The properties of UHMW-PE Impact bars
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- |
≤0.16 |
Kinetic Friction Coefficient | -- |
≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Our UHMW-PE impact bars Characters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.
5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
UHMWPE Advantages & Key Features:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
--Easy Reprocessed
FEATURES |
|
IMPACT BAR TECHNICAL DATA |
Item | Index | ||||
Normal | High Elastic (H) | Flame Retardant (S) | |||
Rubber Hardness (Shore A) | 60±5 | 50±5 | 60±5 | ||
UHMWPE Color | Blue | Blue | Brown | ||
Coeffi cient of Surface Friction for UHMWPE | 0.07 | 0.07 | 0.10 | ||
Surface Resistivity (Ω) |
|
|
| ||
Flame Resistance Ability (Combustion by Alcohol Burner) |
|
| Average test time by | ||
Adhesion (N/mm) ≥ | Rubber & UHMWPE: 6.0 | ||||
Rubber & “T-slot” extruded metal construction: 6.0 | |||||
Note: Flame Retardant Impact Bar--With quality approval on the “Flame Resistant and Anti-static” ability for Underground Coal Mine Industry, and got “Certificate of Qualified Products” issued by “China National Inspection & Supervision Center of Coal Mine Equipment”. |

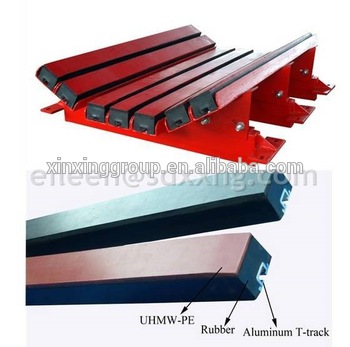

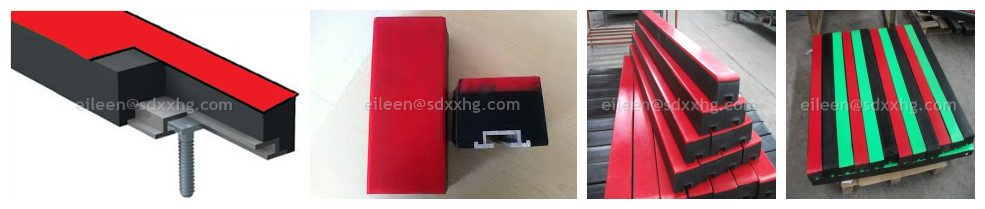

Our UHMW-PE impact bars standard sizes:
Any small size need us to cut , we can satisfy your special need .
IMPACT BAR SPECIFICATIONS |
Type | A(mm) | B(mm) | H(mm) | UHMWPE Thickness H2 (mm) |
Impact Bars | 600 | 100 | 50,65, 75,100* | 12, |
700 | ||||
750 | ||||
800 | ||||
900 | ||||
1000 | ||||
1220 | ||||
1400 | ||||
1524 | ||||
B Type Impact Bars | B1220 | |||
B1400 | ||||
B1524 | ||||
B1600 | ||||
B1800 |
Note: Other dimensions in the diagram are respectively: C=36mm; D=17.5mm; H1=15mm. |
T- BOLT TECHNICAL DATA |
Note: Bolt size can be customised to suit individual applications. |
Packaging : pallet packing or as client need.
Other products:
XINXING can provide various UHMWPE & HDPE products with the good quality at reasonable price according to your requirement.

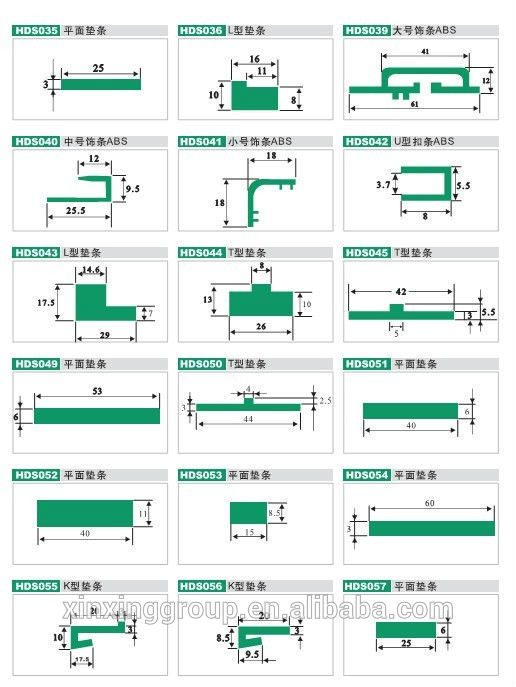

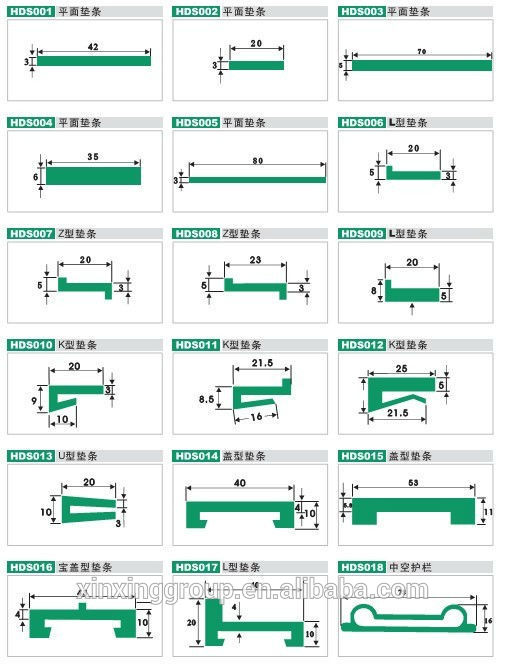

Drawings:

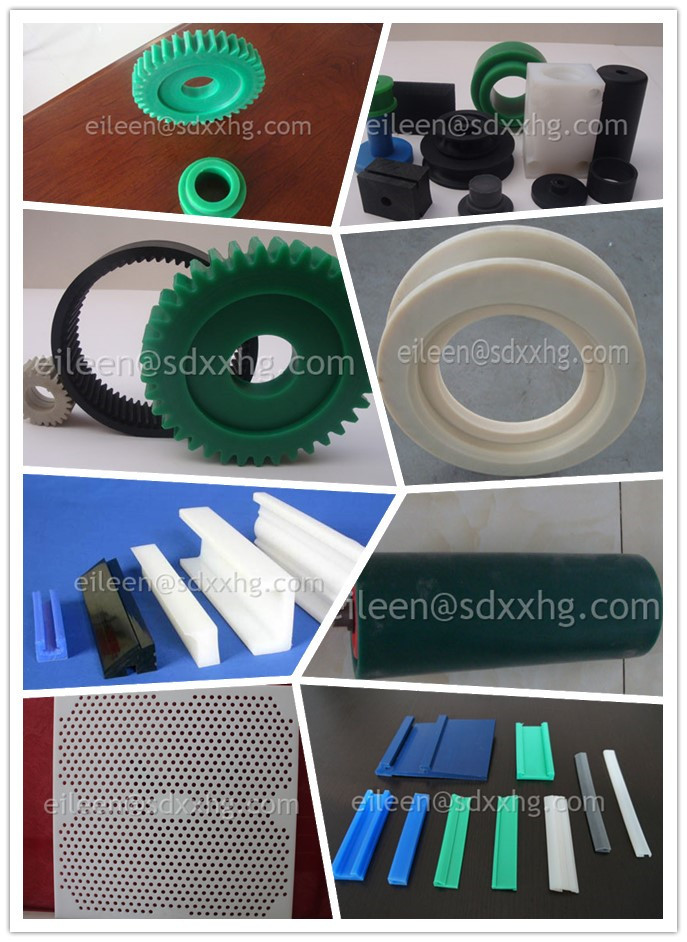

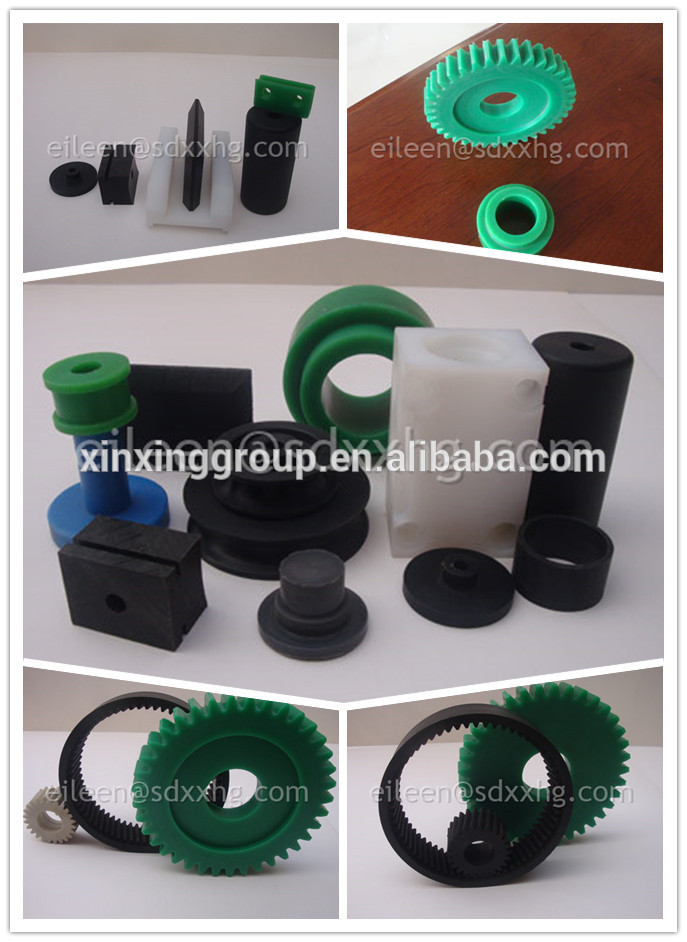

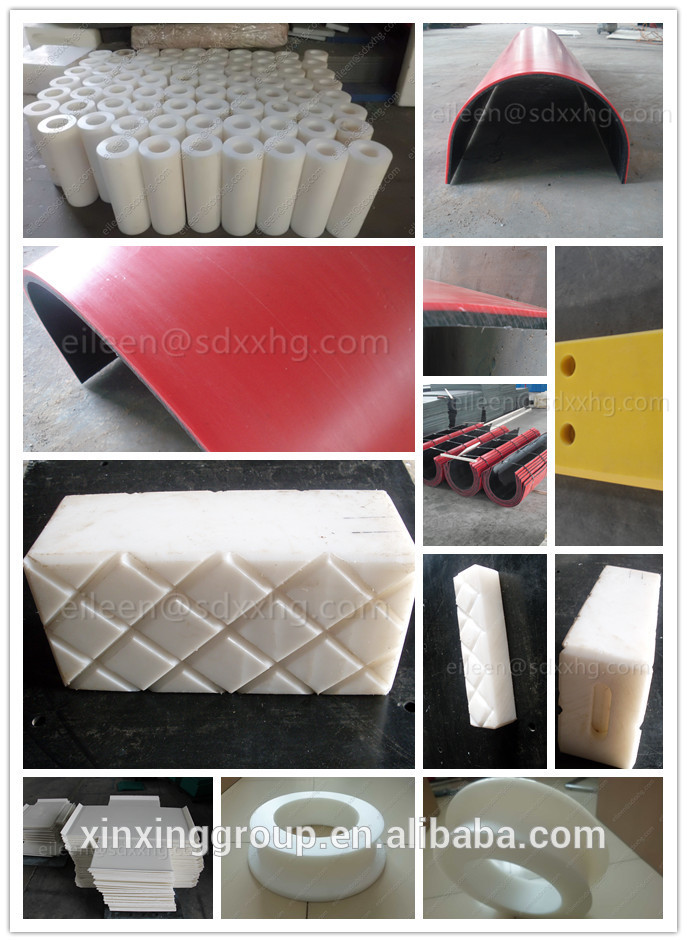

Other UHMWPE machined CNC parts:
