> Transportation > Truck > Truck Parts > excavator UHMWPE track pad , slide bearing block , cable support
US $3.00-9/Kilogram
500 Kilograms
Qingdao or Tianjin Port,China
5000 Ton/Tons per Year
L/C,T/T,Western Union,base on our cooperation
excavator UHMWPE track pad , slide bearing block , cable support
We provideUHMWPE / UPE (Ultra High Molecular Weight Polyethylene) which is a high density polyethylene of very high molecular weight, the average molecular weight is estimated in the range of 4~9 million.
UHMWPE is used in a wide variety application. Our main production areUHMWPE Rod, UHMWPE Sheet & UHMWPE Machined Parts with excellent quality and physical properties; also,in various shapes.
AllUPE Rod, UPE Sheet & UPE Machined Parts can be made in Natural White, Black, Yellow & Green color (Request on Order).
Typical Properties
· Exceptional abrasion & impact resistance.
· High Sliding & non-stick characteristic
· High chemical & weathering resistance
· Non water absorption
· Lowest coefficient of friction
· Excellent electrical properties
· Light weight
· Ease of fabrication
· Temperature range: -260°C ~ +80°C
The size that we can make :
All is available according to customer drawings
Typical Application
· Paper industry – suction box cover, doctor blade, forming plate, etc..
· Mining – lining in chute hopper.
· Chemical – pump housing, impeller

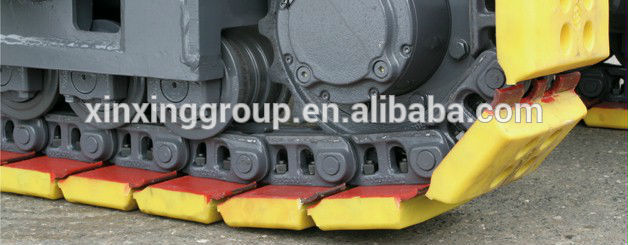

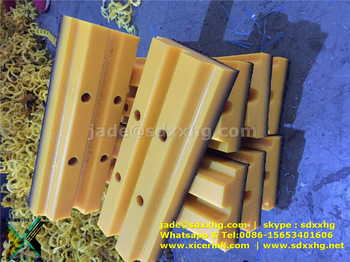

UHMWPE track pad is made of high performance plastic material -Ultra high molecular weight polyethylene (UHMW-PE). UHMW-PE has lowe friction , hing tensile strength , strong impact strength , we use UHMW-PE pad bolt on the track of excavator , it possesses very good properties of wear resistance, tear resistance and non-disintegration, etc. The adhesion between the UHMW-PE and steel plate is very strong,the replacement is convenient and the service life is long so it is suitable for various pavers and bitumen transportation trucks.
l More than 15 years' professional manufacturing experience with own factory.
l Virgin 100% material produced, high quality with good surface and color make ensured
l GB/T 19001-2008 ; ISO 9001:2008 certification.
l Competitive price, In stock, Fast delivery, and Excellent service.
l OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
The properties of UHMW-PE:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
Our UHMW-PE sheet Characters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.
5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
UHMWPE Advantages & Key Features:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800C
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
--Easy Reprocessed
Our UHMW-PE sheet standard sizes:
1.Thickness: 6- 300mm
2. Width: max 2000mm
3. Normal standard size:
Length(mm) | Width(mm) | Thickness(mm) |
2000 | 1000 | 6-300 |
3000 | 1500 | 6-300 |
4700 | 1200 | 6-300 |
5000 | 1300 | 6-300 |
4500 | 2000 | 6-300 |
3050 | 1220 | 6-100 |
Any small size need us to cut , we can satisfy your special need.

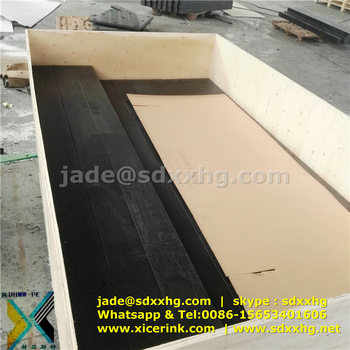

Packaging : pallet packing or as client need.
XINXING can provide various UHMWPE & HDPE products with the good quality at reasonable price according to your requirement.
Any questions, please feel free to contact us.
Many thanks!
excavator UHMWPE track pad , slide bearing , scraper blade , pipe support , cable support

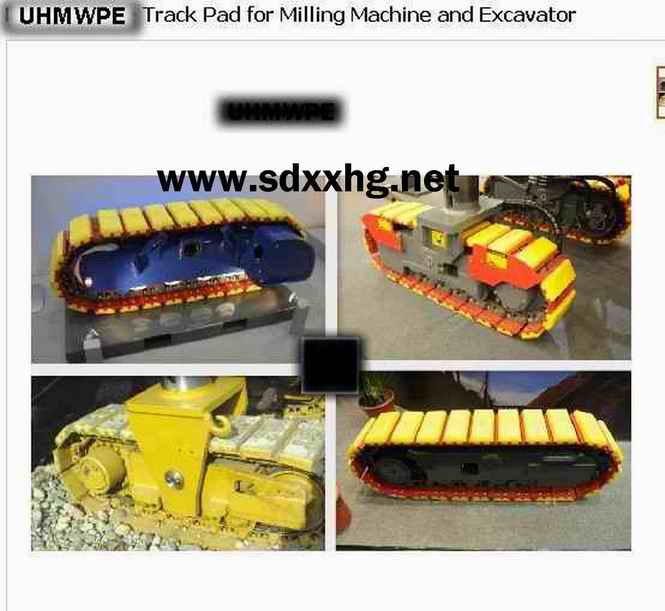

wear resistance uhmw plastic Track Pads for Cold Milling Machine and excavator
UHMWPE plastic Truck pads excavator with color
Impact resistant yellow UHMWPE TRACK PADS
Vibration absorption Yellow UHMWPE track pad
Customized yellow UHMW-PE excavator track pads
virgin excavator UHMW polyethylene plastic track pad for Milling machine and Excavator
Black excavator UHMW Track pad
Excavator UHMW track pad
Xinxing other products :
2. Double colored HDPE sheet, 3 layer HDPE board
6. TRACK MATS ground protection,
8. CNC machined UHMW-PE wear part,
11. Paper machinery dewatering elements,
Established in 1989,Shandong Ningjin Xinxing Chemical Co.,LTD is the largest manufacture of engineering plastics in China. XINXING ‘s main products in...
