UHMWPE cable support Block, pipe support, UHMWPE pipe spacer

FOB Price:

Min.Order:

US $3.00-9/Kilogram

500 Kilograms

Get Latest Price>

Port:

Qingdao or Tianjin Port,China

Production Capacity:

5000 Ton/Tons per Year

Payment Terms:

L/C,T/T,Western Union,base on our cooperation

Contact Now Start Order

You can manage your favorites in member center.

Favorites

Basic Info

Place of Origin:Shandong, China (Mainland)
Brand Name:Xinxing
Model Number:xxpe000216
Material:PE
Thickness:10-300mm
Size:cut to size as your need
Standard color:natural/blue/green/black/yellow/red/orange(other color is available )
Inspection:GB/T 19001-2008 ; ISO 9001:2008
Molecular weight:3million -9million
Breaking elongation:>300%
Impact strength:131Mj/mm2
Density:0.93-0.97
Thickness tolerance:+2 -1 (some made according to your requirements)
Abrasion:80, steel = 100
Friction Coefficient:0.12-0.15
shape:sheet/board/pad/panel/roll

Product Description

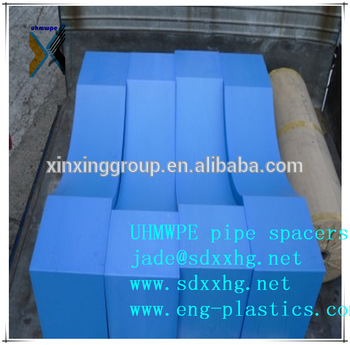

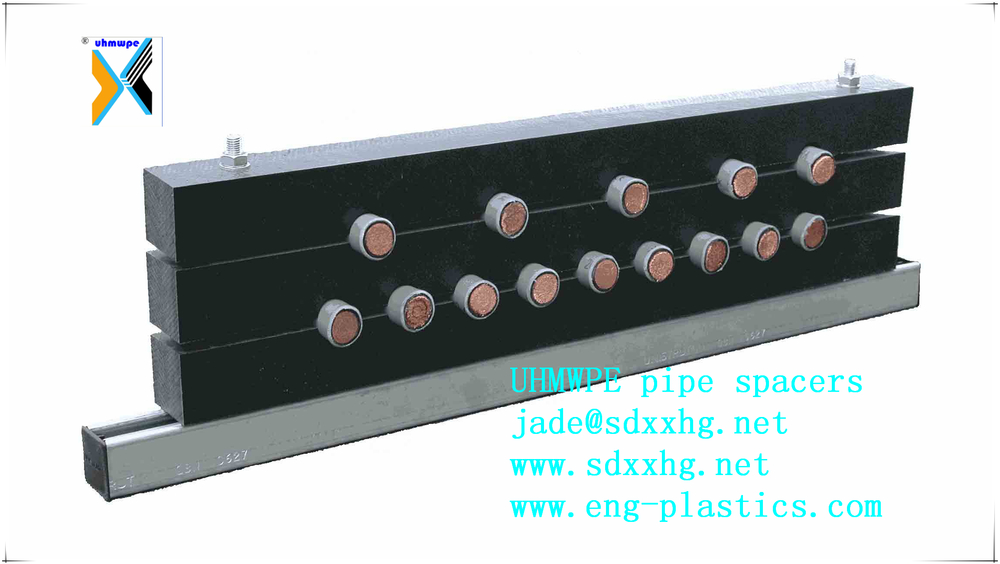

UHMWPE cable support Block, pipe support, UHMWPE pipe spacer

black color UHMWPE spacer, HDPE cable support Block, UHMWPE pipe support

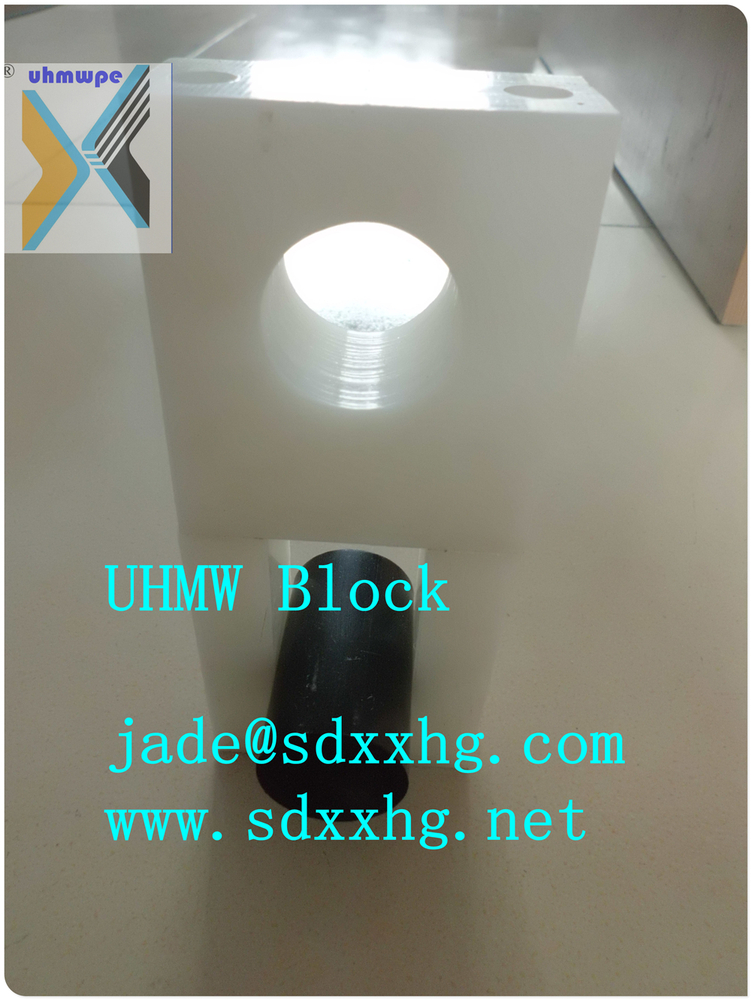

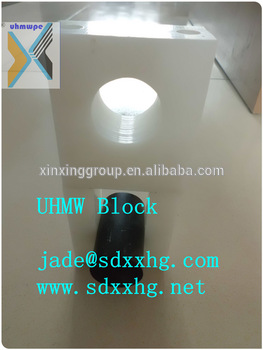

UHMWPE or HDPE Pipe support Block

Specifications

UHMW-PE plastic pipe support:
1. Wear resistant
2. Corrosion resistant
3. ISO9001
UHMW-PE plastic pipe support

We produces professionally UHMWPE or HDPE Pipe support Block

A. UHMW-PE plastic pipe support description

UHMWPE material has exceptionally low coefficient of friction offering superb sliding properties and is one of the best plastics for wear/abrasion resistance meanwhile tough and impact resistant even at cryogenic temperatures. As a result, it is definite that UHMW polyethylene is a wonderful engineering plastic that can solve many problems that other engineering plastics cannot.

B. Characteristics for UHMW-PE plastic pipe support

1. UHMW exhibits virtually no water absorption

2, Non-Toxic

3. Low coefficient of friction

4. Corrosion resistant

5. Abrasion and impact resistant

6. Wear Resistant

7. Dielectric

8. Weatherproof

C. UHMW-PE Application Areas

1. Textile Industry:

2. Chemical Industry:

3. Food Processing Industry:

4. Paper Industry:

5. Material Handling:

6. Farm Implement:

7. Mining & Metals Processing Industries:

8. Transportation:

9. Consumer Products:

10. Waste Water Treatment:

D. A parameter table for UHMWPE

Property	ASTM Test	Units Metric (US)	Typical Values
Specific Gravity	D792	gm/cm°	0.926-0.934
Tensile Strength @ Yield	D638	MPa (PSI)	21 (3100)
Tensile Strength @ Break	D638	MPa (PSI)	48 (7000)
Elongation @ Break	D638	%	350
Young's ("E") Modulus (23°C)	D638	MPa (PSI 10⁵)	690 (1.0)
Young's ("E") Modulus (-269°C)	D638	MPa (PSI 10⁵)	2970 (4.3)
Izod Impact Strength (23°C)	D256(1)	J/m (ft-LBS/in notch)	140 (30)
Izod Impact Strength (-40°C)	D256(1)	J/m (ft-LBS/in notch)	100 (21)
Hardness, Shore "D"	D2240	-	62-66
Abrasion Resistance	(2)	-	100
Water Absorption	D570	%	Nil
Relative Solution Viscosity	D4020	dl/gm	2.3-3.5
Density		(lbs./cubic in.)	.034

Packaging : pallet packing or as client need.

XINXING can provide various UHMWPE & HDPE products with the good quality at reasonable price according to your requirement.

Any questions, please feel free to contact us.

Many thanks for you visit us !
