Home > Transportation > Truck > Truck Parts > UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail
UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail

0+

US $1
Get Latest Price>

Tianjin,Qingdao

6000 Ton/Tons per Year

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal:amily@sdxxhg.com

Contact Now Start Order
You can manage your favorites in member center.
Favorites

Basic Info

  • Place of Origin:
  • Brand Name:
  • Model Number:
  • Material:
  • Thickness:
  • Size:
  • Density:
  • Hardness (Shore D):
  • Tensile strength at break:
  • Notched izod impact strength:
  • Abrasion wear:
  • Melting Temperature:
  • Tensile strength at yield:

Product Description

Product Description

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail

UHMW is an ultrahigh molecular Weight Polyethylene with a molecular weight between 5 and 9 million, making it by far one of the polymer materials with the highest molecular density.
Fight friction and reduce costs with UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail.
UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail are a tough, wear resistant plastic that combines an incredibly low coefficient of friction with outstanding impact strength. These self-lubricating UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail have excellent chemical resistance and a broad temperature range making them the perfect choice for engineers in a variety of industries such as conveyor and bulk material handling.
Material
virgin UHMWPE (UHMW polyethylene)
Service
any design can be made as request
Color
black/white/yellow/blue/red/orange or as request
Application
coal, cement, lumber,
paper, steel, grain,
canning， mining and manufacturing.
in the industry for guiding belts, chain and cables
designed to fit most bulk material handling chains

Better than steel liners
unlike metals, it will not rust due to its high resistance to acids and alkalis
outwear abrasion-resistant steel by 3 to 1 and UHMWPE by 5 to 1
Key Features

and Benefits
These wear strips offer low friction wear surface for chains and ensure smooth & noiseless conveying.
UHMW-PE material to ensure minimum friction and maximum wear resistance.

Size of UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail

  Length mm
Width
Thickness
1000
1000
5-50
2000
1000
5-50
3050
1220
5-50
3030
1550
5-50
4520
2000
5-50
4730
1230
5-50
5040
1330
5-50
6050
1820
5-50
Any size will be made as request.Any size is availible.

Properties of UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail


Property
Unit
Value
Density
g/cm3
0.93-0.96
Average molecular weight
g/mol
3million- 10 million
Tensile strength (23°C in air)
MPa
22
Breaking strength
MPa
42
Tensile strain at break
%
600
Charpy impact strength (notched)
mJ/mm2
No break
Ball indentation hardness
N/mm2
42
Shore hardness
--
65-70
Abrasion
%
70-80, steel = 100
Static Friction Coefficient
≤0.16
Kinetic Friction Coefficient
≤0.10
Water Absorption
NIL
Elongation at break at 23°C
%
≥300
Melt Temperature
°C
130-140
Temperature Resistance
°C
-269 to +85

Advantage of UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail


Having an incredibly high molecular weight, UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail proves its true worth not only in regards to sliding with metal faces, but also sand, powder and other fields where normal wear-resistant materials struggle.

2. Excellent sliding ability

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail has an extremely low friction coefficient. It is comparable to PTFE, which also slides well.

3. Doesn't crack easily

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail has a level of shock resistance simply not found in other materials. Does not break easily unless affected chemically.

4. Non-adhesive

Highly non-adhesive. With a non-adhesiveness second only to PTFE, UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail is optimal as a material for the inner liners of containers such as hoppers, silos and chutes.

5. Non-toxic and safe

A physically non-toxic material. Great for use with food products, UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail can also be used in the medical field.

6. Difficult to penetrate

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail Features excellent chemical resistance.

7. Doesn't absorb water.

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail has an absorption rate of virtually zero, therefore its strength does not deteriorate due to swelling caused by water absorption.

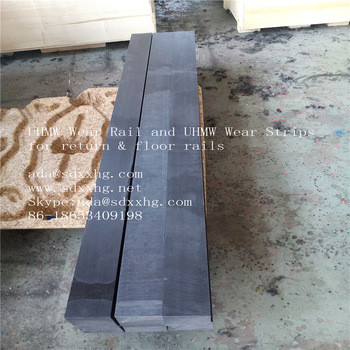

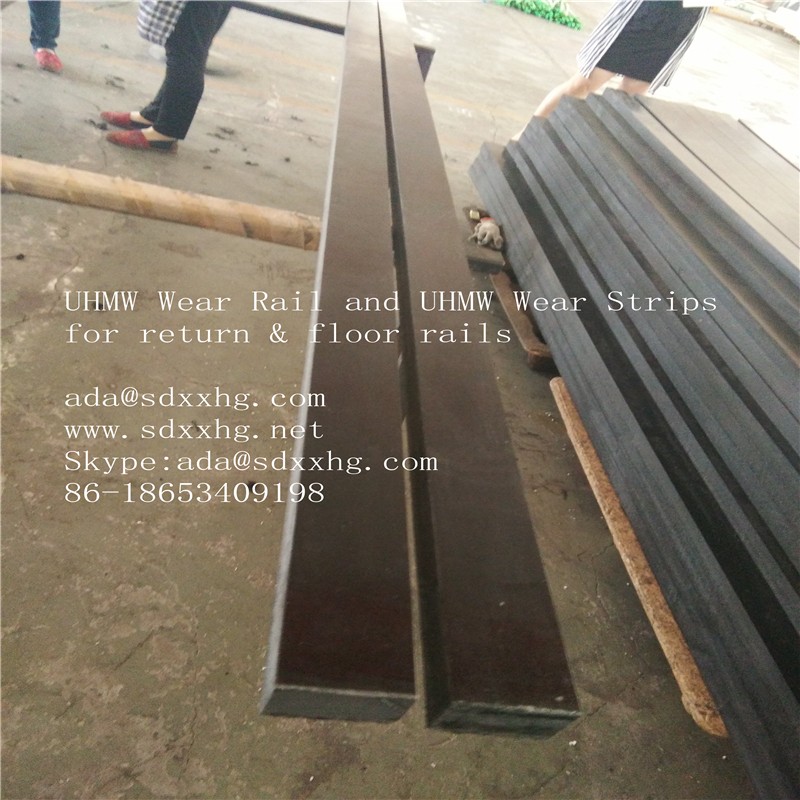

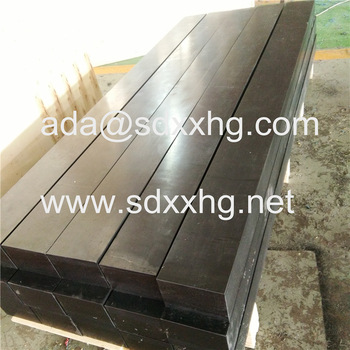

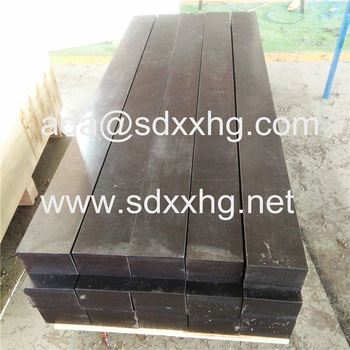

Detailed Images

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail

UHMWPE conveyor chain pallet UHMWPE WEAR MACHINED PARTS hdpe guide rail


Related Products

uhmwpe wear strip wear strips for conveyer UHMW Guide Rail Shields

UHMWPE BARS FOR CONVEYORS okulen uhmw pe1000 green wear strip UHMWPE engineering block

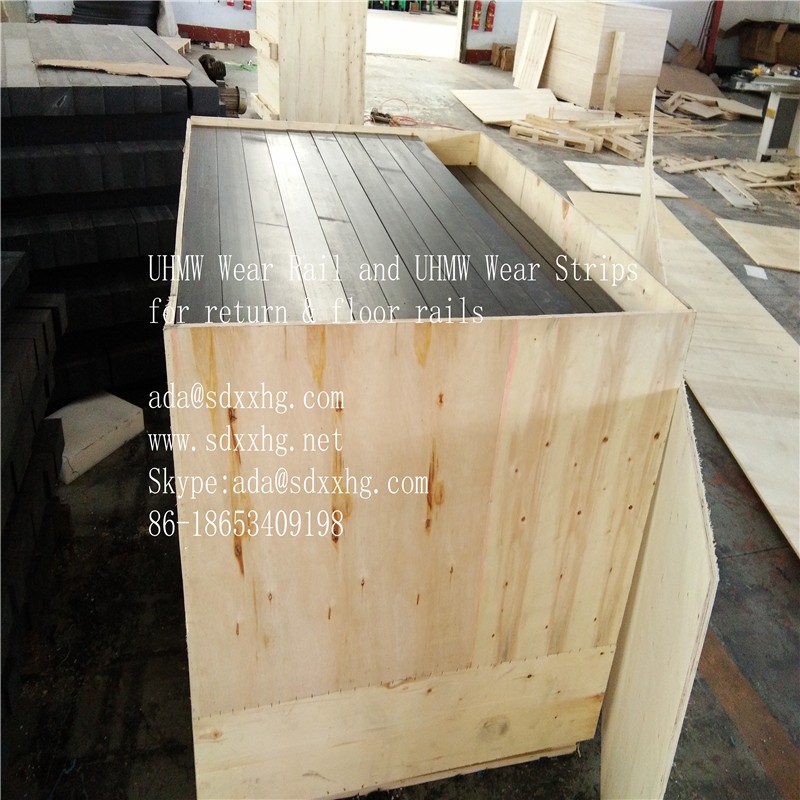

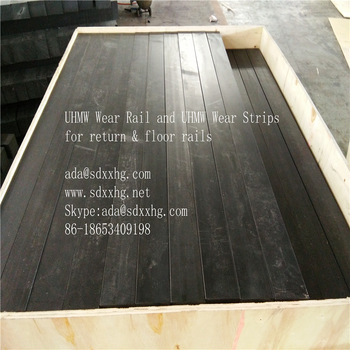

Packing & Delivery

Shipping

pallets ,wooden case or as request

about 15-30 days

Air transportation

EXPRESS,DHL..UPS..

Our Company

Shandong Ningjin Xinxing Chemical Co.,Ltd

Address:Liaohe Street,Dezhou City,Shandong Province,China.
Zip code:253400
Contact Phone Number:86-13181374731    86-18653409198

Shandong Ningjin Xinxing Chemical Co.,Ltd. is one of the largest Engineering Plastic products manufacture in China.
We have a wide variety of products, mainly including all kinds of UHMW-PE Fender Pad ,UHMW-PE Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products.
