> Industrial Equipment & Components > Valve > Check Valve > BS Cast Iron Pn16 Foot Valve with Strainer

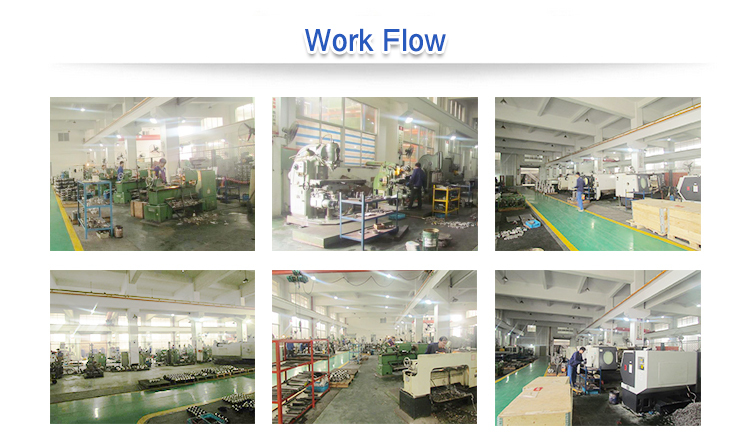

CASTING→MACHINING→PAINTING→ASSEMBLING→PRESSURE TEST→FINISHED PRODUCT
| Foot Valve Appilcation | |||||||||
| Face to face is according to ISO standard | |||||||||
| Flange drilled is according to ANSI/BS/DIN/JIS etc. | |||||||||
| Foot Valve Main Parts and Materials | |||||||||
| Body | Cast iron or ductile iron | ||||||||
| Disc | Cast iron or ductile iron | ||||||||
| Disc Seat Ring | NBR | ||||||||
| Spring | Stainless steel/steel with zinc | ||||||||
| Screen | Stainless steel/steel zinc plated | ||||||||
| Foot Valve Test | |||||||||
| Working Presssure | PN10/PN16 | 125PSI/150PSI | |||||||
| Shell Pressure | 15bars24bars | 200PSI | |||||||
| Seat pressure | 11bars/17.6bars | 300PSI | |||||||
| Foot Valve Main Dimensions | |||||||||
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| H | 120 | 120 | 140 | 170 | 200 | 220 | 288 | 344 | 385 |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 |
