Features：

1.This type can grind all kinds Hard & Soft materials into 20-120 mesh powders in normal temperature
2.A widely use range, PVC/PE/ABS/PS/PA/PC Materials
3.This machine has a more higher output, 2 or 3 times than normal miller, equipped with Dust collector. An ideal energy saving machine in plastic industries

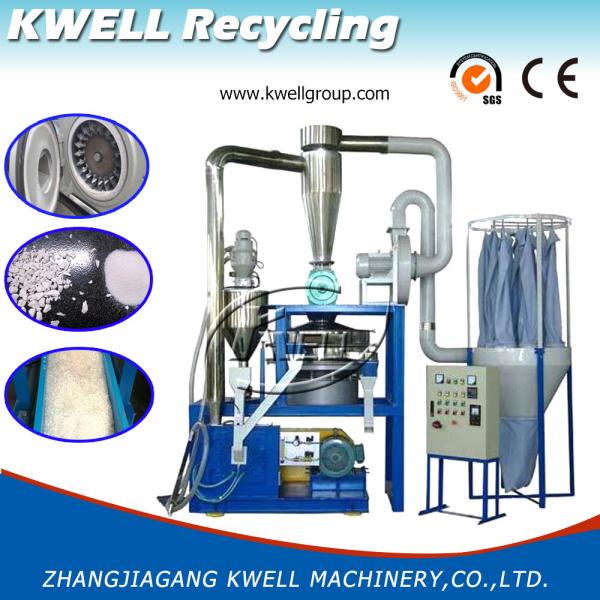

4.This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system. Automatic and space saving.
5.The sword adopted imported stainless steel, durable, can work continous
6.Knife can be adjusted easily, easily maintained and control
7.Main shaft adopted SKF, matched with oil pump imported, can used about 3-4 years in normal use.

Applications：

‍This product is suitable for recycle all kinds of grinding thermoplastic, like PP, PE, PVC,PET,EVA,ABS etc.

‍

Working principle：

The material in pellet or granular form is fed with a vibratory feeder from a feeder hopper to the pulverizer. The material is pulverized between two rings of segments mounted on carrier discs then air conveyed to a screening machine. The coarse material is recycled to the pulverizer for further size reduction. The desired powder is deverted to fill bags or containers or conveyed to silos.

Technical parameter：‍‍

Pacakage:

Photos of factory：

Top Quality:
KWELL is a prestigious plastic recycling machinery manufacturer in China. Our customers have been enjoying a variety of advantages in particular in terms of the dedicated screw designed by our R&D team including good mixing, good dispersion, high productivity, and so on.

Implied Qarranty:
KWELL Machinery guarantees all new products and parts to the first owner-operator to be free from defects in material and workmanship for a period of 12 months from B/L date, under normal use and service.

After-sales service:
1.Send engineers to install, test the machines and offer technology guidance and worker training at customers' factory.

2.Offer 12 months free maintenance and life long service. After the warranty period, spare parts will be provided at basic cost.

3.Build customers database. All machines are traceable.

4.Visit customers and make quality trace periodically and take customers' feedback into account during routine practices.

5.Speed up service and spare parts supply.

Welcome your inquiry for details!

‍
