optical sorting machine
> Industrial Equipment & Components > Other Equipment & Components > Auto Optical Fastener Inspection Machine
1 Set
Ningbo
10 sets per month
T/T,Western Union

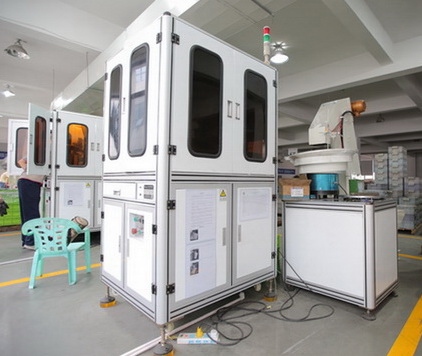

Screw sorting machine is designed with glass platform
PRODUCT FEATURE
Applying component: Fastener, micro screw, micro parts
Suitable for inspecting fastener <m3.0 of 3C/electronic application
Sorting range: MO.6-M3 standard
Application: screws of mobile phone, MP3, PDA, notebook, digital camera
Speed: Non-stop Inspection with High Speed 600~1000 parts per minute
user-friendly ,easy for operation and maintenance
Inspection criteria
fastener parts head width / height / pinhole depth / recess shape / burr in recess/ spiral thread / thread I.D. / thread E.D./
neck length / shank vertical / screw length / first thread / drunk thread / head crack / plating / insert nut thread / burr /
dimension / etc.
Specifications
Applying component:Micro screw, special micro parts, semiconductor parts
Diameter of component:M0.6-M4 standard
Length of component:25mm
Head Width:25mm
No. of CCD:2 CCD
Vision system:Highly magnified CCD camera / light source sets
Software: Eyason II version 2.5
Supply and output:Feeding bowl / linear track / sorting bins (Good/NG)
Speed:600~1000 pcs/min
Power:AC 220 - 240V / 50Hz
Mainframe:Industrial computer, MITSUBISHI servo motor, Industrial CCD, Telecentric lens
Our company is a high-tech enterprise located in Rui'an Luofeng Northern Industrial Zone. We are specialized in research and development, production, ...
