Marine dock fender UHMWPE facing pad
Basic Info
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- Thickness:
- Size:
- Density:
- Application:
- Certificate:
- Surface:
- Color:
- Hardness:
- Water absorption:
- Temperature:
- Elongation at break:
- Product name:
Product Description

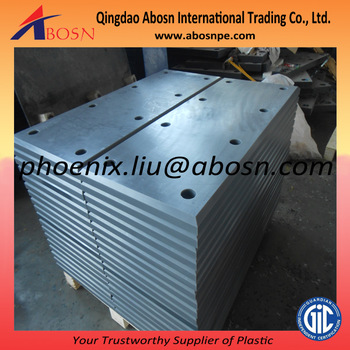

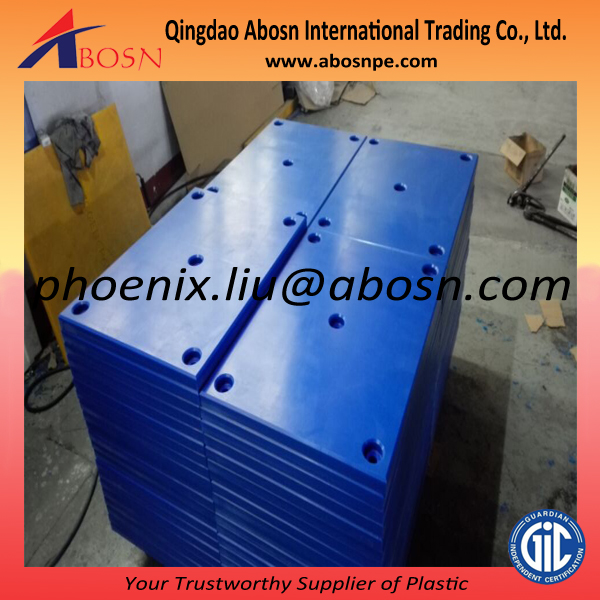

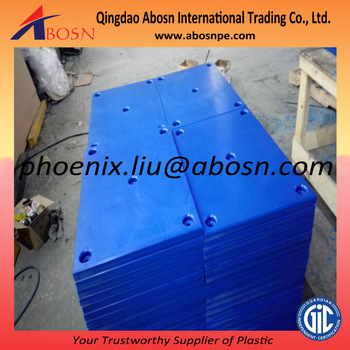

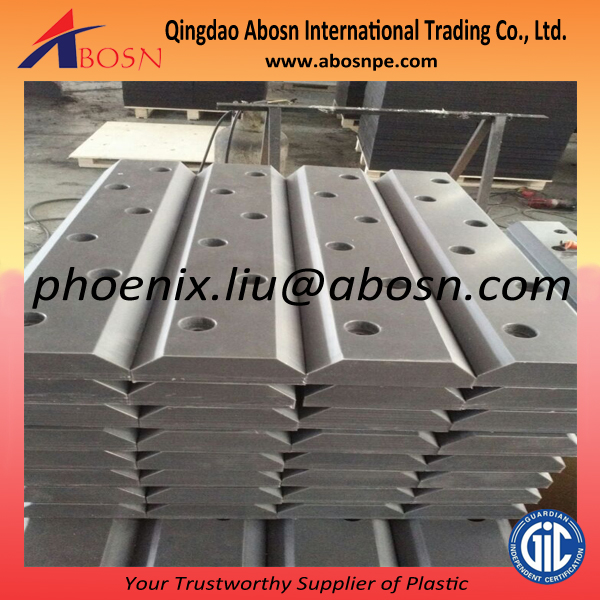

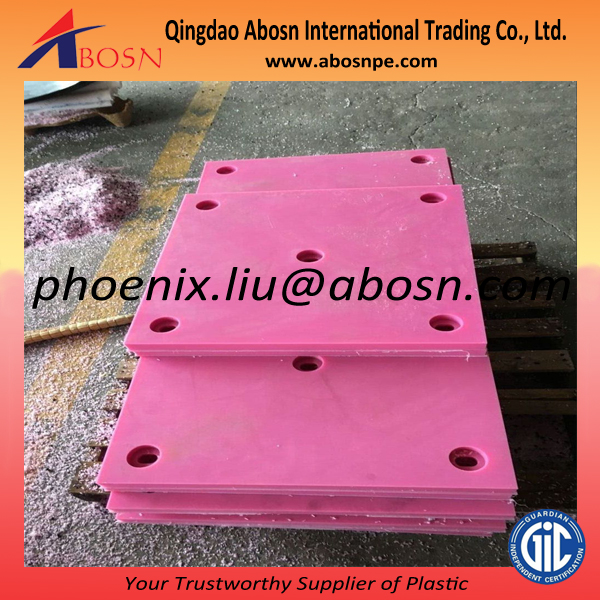

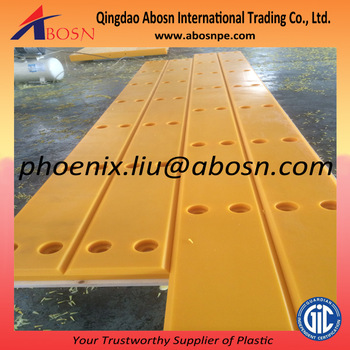

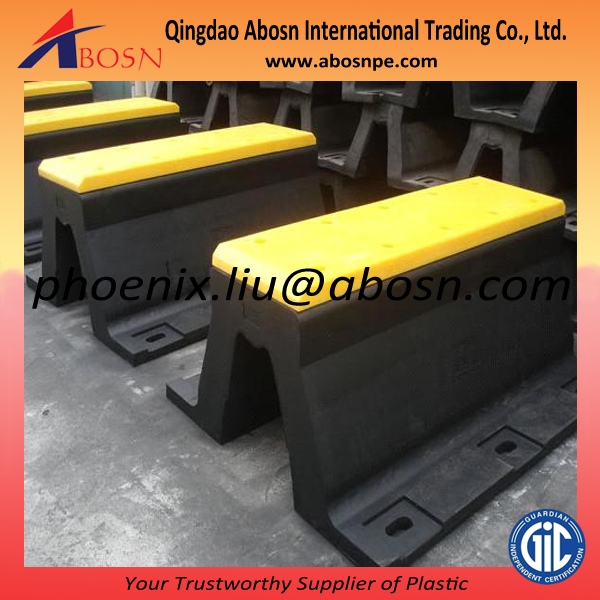

Marine dock fender UHMWPE facing pad
Product Description
Marine Fenders provide the necessary interface between the berthing ship and the berth structure and therefore the principal function of the fender is to transform the impact load from the berthing ship into reactions, which both the ship and berth structure can safely sustain.
Marine fenders typically operate as a group of single units where the type, location and density of their installation or deployment depends on several factors including their technical specifications, berth structure, ship type, etc.
The basic function of the marine fenders is to manage the excess kinetic energy of the ship during the approach or berthing operation preventing damage to occur in both the ship and the berth. In case of elastomeric fenders the excess kinetic energy is stored within the elastic elements, which are deformed by developing a counter parallel (to the motion of the ship) reaction force, which results in slowing down the vessel and keeping it to a safe distance from the quay.
Item | Test method | Unit | UHMWPE1000-V | UHMWPE1000-DS |
Density | ISO1183-1 | g/cm3 | 0.93-0.95 | 0.95-0.96 |
Yield Strength | ASTM D-638 | N/mm2 | 15-22 | 15-22 |
Breaking Elongation | ISO527 | % | >200% | >100% |
Impact Strength | ISO179 | Kj/m2 | 130-170 | 90-130 |
Abrasion | ISO15527 | Steel=100 | 80-110 | 110-130 |
Shore Hardness | ISO868 | Shore D | 63-64 | 63-67 |
Friction Coefficient (Static state) | ASTM D-1894 | Unitless | <0.2 | <0.2 |
Operating Temperature | - | ℃ | -80 to +80 | -80 to +80 |
Advantage:
Very high impact strength
Very low friction coefficient
Very high abrasion resistance
UV + Ozone resistance
Non-conducting (optional)
100% recyclable, non-rottening
Cut to size sheet, all size is available with us

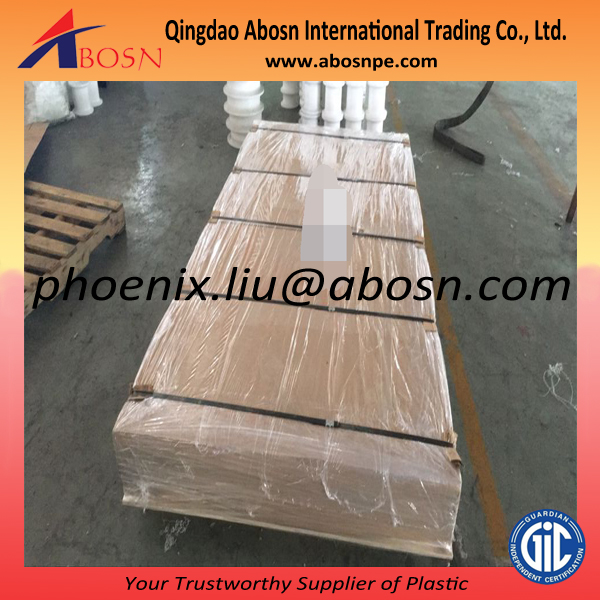

Packaging & Shipping

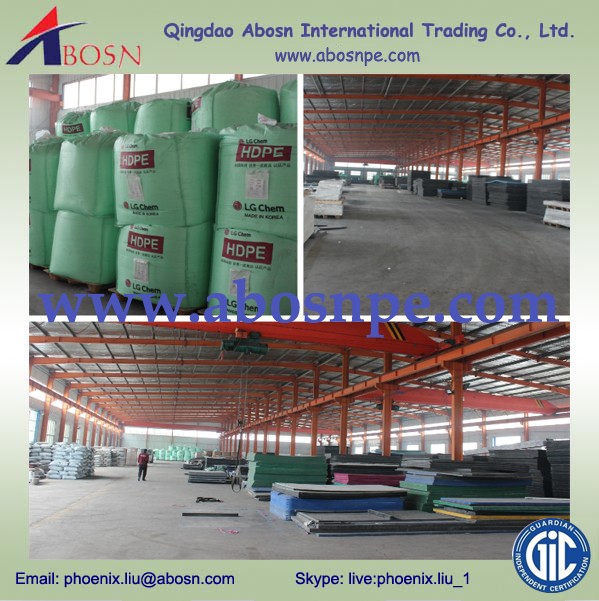

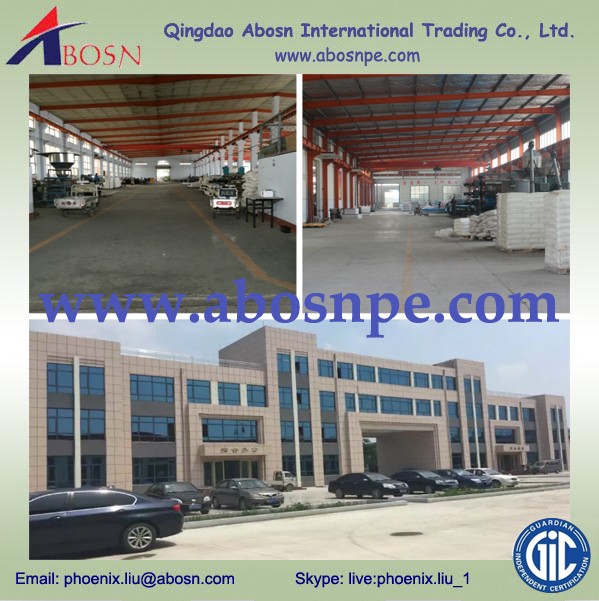

Company Information
FAQ
Q: We have a strict control on our quality so we must assure the uhmwpe parts that we imported have good quality ,how can you assure that?
A: Dear sir, that is really a good question. We control our quality from raw material to the processing process in every aspects. Also we use TICONA brand material as the raw material. Their quality is very famous all over the world.
Q: Can you exported by yourself and which country that you have exported?
A: Dear Sir, we have exported license and we have exported to many countries like America, Russia, Africa, Thailand, Malaysia, Indonesia, Japan, Germany, Poland, Uk, Canada and many other countries.
