UHMW Fender Face Pad - Arch Fender,Cone Fenders,Cell Fender

1

You can manage your favorites in member center.
Favorites

Basic Info

  • Place of Origin:
  • Brand Name:
  • Model Number:
  • Material:
  • Thickness:
  • Size:
  • Color:
  • Application:
  • Certificate:
  • Density:
  • Surface:
  • Feature:
  • Type:
  • Package:
  • Name:
  • Product name:

Product Description

UHMW Fender Face Pad - Arch Fender,Cone Fenders,Cell Fender

Product Description

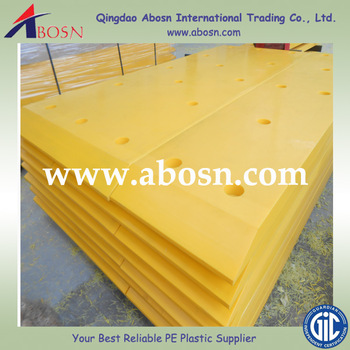

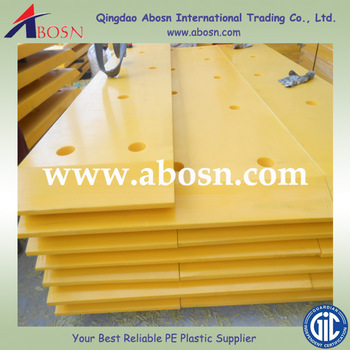

ABOSN UHMWPE1000 Ultra High Molecular Weight Polyethylene (UHMWPE) is the first choice material for facing steel fender panels and other heavy duty applications. It combines very low friction with excellent impact strength and a wear resistance much better than steel. Most popular is ABOSN UHMWPE1000-DS which is ‘double-sintered’ and work-hardened for extra durability. The standard color is black, but if other colors are needed then UHMWPE1000-V ‘virgin’ grade also comes in yellow, white, grey, blue, green and red. UHMWPE1000 materials are compounded to resist ozone and UV radiation. They do not degrade or not and are easily recycled at the end of their service life.



Advantages

Very high impact strength

Very low friction coefficient

Very high abrasion resistance

UV + Ozone resistance

Non-conducting (optional)

100% recyclable, non-rottening

Cut to size sheet, all size is available with us



Standard color

Black, Yellow, Blue, Green, Red, White, other colors are available upon request



The applications are as follows:

low resistance sliding panels for bridge and protection

low resistance sliding plates on fender panels

corner protection for offshore structures

berths and other marine facilities





Specification

UHMWPE Flat Fender Pad, UHMWPE Corner Fender Pad, UHMWPE Edge Fender Pad are all available

(Please contact us for special requirements)





Properties

Item

Test method

Unit

UHMWPE1000-V

UHMWPE1000-DS

Density

ISO1183-1

g/cm3

0.93-0.95

0.95-0.96

Yield Strength

ASTM D-638

N/mm2

15-22

15-22

Breaking Elongation

ISO527

%

>200%

>100%

Impact Strength

ISO179

Kj/m2

130-170

90-130

Abrasion

ISO15527

Steel=100

80-110

110-130

Shore Hardness

ISO868

Shore D

63-64

63-67

Friction Coefficient

(Static state)

ASTM D-1894

Unitless

<0.2

<0.2

Operating Temperature

-

-80 to +80

-80 to +80





Our Services

 We focus on what our customers need and dedicate to produce satisfying products and innovate new products to our clients.

After-sales service  - ABOSN Product Quality is Guaranteed

-We have Strict QC and make sure every step of processing is for specification compliance.

-We track our goods from transportation to your sales in local market to help your successful business.

-Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience

-If you break a pad under normal conditions, Abosn will replace it free of charge







Company Information

 Qingdao Abosn was located in Qingdao, the third-largest port city in China; with convenient traffic and developed imports and exports. As the qingdao office of biggest UHMWPE manufacture ,we can supply you the best price with best quality products .We are dedicated to provide enhanced designs, research and development, manufacturing capabilities, sales, and imports and exports of engineering plastic.  Our products success can be seen through many national and ministerial certificates; they have also recently passed the latest ISO9001:2008 quality system.



Complete organization and strong technical strength provide us with the ability to constantly develop new products according to customer demands. In the industry we have the most strong vender resources,advanced processing and testing equipment, professional and high quality design, and production and construction team.



Our Ultra-high molecular weight polyethylene and other engineering plastic products have been exported to Europe, Southeast Asia, North America, South America and other regions; and has gained reliable trust from all of customers.



Below is our new and very popular products :

UHMWPE /HDPE Sheet or Rod ,UHMWPE Machined Parts ,Chain guide Rails ,Suction box cover , Coal bin liner ,Ground protection mat ,Outrigger pad ,Stabilizer pad ,Pipe support ,PE 1000 /PE 500/PE 300 Sheet or products ,PP Sheet ,PVC Sheet etc.





FAQ

 Q : We have a strict control on our quality so we must assure the uhmwpe parts that we imported have good quality ,how can you assure that ?

A: Dear sir ,that is really a good question .We control our quality from raw material to the processing process in every aspects .Also we use TICONA brand material as the raw material .Their quality is very famous all over the world .

Q: Can you exported by yourself and which country that you have exported ?

A: Dear Sir ,we have exported license and we have exported to many countries like America ,Russia ,Africa ,Thailand ,Malaysia ,Indonesia ,Japan ,Germany ,Poland ,Uk ,Canada and many other countries .

Q: If we purchase from you ,what benefits that you can bring to us ?

A: We can bring you benefits in four aspects : Price ,Service ,Delivery time ,Quality

Price :If you buy from us ,we can assure that your price is competitive than others since we are the largest manufacture for UHMWPE products

Service :We have special sales and single service for you which will make sure that you can get every good service on each order

Delivery time :We have nearly 16 sets pressing machines and 7 sets CNC machine to do the processing which will make sure a very fast delivery time

Quality : Quality is the best since raw material and our pressing machine is best

Q:We are very urgent on this sample order and quantity is only 4 tons ,could you finished them in 10 days ?

A: OK ,even our normal delivery time is 15 days ,but we would like to help you solve this problem.
