Ultra-violet protected and resistant Engineering plastic pad UHMWPE Pad
Basic Info
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- Thickness:
- Size:
- Color:
- Certification:
- Density:
- shape:
Product Description
Ultra-violet protected and resistant Engineering plastic pad UHMWPE Pad
Product Description
UHMWPE Pad Specifications:
Project name | Unit | Standard |
Impact strength | KJ/m2 | ≥140 |
Water absorption | % | ≤0.01 |
Compressive strength | Mpa | ≥30 |
Ball indentation hardness | N/mm2 | ≥20 |
Friction coefficient |
| 0.11-0.17 |
Abrasion loss | G/cm2 | 3.8×10-4 |
Heat distortion temperature | °C | 85°C |
Polyethylene UHMW PE1000 profiles and wear strips
OEM Sevrice :

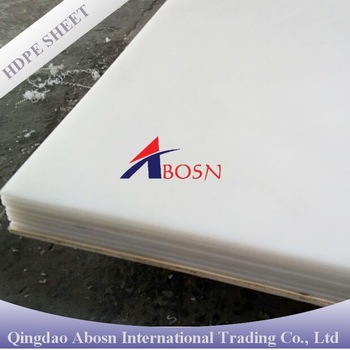

We provided you with various OEM Sevrice .HDPE Block ,HDPE Impact bar ,HDPE Strip ,HDPE rod and other HDPE parts .
UHMW Polyethylene Sheet Size:
1.Thickness: 2 - 300mm
2. Width: max 2000mm
3. Normal standard size:
Length(mm) | Width(mm) | Thickness(mm) |
2000 | 1000 | 2-300 |
3000 | 1500 | 2-300 |
4700 | 1200 | 2-300 |
5000 | 1300 | 2-300 |
4500 | 2000 | 2-300 |
3050 | 1220 | 2-100 |
Any small size need us to cut , we can satisfy your special need
Packaging & Shipping
carton case or other packing can be made according to your requirment
Company Information
Why Choose Us
1.More than 15 years' professional manufacturing experience with own factory.
2.Virgin 100% material produced, high quality with good surface and color make ensured
3.GB/T 19001-2008 ; ISO 9001:2008 certification.
4. Competitive price, In stock, Fast delivery, and Excellent service.
5.OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
Polyethylene UHMW PE1000 profiles and wear strips
Contact US
Sold By
Qingdao Abosn was located in Qingdao, the third-largest port city in China; with convenient traffic and developed imports and exports. As the qingdao...
Contact Seller
MessageBuyer Protection
-Secure payments
-Guaranteed refunds
-Escrow protection on every order
-Guaranteed delivery of goods
Product Groups
- Ungrouped
- UHMWPE Fender facing pads
- UHMWPE Liner sheet
- UHMWPE Wear resisting strip
- UHMWPE Dewatering elements
- UHMWPE Dock bumper

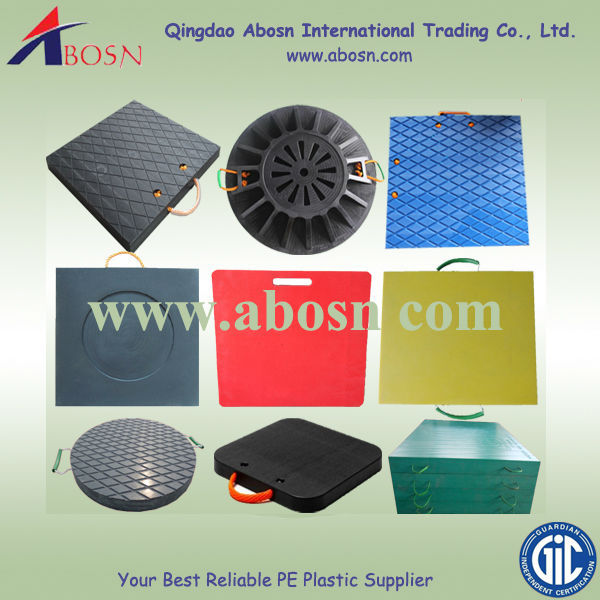

- Crane Outrigger Pads
