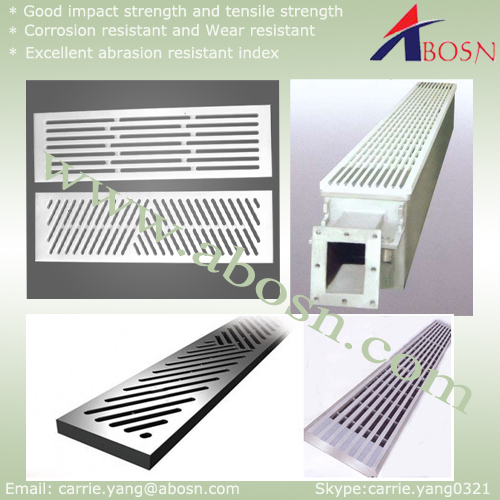

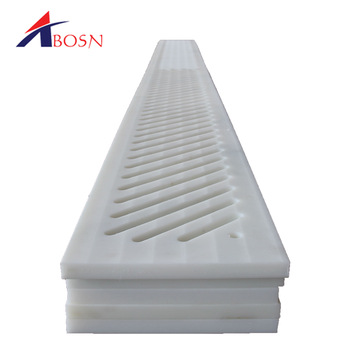

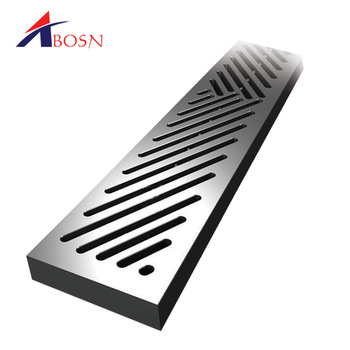

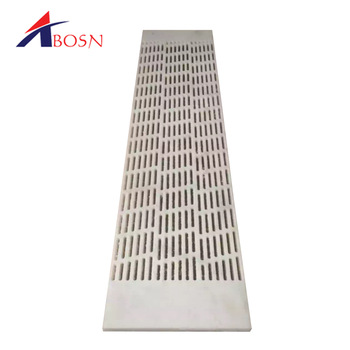

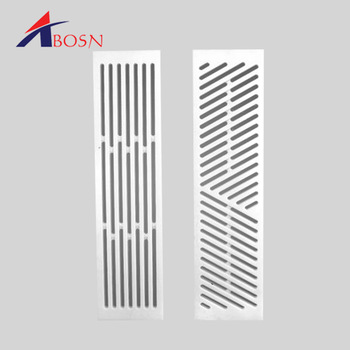

UHMWPE plastic dewatering element UHMWPE suction box cover
Basic Info
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- Thickness:
- Size:
- Product:
- Density:
- Shape:
- Certification:
- Friction Coefficient:
- Water Adsorption:
- Making Method:
- Color:
- Feature:
Product Description
Product Description
Abosn UHMWPE suction box covers and blades are made of UHMW-PE material. UHMW-PE dewatering element is known for its high dry-film lubricant content.This produces an extremely smooth surface, most importantly resulting in a low friction coefficient a low level of adhesion. No adhesion Excellent chemical resistance.
For machines with speeds up to 800 m/min Abosn dewatering elements in ultra high molecular weight polyethylene set themselves apart by the special sinter press procedure over a long period used to produce them, as well as an extremely high molecular weight plus their extra additive that is specifically tailored to paper machines.
Size
Suction box cover, made to your specifications.
Length is 1.2m, width is 1m, thickness is 60mm.
Other sizes can be customized.
Color
White, Yellow, Blue, Orange, and other custom colors.
Data Sheet:
| Properties | Unit | Method | |
| Density | g/cm3 | 527 / D 792 | 0.93-1 |
| Tensile strength at yield | MPa | 527 / D 638 | 17 |
| Tensile strength at break | MPa | 527 / D 638 | 40 |
| Elongation at break | % | 527 / D 638 | >50 |
| Modulus of elasticity in tension | MPa | 527 / D 638 | 650 |
| Modulus of elasticity in flexture | MPa | 178 / D 790 | 800 |
| Ball indentation hardness | MPa | 2039/1 | 35 |
| Impact Strength | kJ/m2 | 179 / D 256 | No br. |
| Creep rupture strength after 1000 hrs with static load | MPa | ||
| Time yield limit for 1% elongation after 1000 hrs | MPa | ||
| Coefficient of friction against hardened and ground steel p=0,05 N/mm2, v = 0,6 m/s | - | 0.29 | |
| Wear conditions as above | um/km | ||
| Crystalline melting point | ℃ | DIN 53 736 | plus 135 |
| Glass transition temperature | ℃ | DIN 53 736 | |
Heat distortion temperature Method A |
℃ ℃ | ||
Max. service temperature short term |
℃ ℃ |
plus 120 plus 90 | |
| Coefficient of thermal conductivity | W/(m K) | 0.41 | |
| Specific Heat | J/(g K) | 1.84 | |
| Coefficient of thermal expansion | 10-5/K | DIN 53 483 / D 696 | 20 |
| Dielectric constant at 105 Hz | DIN 53 483 | 3 | |
| Dielectric loss factor at 105 Hz | DIN 53 483 | ||
| Specific volume resistance | DIN 60093 | 1014 | |
| Surface resistance | DIN 60093 | 1012 | |
| Dielectric Strength 1mm | kV/mm | ASTM 149 | 45 |
| Tracking Resistance | 53480 | KA 3c, KB>600,KC>600 | |
| Moisture absorption: Equilibrium in standard atmosphere (plus 23℃ / 50% relative humidity) | % | 62 | 0.01 |
| Water absorption at saturation at plus 23℃ | % | 62 | 0.01 |
| Resistance to hot water, washing soda | resistant | ||
| Flammability according to UL standard 94 | HB | ||
| Resistance to weathering | Natural: not resistant Black: resistant |
Packaging & Shipping
Packaging Detail: standard exporting package.
Delivery Detail: 15 working days after receiving deposit
Our Services
We focus on what our customers need and dedicate to produce satisfying products
and innovate new products to our clients.
After-sales service - ABOSN Product Quality is Guaranteed
We have Strict QC and make sure every step of processing is for specification compliance.
We track our goods from transportation to your sales in local market to help your successful business.
Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience.
Company Information
Basic Information
Business Type: Manufacturer, Trading Company
Main Products: UHMWPE sheet, UHMWPE rod, UHMNWPE strip, UHMWPE block, UHMWPE facing pads,UHMWPE chain guides,UHMWPE bearing,UHMWPE cutting boards,UHMWPE suction box cover,UHMWPE machining block,UHMWEP conveyor impact bar and other UHMWPE machined parts with all kinds of grades and color.
Factory Information
Factory Size: Nearly 50,000 square meters
Number of Workshops: 5
Certification: ISO9001:2008
FAQ
Q: Which country that you have exported ?
A: We have excellent cooperation with America ,Russia ,Africa ,Thailand ,Malaysia ,Indonesia ,Japan ,Germany ,Poland ,Uk ,Canada and many other countries .
Q: Is it all right to make customer's own brand name?
A: Thats all right to engrave your own brand name.
