white UHMWPE plastic sheet for Dewatering component of paper machine 1
white UHMWPE plastic sheet for Dewatering component of paper machine
UHMWPE is odorless,tasteless,and nontoxic.It is highly resistant to corrosive chemicals except oxidizing acids;has extremely low moisture absorption, low temperature resistant, and a very low coefficient of friction; is selflubricating; and is highly resistant to abrasion, in some forms being 15 times more resistant to abrasion than carbon steel.
UHMWPE Advantages:
--Highest abrasion resistance of any polymer
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties

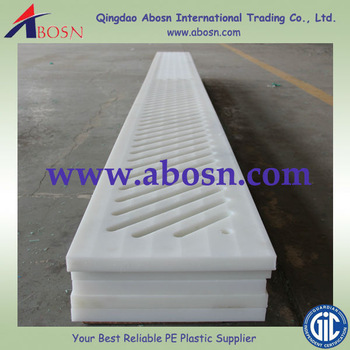

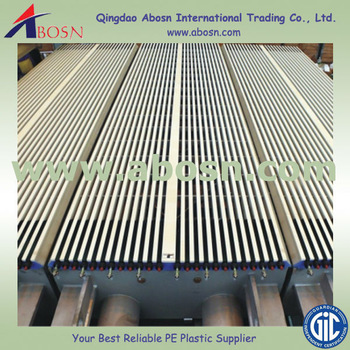

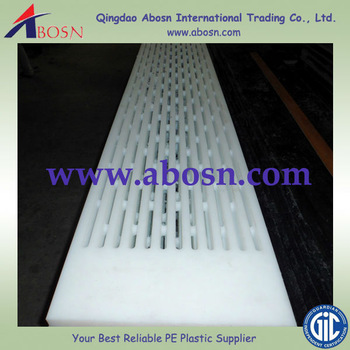

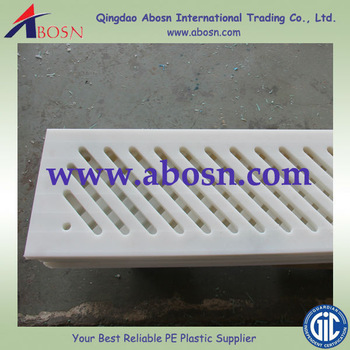

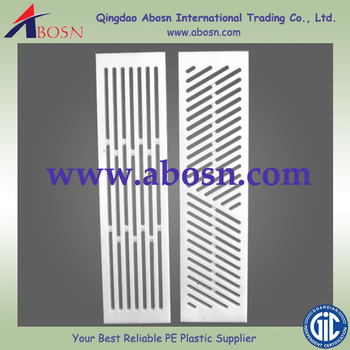

Our UHMWPE/HDPE Suction Box Cover Characters:
1.very flat on the surface.
2.The color is pure and any color can be made by us.
3.We can give you an accurate size with advanced machine.
4.Different shape also can be made by us like bending sheet.
5.According to different requirements with different application, special specifications can be customized
Specialties
Application:
On paper and pulp industry
At machine speeds of up to approx. 800 m/min
Data Sheet:
Properties | Unit | Method | |
Density | g/cm3 | 527 / D 792 | 0.93-1 |
Tensile strength at yield | MPa | 527 / D 638 | 17 |
Tensile strength at break | MPa | 527 / D 638 | 40 |
Elongation at break | % | 527 / D 638 | >50 |
Modulus of elasticity in tension | MPa | 527 / D 638 | 650 |
Modulus of elasticity in flexture | MPa | 178 / D 790 | 800 |
Ball indentation hardness | MPa | 2039/1 | 35 |
Impact Strength | kJ/m2 | 179 / D 256 | No br. |
Creep rupture strength after 1000 hrs with static load | MPa | ||
Time yield limit for 1% elongation after 1000 hrs | MPa | ||
Coefficient of friction against hardened and ground steel p=0,05 N/mm2, v = 0,6 m/s | - | 0.29 | |
Wear conditions as above | um/km | ||
Crystalline melting point | ℃ | DIN 53 736 | plus 135 |
Glass transition temperature | ℃ | DIN 53 736 | |
Heat distortion temperature Method A |
℃ ℃ | ||
Max. service temperature short term |
℃ ℃ |
plus 120 plus 90 | |
Coefficient of thermal conductivity | W/(m K) | 0.41 | |
Specific Heat | J/(g K) | 1.84 | |
Coefficient of thermal expansion | 10-5/K | DIN 53 483 / D 696 | 20 |
Dielectric constant at 105 Hz | DIN 53 483 | 3 | |
Dielectric loss factor at 105 Hz | DIN 53 483 | ||
Specific volume resistance | DIN 60093 | 1014 | |
Surface resistance | DIN 60093 | 1012 | |
Dielectric Strength 1mm | kV/mm | ASTM 149 | 45 |
Tracking Resistance | 53480 | KA 3c, KB>600,KC>600 | |
Moisture absorption: Equilibrium in standard atmosphere (plus 23℃ / 50% relative humidity) | % | 62 | 0.01 |
Water absorption at saturation at plus 23℃ | % | 62 | 0.01 |
Resistance to hot water, washing soda | resistant | ||
Flammability according to UL standard 94 | HB | ||
Resistance to weathering | Natural: not resistant Black: resistant |
Why Choose US?
1.Professional manufacturing experience.
2.Virgin 100% material produced, high quality with good surface and color make ensured
3.ISO 9001:2008 certification.
4.Competitive price, In stock, Fast delivery, and Excellent service.
5.OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized.
Packaging Detail: standard exporting package.
We'll try our best to meet your demand and careful about your request.
Delivery Detail: 15 working days after receiving deposit
We are really the manufacture you are looking for!
1.We have professional sales with rich experience of working to handle each order.
2.We undertand your concern and aim to give the best service.
3.We provide quick responses and fast turn-around times
After-sales service - ABOSN Product Quality is Guaranteed
1.We have Strict QC and make sure every step of processing is for specification compliance.
2.We track our goods from transportation to your sales in local market to help your successful business.
3.Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience.
If you break a pad under normal conditions, Abosn will replace it free of charge.
Established in 1989,Abosn has become the largest manufacture. Our factory covers an area of nearly 50000 square meters, and has 5 workshops for manufacturing 5000 tons every year, including 3000 tons imported to North America, South America, Europe, Africa and other countries of Asia. Our UHMWPE products are mainly including UHMWPE sheet ,UHMWPE rod ,UHMWPE strip, UHMWPE block , UHMWPE fender facing pads , UHMWPE bearing , UHMWPE cutting boards , UHMWPE suction box cover , UHMWPE chain guides , UHMWPE machining block , UHMWPE conveyor impact bar and other UHMWPE machined parts with all kinds of grades and colour .Other PP, PVC, PTFE products can also be provided, and all have passed the latest ISO9001:2008 quality system.
Our UHMWPE products are widely used in North,America,Europe ,Australia,Southeast Asia,Africa,Russia and many other plates around the world due to their outstanding properties .Abosn UHMWPE products have the most type and grades compared to other manufactures.
We manufacture all of our UHMWPE products according with ISO9001:2008 production standards.Our raw material are provided by Ticona which is famous all over the world. We have 16 sets different size of hydraulic pressing machines for pressing UHMWPE sheets ,two extruded machines for UHMWPE Rods ,7sets world two head CNC machines for UHMWPE parts.
Our R&D and new production base was completed in 2014,which greatly increases our manufacturing capabilities.The factory covers 48,000 square meters and features six large scales workshops.We have become China’s largest UHMWPE manufacture with annual production output of 6000000 tons .
Basic Information
Business Type: Manufacturer, Trading Company
Main Products: UHMWPE sheet, UHMWPE rod, UHMNWPE strip, UHMWPE block, UHMWPE facing pads,UHMWPE chain guides,UHMWPE bearing,UHMWPE cutting boards,UHMWPE suction box cover,UHMWPE machining block,UHMWEP conveyor impact bar and other UHMWPE machined parts with all kinds of grades and color. Other PP, PVC, PTFE products can also be provided,and all have passed the latest ISO9001:2008 quality system.
Trade&Market
Main Markets:
Annual Sales: 6,000,000 tons
Factory Information
Factory Size: Nearly 50,000 square meters
Number of Workshops: 5
Certification: ISO9001:2008
1. When can I get the price?
We usually quote within 24 hours after we get your inquiry.
If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
You can require for samples to check our quality.We will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 7~10 working days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, production lead time is within 2~4 weeks.
5.About Price: could I get your price list?
Yes,please tell us the products (with their model number), quantity you are interested in, then we will offer the price by e-mail.
If you have any interest contact us! We will give you the best products and the best service.
