High quality Uhmwpe crane stabilizer foot pads engineered outrigger pad on sale
Basic Info
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- Thickness:
- Size:
- Color:
- shape:
- Normal size:
- Density:
- Certification:
- Molecular weight:
- Max load:
- Key words:
Product Description
High quality Uhmwpe crane stabilizer foot pads engineered outrigger pad on sale
Product Description

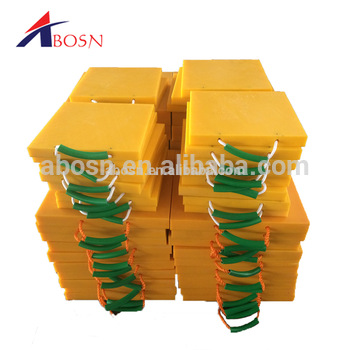

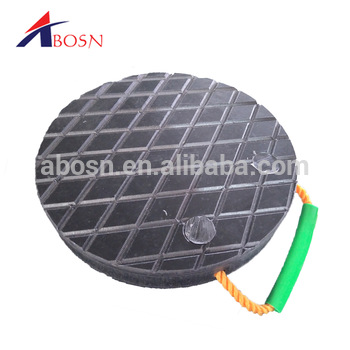

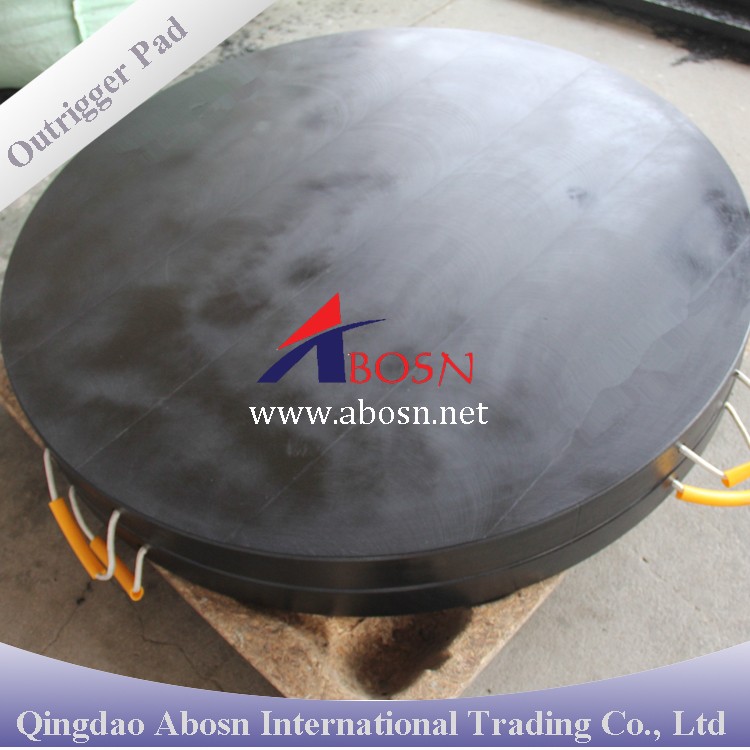

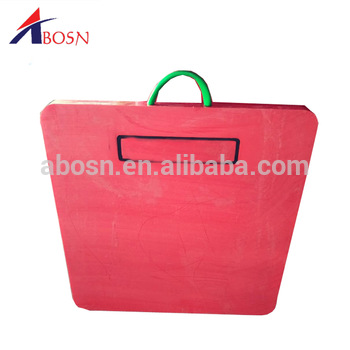

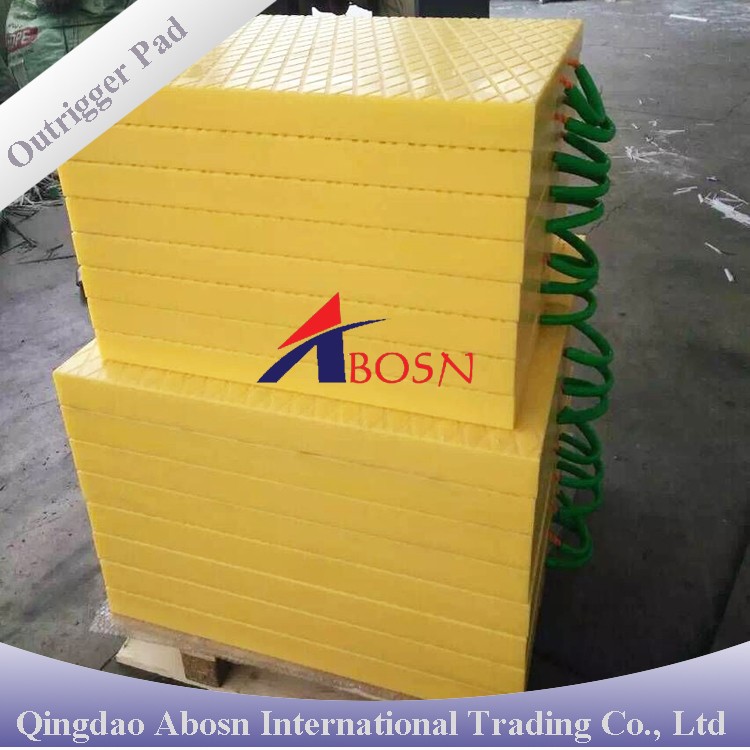

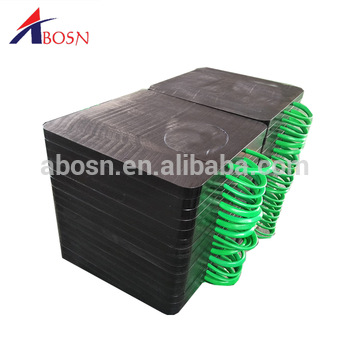

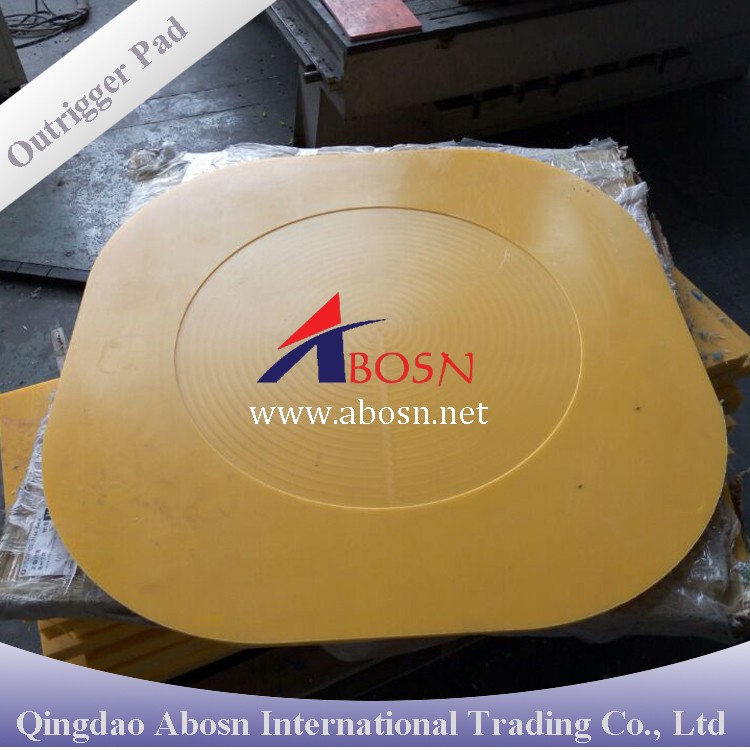

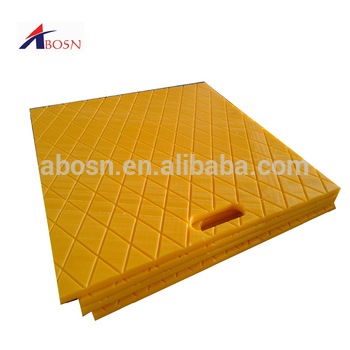

ABOSN Outrigger Pads are made from UHMWPE (ultra high molecular weight polyethylene) and are significantly more durable and lighter than traditional wood or steel pads. Wood outrigger pads tend to splinter, hold water, and rot overtime. Steel and aluminum pads tend to corrode, discolor, warp, and are heavy. High quality UHMW polyethylene outrigger pads for crane are supplied standard in black, but can be made in any color.
Features of High quality UHMWPE outrigger pads for crane
- Black standard
- Durable synthetic rope handles
- 15% the weight of steel pads
- Corrosion, chemical, wear and moisture resistant

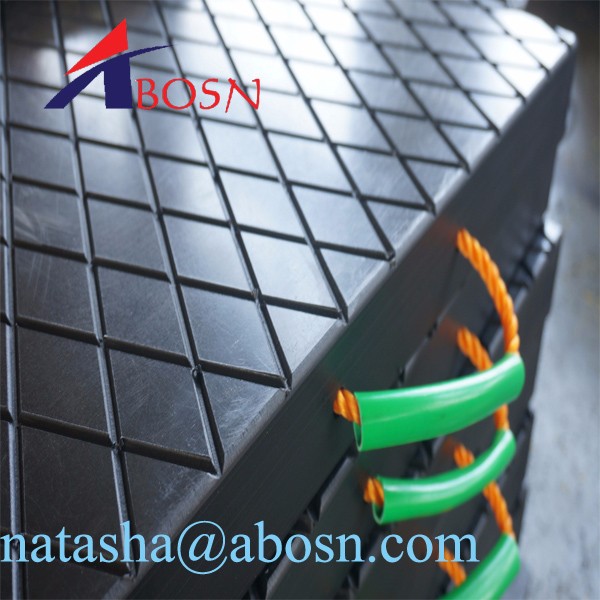

- Non-slip surface
- Work in sub zero temperatures
- Easy to transport and mount
- Does not rot or splinter
Properties of High quality UHMWPE outrigger pads for crane
| Item | Test result | Unit |
| Density | 0.93-9.98 | g/cm3 |
| Tensile strength | 25-28 | Mpa |
| Compression strength | 30-35 | Mpa |
| Elongation at break | 270-360 | % |
| Shore D hardness | 62-66 | HD |
| Coefficient of friction | 0.12-0.16 | |
| Notched Impact strenth charpy | 85-120 | kj/mm2 |
Standard Sizes and Load Capacity of UHMWPE outrigger pads
Size(mm) | Load Capacity(Tonnes) | Weight(KG) |
400 x 400 x 60 | 15.00 | 9.60 |
500 x 500 x 25 | 10.00 | 6.30 |
500 x 500 x 30 | 12.00 | 7.50 |
500 x 500 x 40 | 15.00 | 10.00 |
500 x 500 x 50 | 18.00 | 12.50 |
500 x 500 x 60 | 20.00 | 15.00 |
600 x 600 x 30 | 13.00 | 10.80 |
600 x 600 x 40 | 20.00 | 14.40 |
600 x 600 x 50 | 23.00 | 18.00 |
600 x 600 x 60 | 25.00 | 21.60 |
700 x 700 x 50 | 25.00 | 24.50 |
700 x 700 x 60 | 28.00 | 29.40 |
800 x 800 x 40 | 25.00 | 25.60 |
800 x 800 x 50 | 28.00 | 32.00 |
800 x 800 x 60 | 30.00 | 38.40 |
800 x 800 x80 | 35.00 | 51.20 |
Any small size of High quality UHMW polyethylene outrigger pads for crane/light weight cricket batting pads need us to cut , we can satisfy your special need .

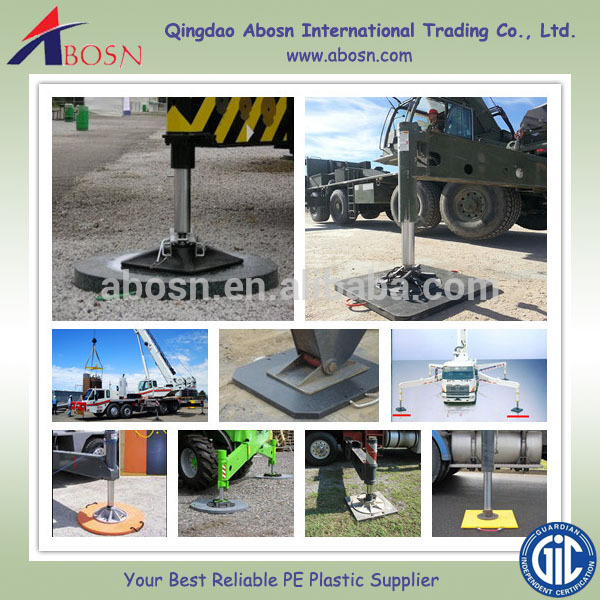

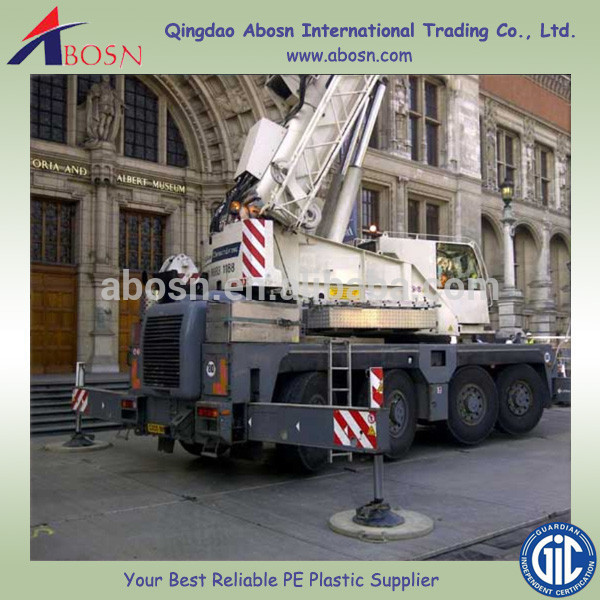

Application of High quality UHMWPE outrigger pads for crane
- Fire Trucks
- Utility Trucks
- Tree Trimmers
- Concrete Pumps
- Cranes
The UHMWPE Panels Engineering Palstic Crane Outrigger Pads Products has high visibility thus cutting down the chance for injuries commonly associated with pads that blend into the surrounding area rendering them unnoticeable and dangerous. UV stable and guaranteed for life the same as all our ULTRA line of plastic pads
Abosn more hot sell related products for your selection !
Temporary road ground mat / indoor floor mat / outdoor access mat
Easy Installation Customized UHMWPE Bucket Hopper Liner Coal Bunker Board for sale

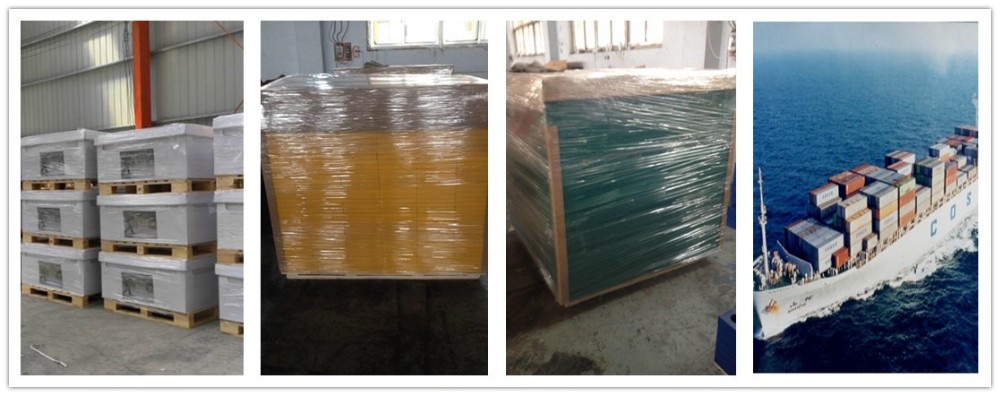

Packaging & Shipping
Packing | Plastic Film, Pallet, Wooden Box, Carton, etc. |
Shipping | International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean Transport, Air Transport |
Our Services
We focus on what our customers need and dedicate to produce satisfying products
and innovate new products to our clients.
After-sales service - ABOSN Product Quality is Guaranteed
*We have Strict QC and make sure every step of processing is for specification compliance.
*We track our goods from transportation to your sales in local market to help your successful business.
*Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience.
*If you break a pad under normal conditions, Abosn will replace it free of charge.
We promise to:
Produce exceptional quality products
Give knowledgeable, helpful and attentive service
Provide quick responses and fast turn-around times
For Engineer Plastics,UHMWPE is your first choice.
We would like to give you all the help!
Company Information
Basic Information
Business Type: Manufacturer, Trading Company
Main Products: UHMWPE sheet, UHMWPE rod, UHMNWPE strip, UHMWPE block, UHMWPE facing pads,UHMWPE chain guides,UHMWPE bearing,UHMWPE cutting boards,UHMWPE suction box cover,UHMWPE machining block,UHMWEP conveyor impact bar and other UHMWPE machined parts with all kinds of grades and color. Other PP, PVC, PTFE products can also be provided,and all have passed the latest ISO9001:2008 quality system.

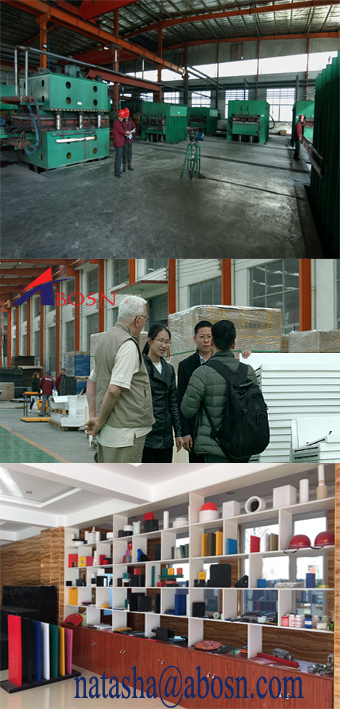

Factory Information
Factory Size: Nearly 50,000 square meters
Number of Workshops: 5
Certification: ISO9001:2008
Trade&Market
Main Markets:
- North America
- South America
- Europe
- Africa
- Russia
- Australia
- Southeast Asia
Annual Sales: 6,000,000 tons
FAQ
1. When can I get the price?
We usually quote within 6 hours after we get your inquiry.
If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and quality, we will provide you sample for free, as long as you afford the express freight.
3.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready fordelivery in 3-5 workingdays.
The samples will be sent to you via express and arrive in 3-5 days.
You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
Generally speaking, production lead time is within 2~4 weeks.
5.What is your terms of delivery?
We accept FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
6.Terms of payment?
Our usual payment is T/T, L/C. You can choose the best one according to your situation:
30% T/T deposit, 70% balance before delivery.100% TT in advance.
