uhmwpe polyethylene plastic conveyor impact bar/slide way/lead rail
Basic Info
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- Thickness:
- Size:
- Color:
- Board Density:
- Molecular Weight:
- Coefficient of friction:
- Water absorption:
- Certificate:
- Tensile strength:
- Elongation at break:
- Flexural strength:
- Free Samples:
Product Description
uhmwpe polyethylene plastic conveyor impact bar/slide way/lead rail
Product Description
Fight friction and reduce costs with long-wearing ABOSN UHMW Belt and Chain Guides. Available in stock, ABOSN offers the wearign ABOSN offers the widest range of standard profiles in the industry for guiding belts, chain cables. Standard crowned and flat versions are also available for use in guide rail systems.
Two-piece guide and channel design simplifies installation and replacement. Our Chain Guides are produced using only the highest quality virgin UHMW-PE material to ensure minimum friction and maximum wear resistance.
UHMWPE Advantages
1. Excellent wear resistance 2. Self-lubricating 3. Excellent abrasion Resistance
4. Blunt impact resistance 5. Corrosion and chemical resistance 6. Low-temperature resistance 7. Excellent machanical properties 8. Hygienic and non-poisonous. 9. Excellent machanical properties
Standard Size
2000 x 1000 x (8-200)mm | 4700 x 1200 x (8-200) mm |
3050 x 1220 x (6-200)mm (4' x 10' x (1/4"-8") | 5000 x 1300 x (8-200) mm |
2440 x 1220 x (6-200)mm (4' X 8' X (1/4"-8") | 4500 x 2000 x (10-200) mm |
3000 x 1500 x (8-300)mm | 6000 x 1800 x (8-200) mm |
*The size can be customer-made. Cut to size is available
Why choose us
- Ensure longer belt and chain life
- Simplified installation and replacement
- Precision-machined
- In stock, ready to go!
ABOSN Guides are far slicker than steel or other thermoplastics, resulting in less wear on expensive transfer belts and drive/attachment chains.
ABOSN Guides outwear abrasion-resistant steel by 3 to 1 and PTFE by 5 to 1. UHMW has he highest abrasion resistance of any thermoplastic for longer life, even in abrasive environments.
All ABOSN Chain Guides are machined to extremely close tolerances from compression molded sheets. This process results in a higher molecular weight and superior performance than possible with extruded UHMW profiles.
For extruted ABOSN Profiles, please contact us for speciality.
More Advantages:
- Quiet operation
- Lightweight
- Excellent chemical and corrosion resistance. See product specification for details.
- Mounting channels available to simplify installation

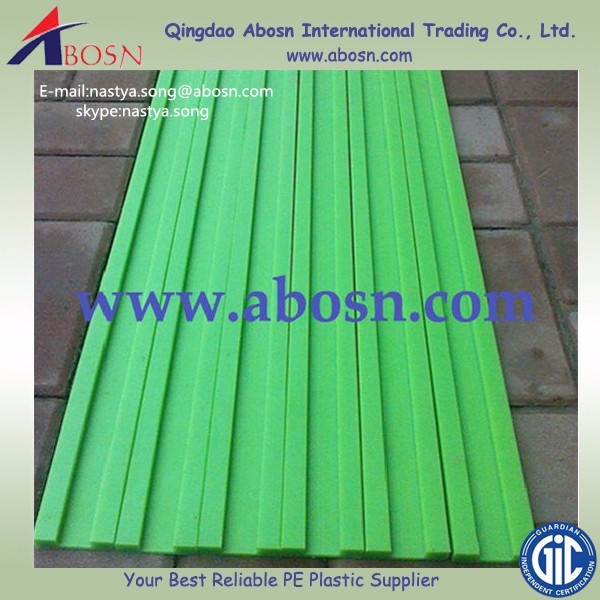

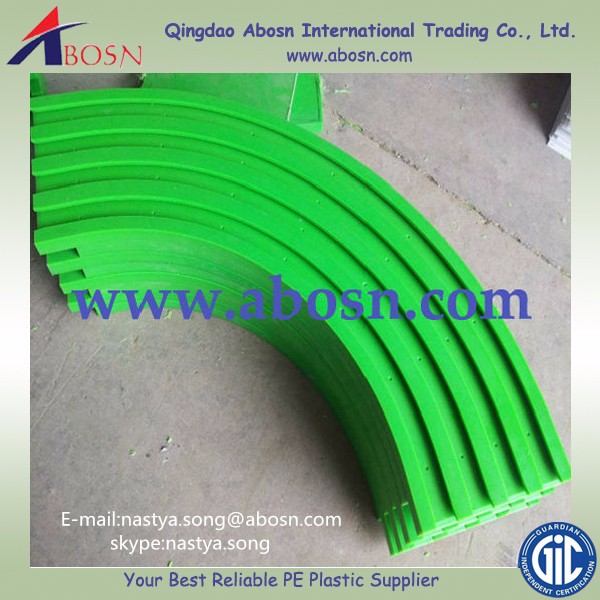

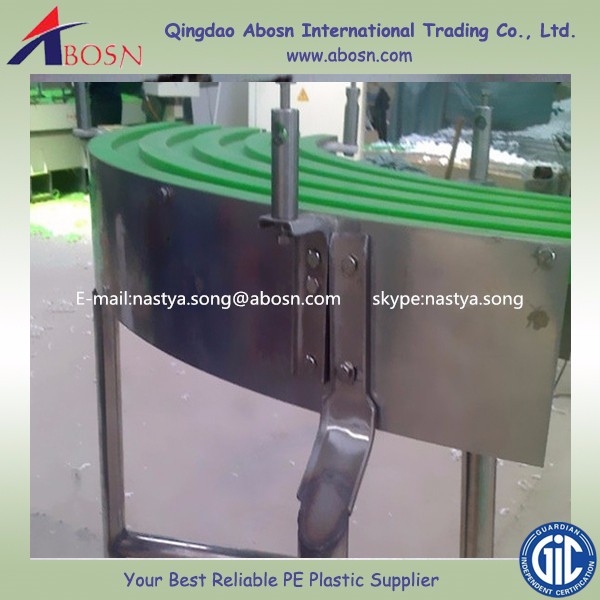

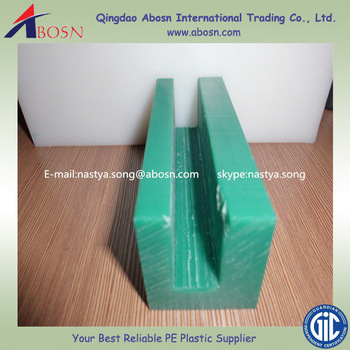

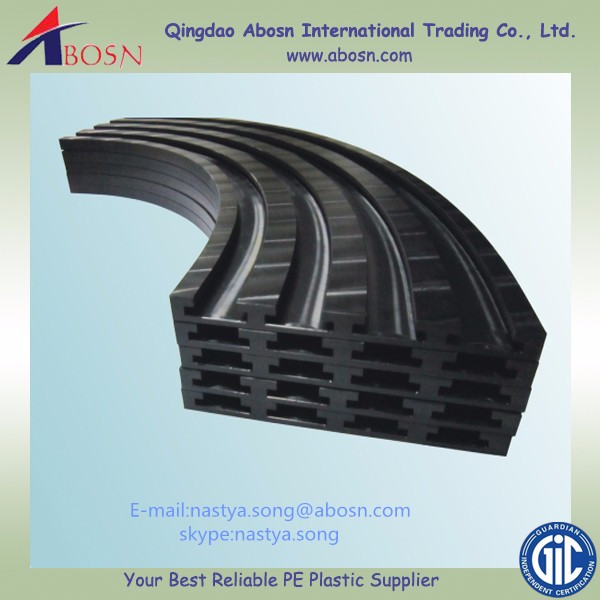

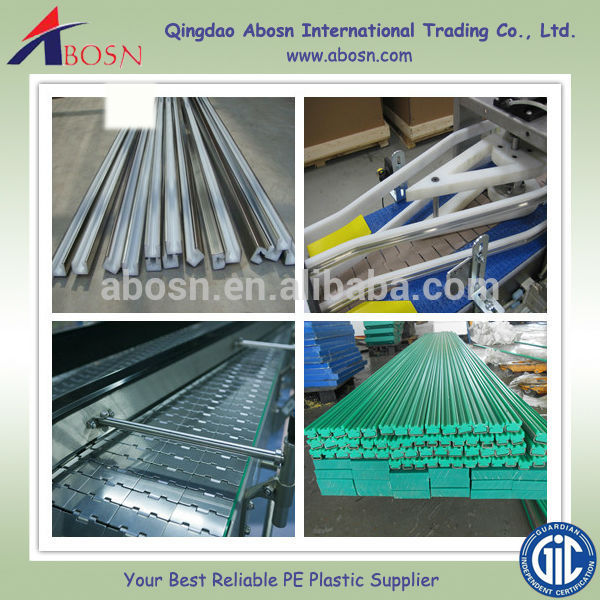

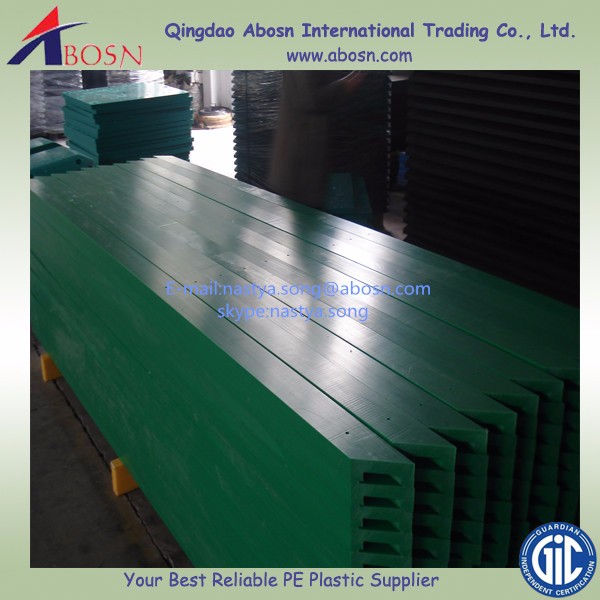

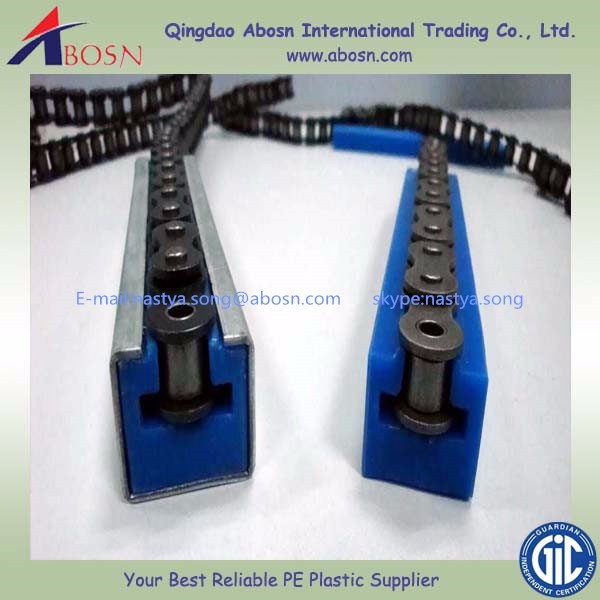

UHMWPE/HDPE Chain Guide Rail Images
Data of Abosn UHMWPE Board
Physical Properties | Test Method | Unit | Value |
Density | ASTMD792 | g/cm3 | 0.93 -0.97 |
Water Absorption | ASTMD570 | % | < 0.01 |
Mechanical Properties | Test Method | Unit | Value |
Max Working Temperature | - | °C | 90 |
Minimum Working Temperature | - | °C | -269 |
Tensile Strength | ASTMD638 | MPa | 40 |
Elongation at Break | ASTMD638 | % | 300-500 |
E-Modulus | GB1040-79 | MPa | 820 |
Bending Strength | GB9341-88 | MPa | 26 |
Bending E-Modulus | GB9341--88 | MPa | 760 |
Compression Strength (deformation 10%) | ASTMD695 | MPa | 21-25 |
Compression E-Modulus | GB1041-79 | MPa | 550 |
Shear Strength | GB1041-79 | MPa | 33 |
Hardness | ASTMD240 | Shore D | 65 -68 |
Coefficient of Friction | - | - | 0.12-0.15 |
Dynamic Coefficient Friction | GB10006-88 | - | 0.07-0.11 |
Thermal Properties | Test Method | Unit | Value |
Coefficient of Linear Expansion | GB1036-89 | °C-1 | 1.5×10-4 |
Coefficient of Heat Conductivity ( 23 °C ) | GB3399-82 | Cal/cm sec °C | 8.5×10-4 |
Special Heat ( 23 °C) | GB3399-82 | Cal/g°C | 0.44 |
Electrical Properties | Test Method | Unit | Value |
Volume Resistivity | GB1410-78 | Ohm cm | >1015 |
Surface Resistivity | GB1410-78 | Ohm | >1015 |
Dielectric Constant ( 1MHZ ) | GB1409-78 | - | 3 |
Dielectric Strength | GB1408-78 | Kv/mm | 70 |

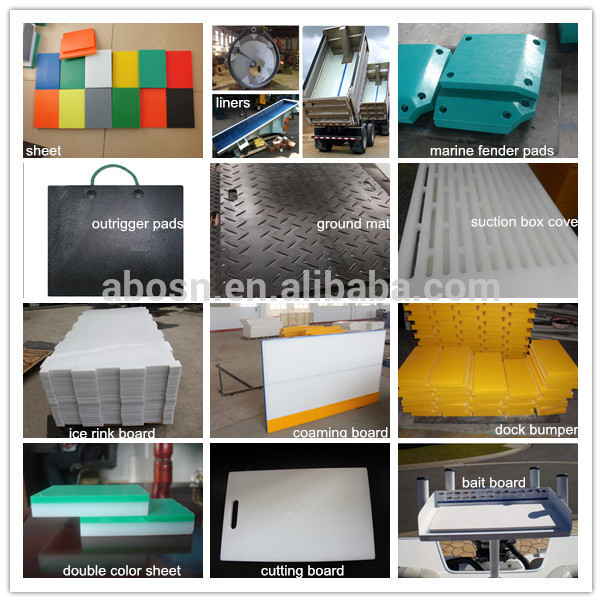

MORE hot sales products for your selection:

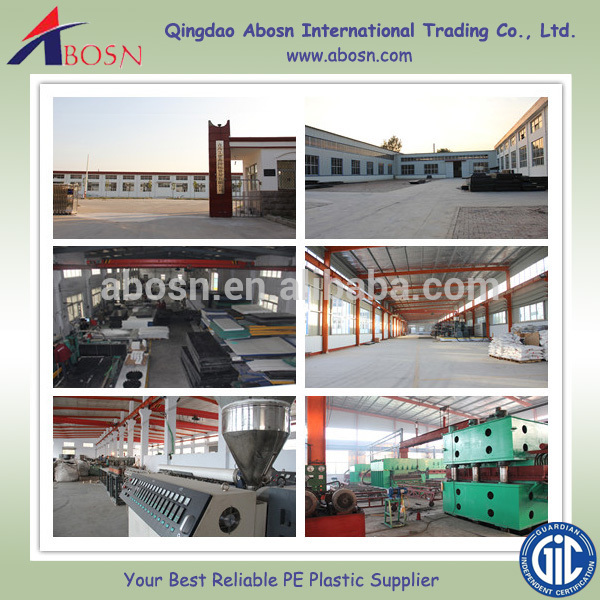

Our Workshop
Our Services
We focus on what our customers need and dedicate to produce satisfying products and innovate new products to our clients.
After-sales service - ABOSN Product Quality is Guaranteed
- We have Strict QC and make sure every step of processing is for specification compliance.
- We track our goods from transportation to your sales in local market to help your successful business.
- Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience.
- If you break a pad under normal conditions, Abosn will replace it free of charge.

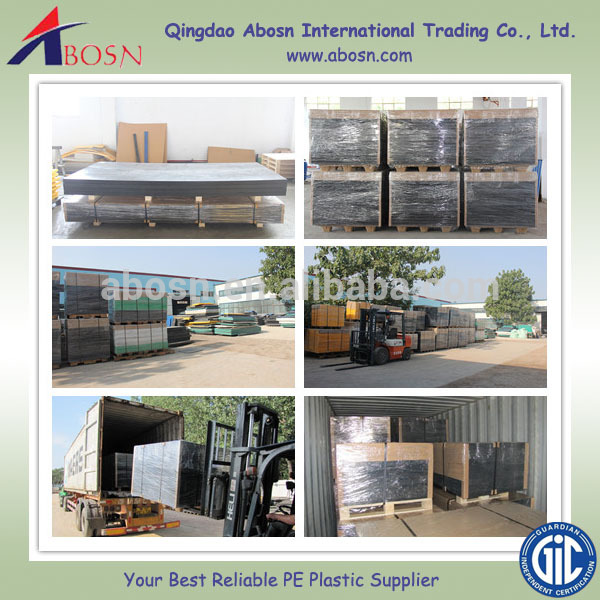

Packaging & Shipping
Packing | Plastic Film, Pallet, Wooden Box, Carton, etc. |
Shipping | International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean Transport, Air Transport |
Should you have any questions or needs, please do not hesitate to contact us.
