Eco-friendly Reclaimed Material Insulation Chemical Resistant uhmwpe rods from ABOSN
Basic Info
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- Thickness:
- Size:
- Color:
- Density:
- Molecular Weight:
- Shape:
- Coefficient of friction:
- Water absorption:
- Certificate:
- Tensile strength:
- Elongation at break:
- Flexural strength:
Product Description
Electrical insulation high density polyethylene rods/hdpe clear plastic welding rod
Product Description
UHMW-PE (Ultra High Molecular Weight Polyethylene) is thermoplastic engineering plastics, which is normally used in the area of marine, transport, coal-mining, machinery, paper-making, textile industry, etc. UHMWPE is often referred to as the world’s toughest polymer.
High Density Polyethylene (HDPE) is more rigid and harder than lower density PE’s. Its tensile strength is four times that of LDPE and its compressive strength is three times better. Compared to UHMWPE it has approximately 1/3 the wear resistance and 1/2 the impact resistance.
HDPE Rod areas of applications: various kinds of machinery accessories and components, including food machinery gear, tubine, worm, bearings. Chemical pumps, valves, dampers, filter plate.
Advantages of UHMWPE and HDPE Rod
1. Low coefficient of friction 2. Wear resistance 3. Blunt impact resistance
4. Corrosion resistance 5. Hygienic and non-poisonous. 6. Low-temperature resistance
7. Excellent machanical properties 8. Low-density 9. Good chemical resistance
10. Excellent dielectric properties 11. Water repellent
Standersize
Diameter: 10-500mm
Length: no limit
Physical Properties | Test Method | Unit | UHMWPE Value |
Density | ASTMD792 | g/cm3 | 0.93 -0.97 |
Water Absorption | ASTMD570 | % | < 0.01 |
Mechanical Properties | Test Method | Unit | Value |
Max Working Temperature | - | °C | 90 |
Minimum Working Temperature | - | °C | -269 |
Tensile Strength | ASTMD638 | MPa | 40 |
Ultimate Tensile Strength | GB1040-79 | MPa | 38 |
Elongation | GB1040-79 | % | 12 |
Elongation at Break | ASTMD638 | % | 300-500 |
E-Modulus | GB1040-79 | MPa | 820 |
Notched Impact Strength | GB1843-80 | KJ/m2 | ok |
Bending Strength | GB9341-88 | MPa | 26 |
Bending E-Modulus | GB9341--88 | MPa | 760 |
Compression Strength (deformation 10%) | ASTMD695 | MPa | 21-25 |
Compression E-Modulus | GB1041-79 | MPa | 550 |
Shear Strength | GB1041-79 | MPa | 33 |
Hadrness | ASTMD240 | Shore D | 65 -68 |
Coefficient of Friction | - | - | 0.12-0.15 |
Dynamic Coefficient Friction | GB10006-88 | - | 0.07-0.11 |
Thermal Properties | - | - | - |
Coefficient of Linear Expansion | GB1036-89 | °C-1 | 1.5×10-4 |
Coefficient of Heat Conductivity ( 23 °C ) | GB3399-82 | Cal/cm sec °C | 8.5×10-4 |
Special Heat ( 23 °C) | GB3399-82 | Cal/g°C | 0.44 |
Electrical Properties | - | - | - |
Volume Resistivity | GB1410-78 | Ohm cm | >1015 |
Surface Resistivity | GB1410-78 | Ohm | >1015 |
Dielectric Constant ( 1MHZ ) | GB1409-78 | - | 3 |
Dielectric Strength | GB1408-78 | Kv/mm | 70 |
Six Reasons You Choose Us
- Professional manufacturing experience with own factory
- 100% raw material for processing
- Strict quality Control
- In stock for quick delivery
- OEM available, color, size, shape and specifications can be customer-order
- ISO 9001:2008 Certification
Images

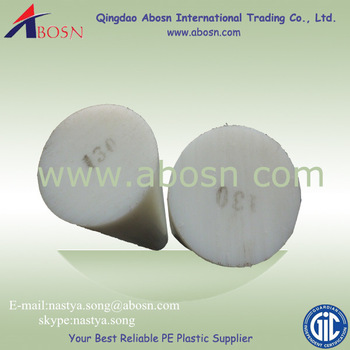

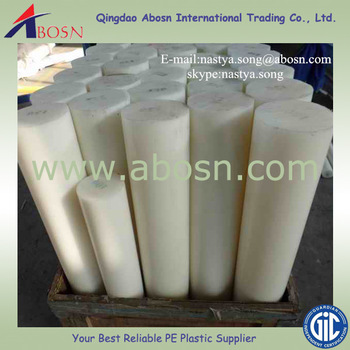

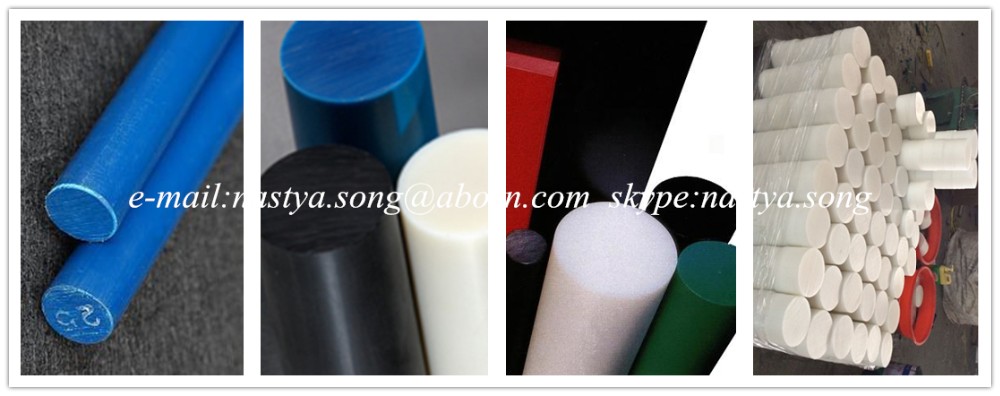

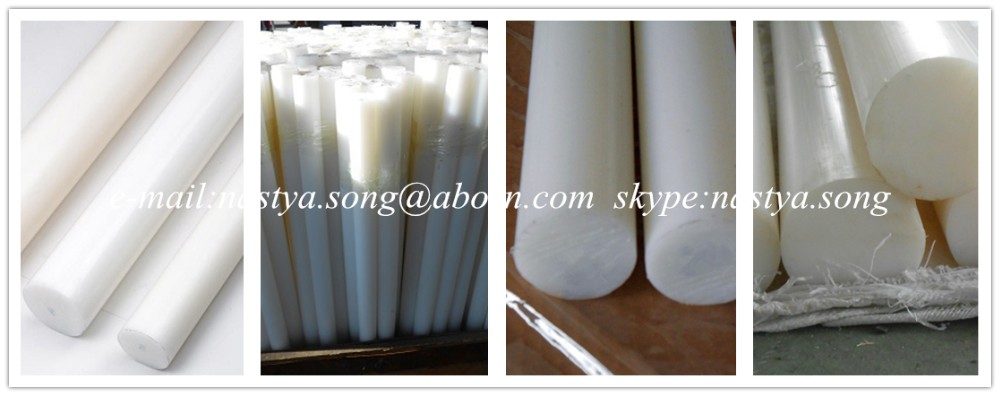

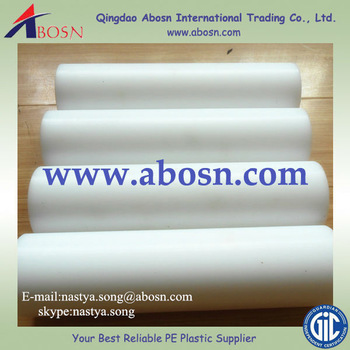

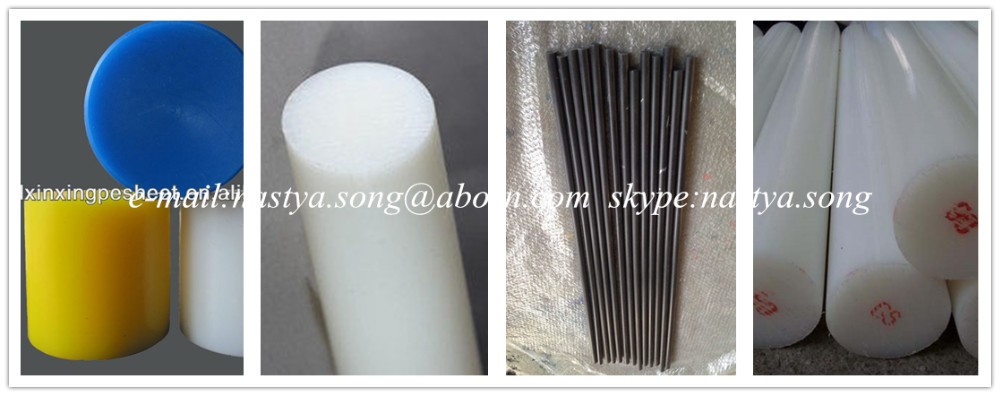

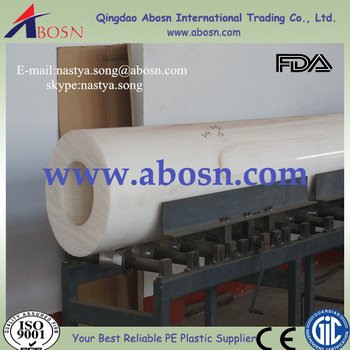

* solid colorful HDPE Rod Professional Manufacturer in China,15mm - 200mm HDPE Polyethylene Rod, UHMW Polyethylene Rod
Good Quality of Our HDPE and UHMWPE Sheet
- Very flat on surface
- Thickness tolerance is +2 -0,some made according to your requirements
- Pure color and any color can be matched according t your needs
- Give you an accurate size of UHMW-PE/HDPE Sheet with advanced machine.
- Different shaped UHMW-PE Sheets can be made by us like bending sheet.
- Special specifications can be customized according to your different application, , like anti-UV, fire-resistant,anti-static and with other characters
Packaging & Shipping
Packing | Plastic Film, Pallet, Wooden Box, Carton, etc. |
Shipping | International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean Transport, Air Transport |
Should you have any questions or needs, please do not hesitate to contact us.
Our Services
We focus on what our customers need and dedicate to produce satisfying products and innovate new products to our clients.
After-sales service - ABOSN Product Quality is Guaranteed
- We have Strict QC and make sure every step of processing is for specification compliance.
- We track our goods from transportation to your sales in local market to help your successful business.

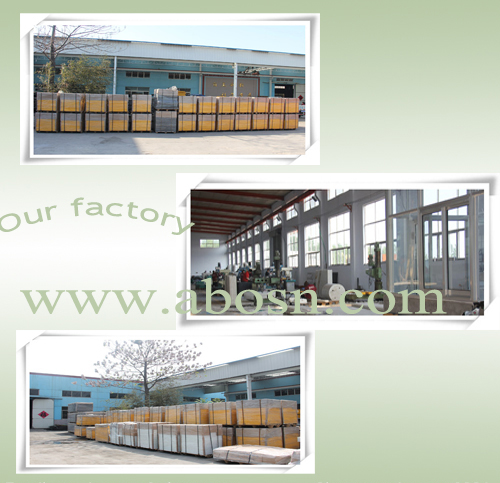

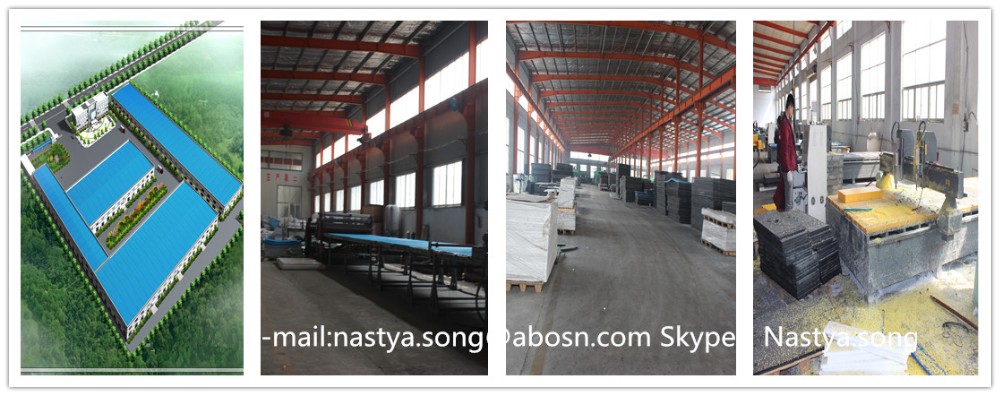

- Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience.
- If you break a pad under normal conditions, Abosn will replace it free of charge.
Company Information
Contact Us
Sold By

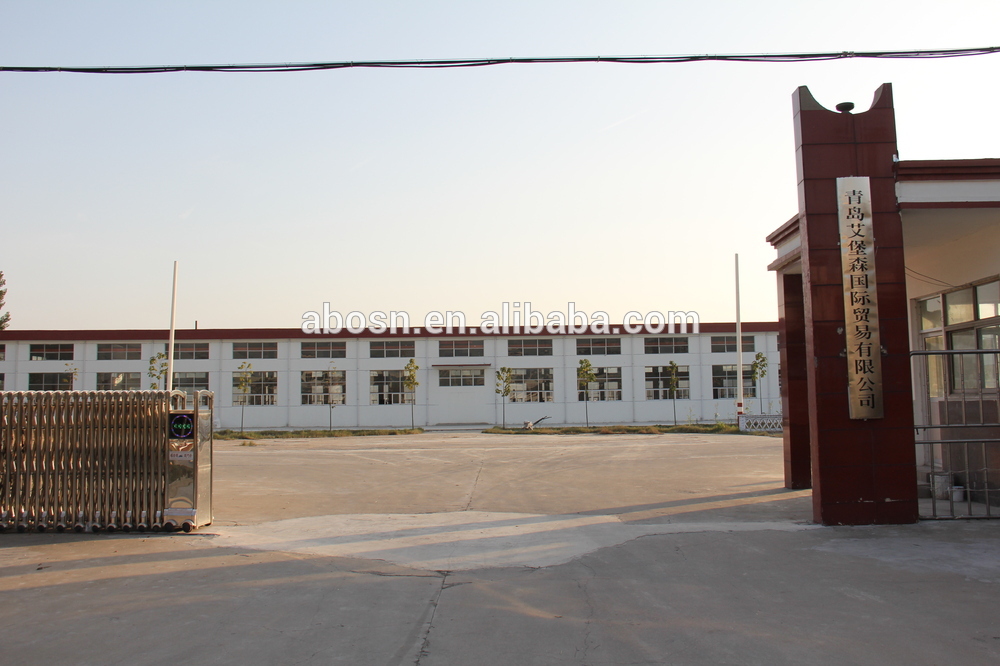

Qingdao Abosn was located in Qingdao, the third-largest port city in China; with convenient traffic and developed imports and exports. As the qingdao...
