Basic Info

Place of Origin:Shandong, China (Mainland)
Brand Name:ABOSN
Model Number:AB-1724
Material:PE
Thickness:6-300mm
Size:CUSTOMIZED, 6-300mm thickness UHMWPE sheet
Color:Natural, Black, Red, Green, Blue,Yellow...
Density:0.93-0.97 g/cm³
Molecular weight:0.5-9 million
Water absorption:≤0.1%
Tensile strength:40 MPa
Flexural strength:23-27 MPa
Certificate:ISO9001: 2008
Coefficient of friction:0.12-0.15
Elongation at break:300%-500%
Usage:uhmwpe rod polyethyle for orthopedic implants

Product Description

uhmwpe rod polyethyle for orthopedic implants | flexible polyethylene plastic rod

Product Description

UHMWPE/HDPE Sheet and Rod is a general purpose UHMWPE, is suited to engineered applications where its unique properties of excellent impact strength, wear and abrasion resistance are required.

Key Benefits of UHMWPE/HDPE Sheet and Rod:
Impact strength - it is virtually unbreakable
Light weight - easy to handle without special equipment
Physiologically inert - approved for food applications
Electrical insulation - it is a good insulator
Weatherproof - it doesn't absorb water chemical
Resistance - resists corrosive chemicals (Sulphuric Acid, Caustic Soda)
Abrasion resistance - rated better than carbon steel for sliding abrasion applications
Low coefficient of friction - it does not require lubrication

UHMWPE/HDPE Sheet and Rod Applications:
Chute and hopper linings (flow promotion)
Bulk storage
Material handling
Mechanical bearing parts
Wear parts

orthopedic implants
Food machinery equipment

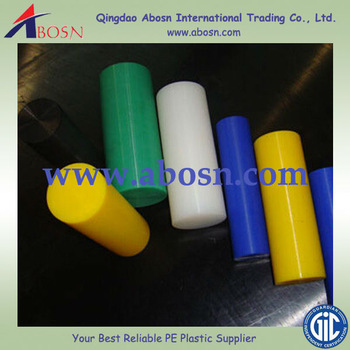

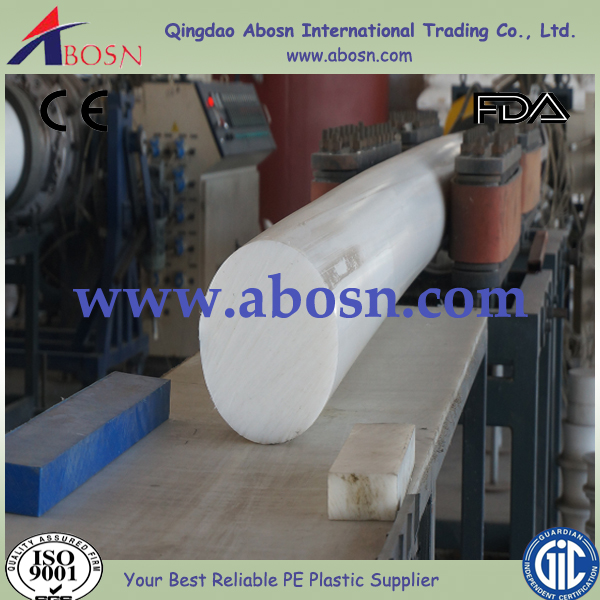

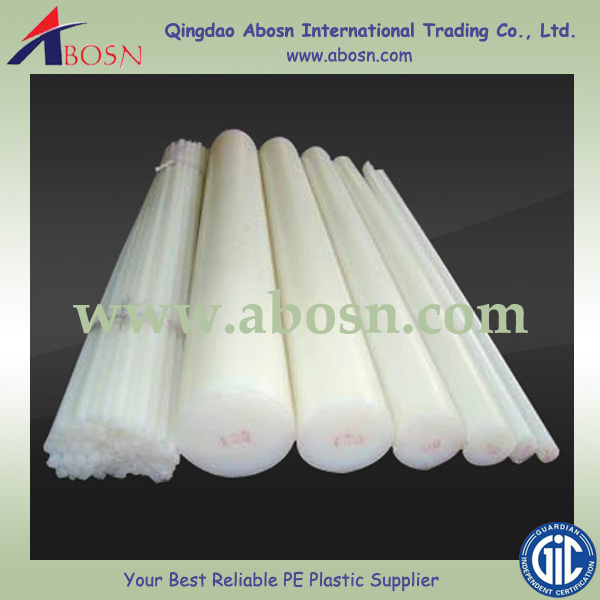

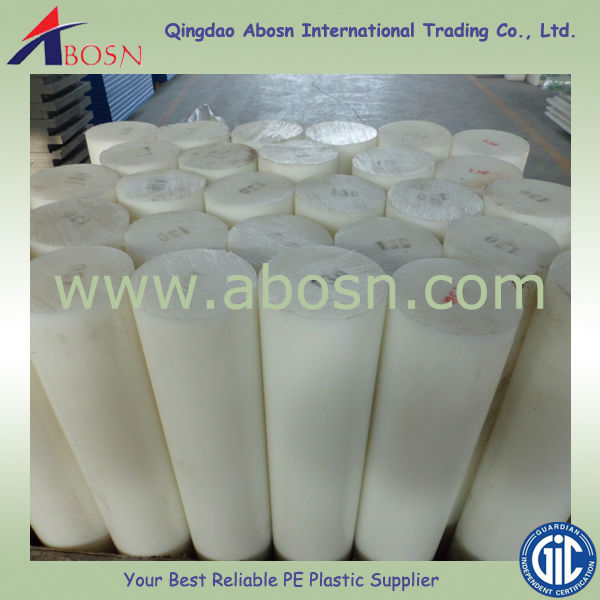

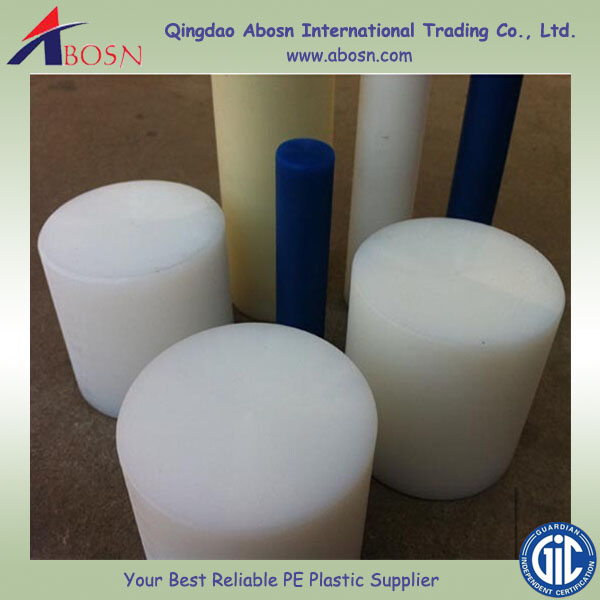

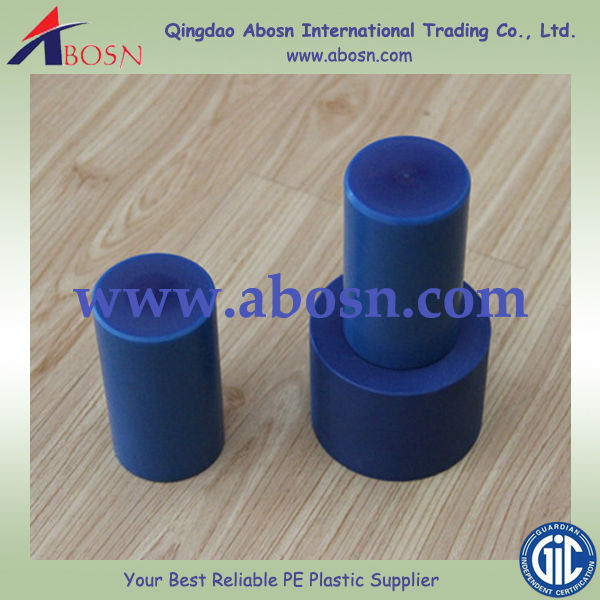

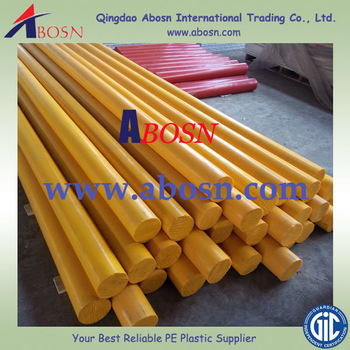

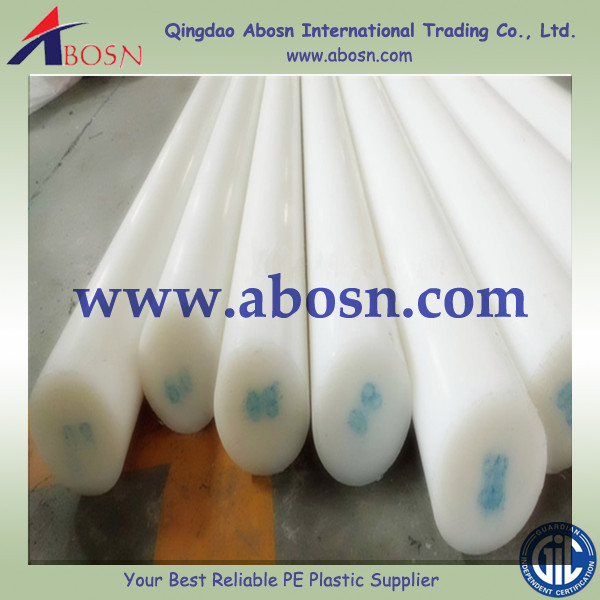

1.UHMWPE rod

Product name	UHMWPE rod
Features	Self-lubricating. Good Abrasion&wear resistance (15 times more resistant to abrasion than carbon steel). Corrosion & impact resistant. low temperature resistant. Non-water absorption Easy to machine
Size	Dia(diameter):20-300mm Length:250mm,500mm,1000mm,etc. * We can also provide any other size as your special need.
Color	white,black,red,blue,green,yellow,etc.
Application	Carbon steel, stainless steel, can be used instead of bronze material for textile, papermaking,food machinery, medical, transportation, coal, chemical industry and other departments. Such as the textile industry technology, the shuttle is picking stick, gear, connecting rod, scan,buffer block, an eccentric block, swing rod bushing, consequences and impact wear resistance of parts. In addition because of its wear resistance than carbon steel, and can do all kinds of machinery parts, including food machinery gear, worm gear, worm, bearing etc..

Property data sheet of UHMWPE rod

Item	Test method	Test result	unit
Specific weight	ASTM D-792	0.96	g/cm3
Yield strength	ASTM D-638	25	MPa
Ultimate strength	ASTM D-638	45	MPa
Breaking Elongation	ISO527	355	%
Impact strength	ISO179	130	Mj/mm2
Abrasion	ISO15527	83	Steel=100
Shore Hardness	ISO868	65	Shore D
Friction Coefficient	ASTM D-1894	0.11	Unitless
Coefficient of thermal expansion	ASTM D-696	0.0002	℃
Volume resistifity	IEC600093	≤1000	∩*cm
Surface resistifity	IEC600093	≤1000	∩
Water Absorption	ASTM D-570	0.0094	%
Melt point	ASTM D-3417	138	℃

2. HDPE rod

Product name	HDPE rod
Features	Self-lubricating. Lightweight Durable Corrosion & impact resistant. Great weather resistance Easy to weld but difficult to bond. Easily fabricated
Size	Dia(diameter):10-480mm Length:250mm,500mm,1000mm,etc. * We can also provide any other size as your special need.
Color	white,black,red,blue,green,yellow,etc.
Application	Carbon steel, stainless steel, can be used instead of bronze material for textile, papermaking,food machinery, medical, transportation, coal, chemical industry and other departments. Such as the textile industry technology, the shuttle is picking stick, gear, connecting rod, scan,buffer block, an eccentric block, swing rod bushing, consequences and impact wear resistance of parts. In addition because of its wear resistance than carbon steel, and can do all kinds of machinery parts, including food machinery gear, worm gear, worm, bearing etc..

Property data sheet of HDPE rod

Property	Testing Method	Value
Molecular Weight 1E6 g/mol	ASTM D6474	1-3
Density g/cm³	ISO 1183-1	0.94-0.98
Abrasion %	ISO15527	100
Dynamic coefficient of friction	ISO8295	≤0.15
Shore hardness	ISO868	≥63
Water absorption %	ASTM D-570	≤0.1
Temperature resistance ⁰C		-200 to +80
Elongation at break at 23 degree %	ISO 527	≥200
Melt Temperature ⁰C		130-140

More products please see ground mats, outrigger pad, hockey shooting pads etc.

Packaging & Shipping

Packing	Plastic Film, Pallet, Wooden Box, Carton, etc.
Shipping	International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean Transport, Air Transport

Our Services

We focus on what our customers need and dedicate to produce satisfying products and innovate new products to our clients.

After-sales service - ABOSN Product Quality is Guaranteed

We have Strict QC and make sure every step of processing is for specification compliance.

We track our goods from transportation to your sales in local market to help your successful business.

Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience.

If you break a pad under normal conditions, Abosn will replace it free of charge.
