High impact resistance virgin UHMWPE Sheets
Basic Info
- Place of Origin:
- Brand Name:
- Model Number:
- Material:
- Thickness:
- Size:
- color:
- Certification:
Product Description

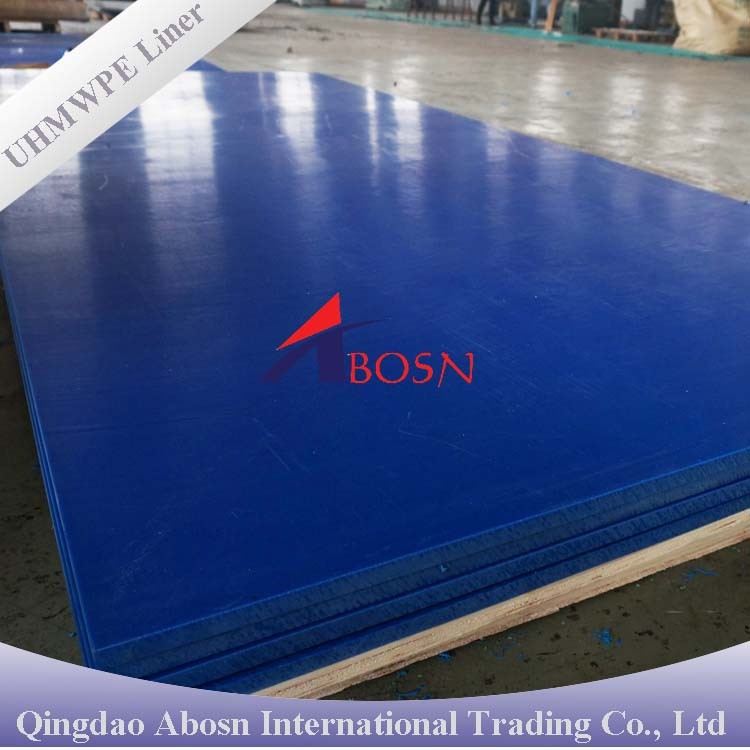

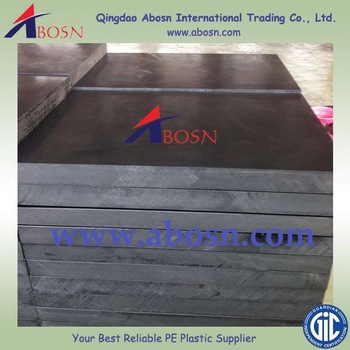

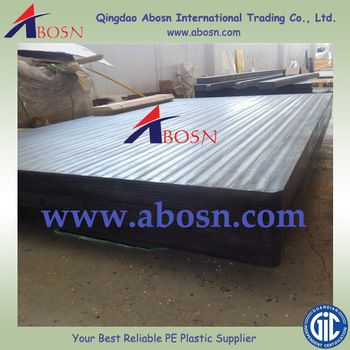

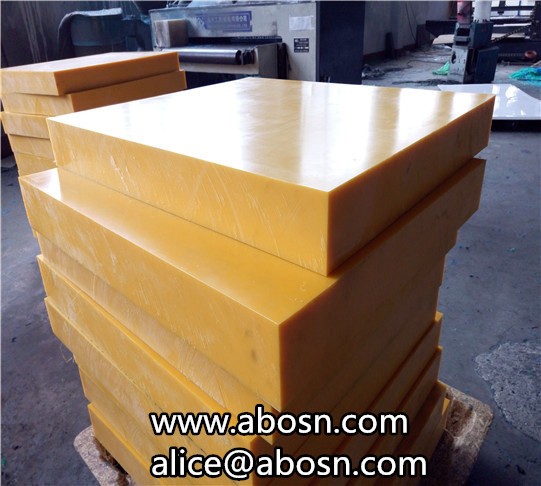

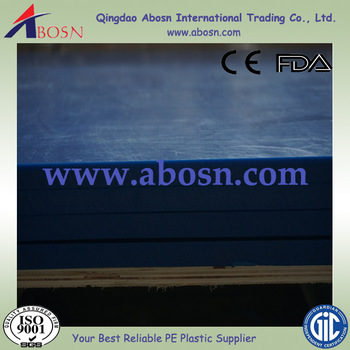

High impact resistance virgin UHMWPE Sheets
Product Description
About UHMWPE Sheet
Ultra High Molecular Weight Polyethylene (UHMW, UHMWPE) is a thermoplastic characterised by long molecular chains and high resistance to cut, wear and chemical corrosion.
Its extremely long molecular chains – with molecular weight ranging between 3.1 and 5.67 million – give it the ability to withstand high impact and extreme load.
Used where strength and durability are especially important, its applications include high-stress machine parts and artificial joints.
Tivar88 Grade UHMWPE Sheet Specifications:
Project name | Unit | Standard |
Impact strength | KJ/m2 | ≥140 |
Water absorption | % | ≤0.01 |
Compressive strength | Mpa | ≥30 |
Ball indentation hardness | N/mm2 | ≥20 |
Friction coefficient |
| 0.11-0.17 |
Abrasion loss | G/cm2 | 3.8×10-4 |
Heat distortion temperature | °C | 85°C |
OEM Sevrice :

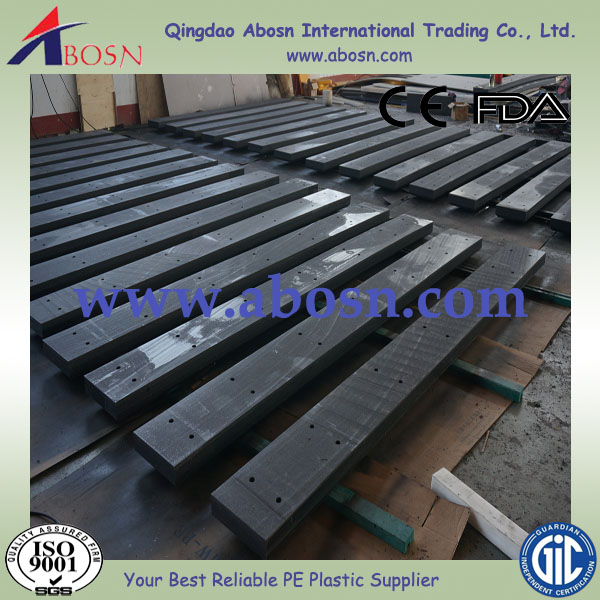

We provided you with various OEM Sevrice .UHMWPE Block ,HUHMWPE Impact bar ,UHMWPE Strip ,UHMWPE rod and otherUHMWPE parts .
Tivar88 Grade UHMWPE Sheet Standard Size:
1.Thickness: 6 - 300mm
2. Width: max 2000mm
3. Normal standard size:
Length(mm) | Width(mm) | Thickness(mm) |
2000 | 1000 | 6-300 |
3000 | 1500 | 6-300 |
4700 | 1200 | 6-300 |
5000 | 1300 | 6-300 |
4500 | 2000 | 6-300 |
3050 | 1220 | 6-100 |
Any small size need us to cut , we can satisfy your special need .

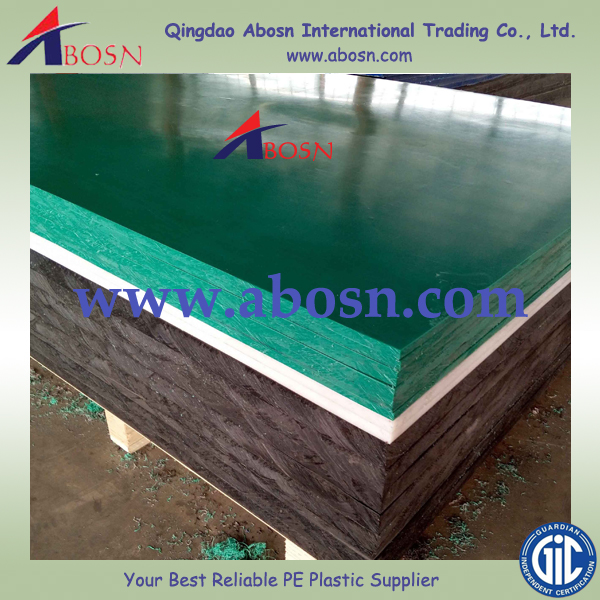

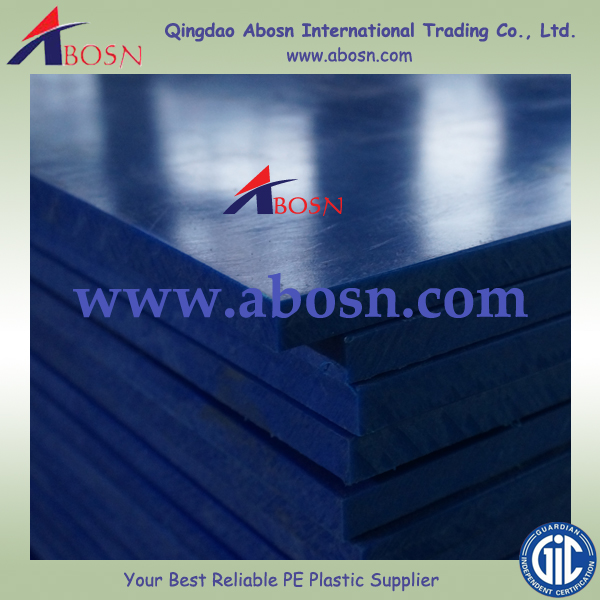

Tivar88 Grade UHMWPE Sheet Color
Black,Blue,Green,White,Yellow,Red,Orange or other customer color according to your requirements
Applications
The high strength, impact resistance and durability of UHMW make it suitable for many different industrial applications. These include:
- Conveyor systems: UHMW is used as roll bearings and corner tracks in conveyor systems such as in mining, saw mills and food processing plants. It is especially useful in food conveyor systems due to its non-toxic, tasteless and odourless properties
- Wear pads: UHMW is extremely useful for high impact and high friction applications, and frequently used as wall linings in quarries and for other mining applications. It is also used for the protection of metal-on-metal impact in heavy industrial applications, and for turntable protection on semi-trailers
- Easy sliding: UHMW is used to line dump trucks so that the material being dumped clears efficiently. Without UHMW, dump trucks frequently return with much of the original material still in the tray, which is referred to as the “return load”. This return load reduces the efficiency of the dump cycle which in turn increases the time that these trucks require to complete the task at hand. UHMW also protects the dump truck bin metal from impact and friction damage. Additionally, UHMW is used to slide heavy industrial components into place, such as large storm water pipes under roads and highways
- Mechanical engineering: UHMW is used for a wide variety of machine components, including bottle handling machine parts, gears, bearings and moving parts in weaving machines
- Medicine: The durability and chemical safety of UHMW make it the material of choice for hip and knee replacements
Our Services
We focus on what our customers need and dedicate to produce satisfying products and innovate new products to our clients.
After-sales service - ABOSN Product Quality is Guaranteed
- We have Strict QC and make sure every step of processing is for specification compliance.
- We track our goods from transportation to your sales in local market to help your successful business.
- Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience.
- If you break a pad under normal conditions, Abosn will replace it free of charge
Packaging & Shipping
carton case or other packing can be made according to your requirment
Company Information
Why Choose Us
1.More than 15 years' professional manufacturing experience with own factory.
2.Virgin 100% material produced, high quality with good surface and color make ensured
3.GB/T 19001-2008 ; ISO 9001:2008 certification.
4. Competitive price, In stock, Fast delivery, and Excellent service.
5.OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
Contact US
High impact resistance virgin UHMWPE Sheets
Sold By
Qingdao Abosn was located in Qingdao, the third-largest port city in China; with convenient traffic and developed imports and exports. As the qingdao...
Contact Seller
MessageBuyer Protection
-Secure payments
-Guaranteed refunds
-Escrow protection on every order
-Guaranteed delivery of goods
Product Groups
- Ungrouped
- UHMWPE Fender facing pads
- UHMWPE Liner sheet
- UHMWPE Wear resisting strip
- UHMWPE Dewatering elements
- UHMWPE Dock bumper
- Crane Outrigger Pads
- UHMWPE Chain guides
- UHMWPE Rod
- PTFE Sheet
- UHMWPE Sheet
- Ground protection mat
- PP sheet
- Conveyor impact bar
- Cutting Board

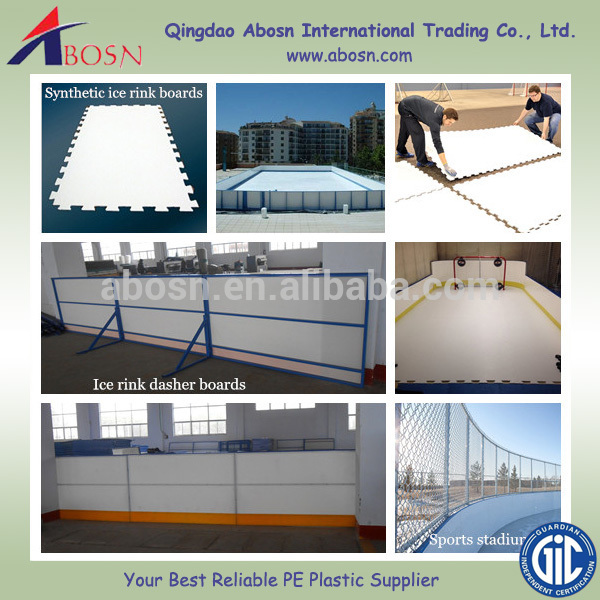

- Ice Rink System
