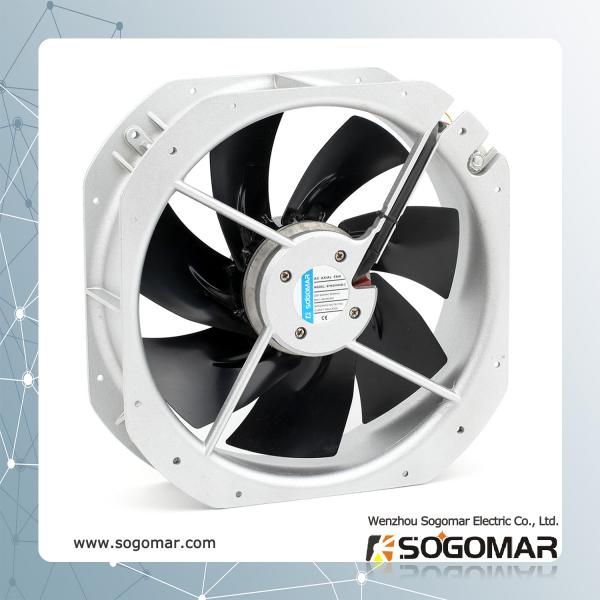

Axial fan 280x280x80mm metal blades for board cooling

Purchase Qty.:
(Piece)

FOB Unit Price:

US $31.5

Get Latest Price>

Port:

Ningbo or Shanghai

Production Capacity:

1000000pcs/year

Payment Terms:

L/C, T/T,Western Union,Paypal

Contact Now Start Order

You can manage your favorites in member center.

Favorites

Basic Info

Material:Metal
Blade Material:Stainless Steel
Type:Axial Fan
Electric Current Type:AC
Mounting:Wall Fan
Certification:CE,CCC
Transport Package:54*33*33.5cm,5PCS/Carton,15kgs
Specification:280x280x80mm
Trademark:SOGOMAR and OEM
Origin:China
Bearing:ball bearing
Coil:100% copper coil
Connection:2-leadwire or terminal type
HS Code:8414599050

Product Description

Brief description
SF28080
Size: 280x280x80mm
Voltage: 24-48VAC, 110-120VAC, 220-240VAC
Frequency: 50Hz, 60Hz and 50/60Hz
Bearing: Ball bearing
Connection: Terminals
Material: Alu frame, steel blades, copper coil.
Color: Black or silver
Package: 54*33*33.5cm,5PCS/Carton,15kgs

SF28080

Parameters:

Type 产品型号	Rated Voltage 额定电压 V	Frequency 频率 HZ	Current 电流 A	Power 功率 (W)+10% -20%	Speed 回转速度 (min-1)	Max Air Flow 最大风量 CFM m³/h		Static Pressure 最大静压 (PA)	Noise 噪音 (dB)	Capacitor 电容 (μF)
SFM28080B-1	115	50	1.10	110	2550	1097	1860	140	69	8.0/250
SFM28080B-1	115	60	1.20	136	2800	1204	2040	140	70	8.0/250
SFM28080B-2	230	50	0.48	105	2550	1097	1860	140	69	3.0/450
SFM28080B-2	230	60	0.62	140	2800	1204	2040	140	70	3.0/450
SFM28080B-3	380	50	0.29	115	2550	1097	1860	140	69	1.0/630
SFM28080B-3	380	60	0.39	150	2800	1204	2040	140	70	1.0/630

Information:

Motor: External rotor motor structure. Impedance protect
Frame: Aluminium die-casting, surfaces is finished by anti-corrosion treatment with primary color or black electrophoresis anti-corrosion treatment
Impeller: Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity Range: Temperature -30ºC ~ +90ºC Humidity 0% ~ 95%
Protection: Motor Internal with automatic recovery thermal protector
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
insulting system: Design according to IEC61858 Grade F
Protecting Grade: IP44
Rotation Direction of Blades: CCW seen from the front impellers
Unit Weight: 2.8kg

Dimensions:
