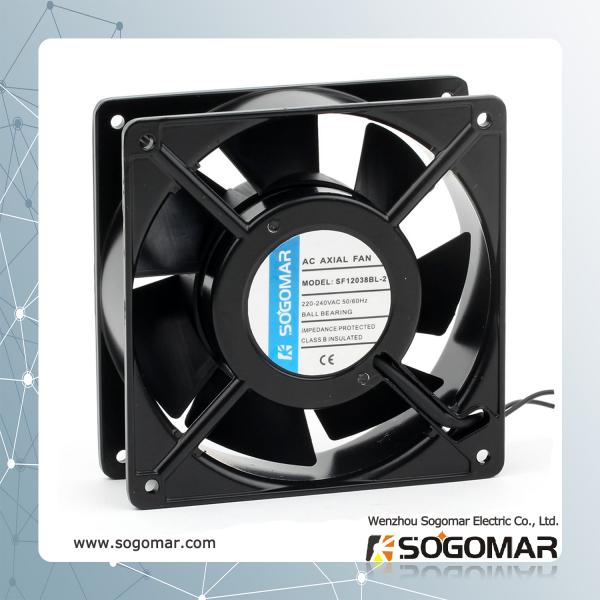

Axial fan 4 inch 120x120x38mm panel fan for board cooling

FOB Price:

Min.Order:

US $2.70-3.7/Piece

1 Piece

Get Latest Price>

Port:

Ningbo or Shanghai

Production Capacity:

1000000pcs/year

Payment Terms:

L/C, T/T,Western Union,Paypal

Contact Now Start Order

You can manage your favorites in member center.

Favorites

Basic Info

Material:Metal
Blade Material:Plastic
Type:Axial Fan
Electric Current Type:AC
Mounting:Wall Fan
Certification:CE,CCC
Transport Package:50*26*27cm,40PCS/Carton,21kgs
Specification:4 inch 120x120x38mm
Trademark:SOGOMAR and OEM
Origin:China
Bearing:ball bearing
Coil:100% copper coil
Connection:2-leadwire or terminal type
HS Code:8414599050

Product Description

Brief description
SF12038
Size: 120x120x38mm
Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
Frequency: 50Hz, 60Hz and 50/60Hz
Bearing: Ball bearing and sleeve bearing
Connection: leadwire or terminals
Material: Alu frame, plastic blades, copper coil.
Color: Black or silver
Package: 50*26*27cm,40PCS/Carton,21kgs

Size: 120x120x38mm

Parameters:

Type 产品型号	Rated Voltage 额定电压 V	Frequency 频率 HZ	Current 电流 A	Power 功率 (W)+10% -20%	Speed 回转速度 (min^-1)	Max Air Flow 最大风量 CFM m3/h		Static Pressure 最大静压 (PA)	Noise 噪音 (dB)	Capacitor 电容 (μF)
SF12038SL-1	115	50	0.24	18	2500	85	145	51	34	----
SF12038SL-1	115	60	0.20	15	2800	100	170	63	37	----
SF12038BL-1	115	50	0.24	18	2500	85	145	51	34	----
SF12038BL-1	115	60	0.20	15	2800	100	170	63	37	----
SF12038SL-2	230	50	0.12	19	2500	85	145	51	34	----
SF12038SL-2	230	60	0.10	14	2700	95	160	63	37	----
SF12038BL-2	230	50	0.12	19	2500	85	145	51	34	----
SF12038BL-2	230	60	0.10	14	2700	95	160	63	37	----
SF12038SL-3	380	50	0.08	20	2500	82	140	50	33	----
SF12038SL-3	380	60	0.07	18	2780	98	165	62	36	----
SF12038BL-3	380	50	0.07	18	2500	85	145	51	34	----
SF12038BL-3	380	60	0.06	16	2800	100	170	63	37	----

Information:

Motor: Shaded pole motor structure
Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
Impeller: Black plastic PBT UL94V-0
Operation Temperature/Humidity Range: ：-30°C to +60°C, 0%~95%
Protection: Impedance Protected
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
Insulting system: Design according to IEC61858 Grade B
Protecting Grade:IP34
Rotation Direction of Blades:CCW seen from the front impellers
Unit Weight：510g

Dimensions:
