Brief description

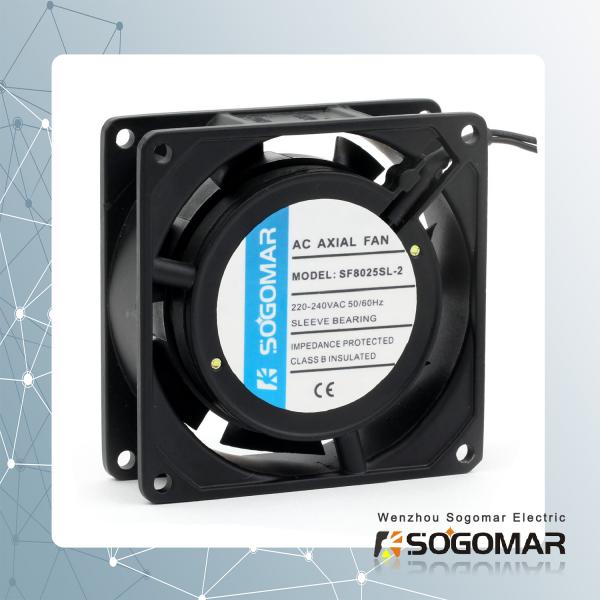

SF8025
Size: 80x80x25mm
Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
Frequency: 50Hz, 60Hz and 50/60Hz

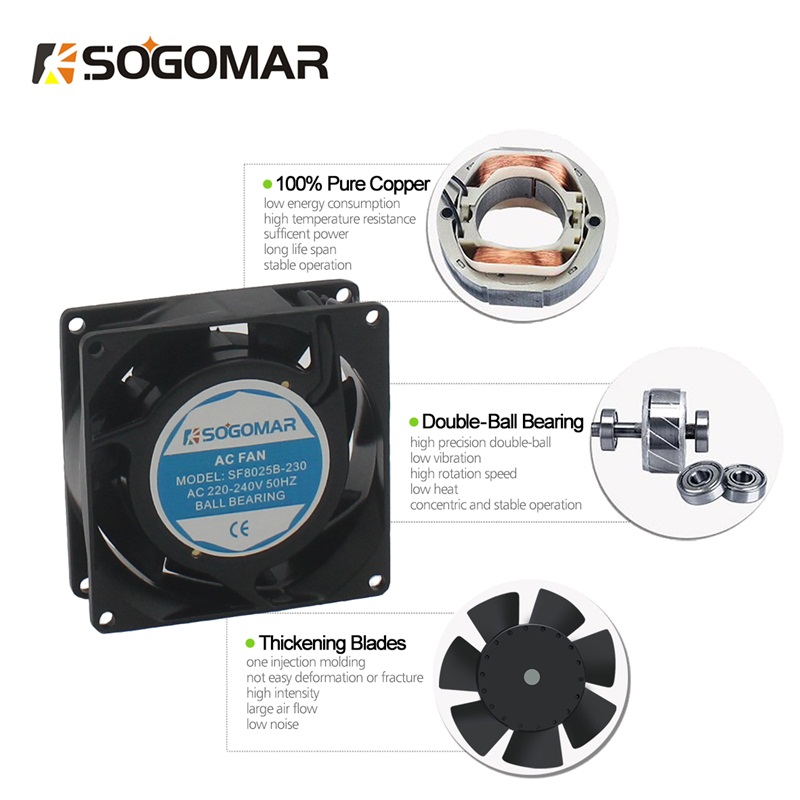

Bearing: Ball bearing and sleeve bearing
Connection: leadwire or terminals
Material: Alu frame, plastic blades, copper coil.
Color: Black
Package: 56*19.5*19.5cm,60PCS/Carton,16kgs

• Size: 80x80x25mm









  Parameters:



  Type 产品型号	Rated Voltage 额定电压 V	Frequency 频率 HZ	Current 电流 A	Power 功率 (W)+10% -20%	Speed 回转速度 (min-1)	Max Air Flow 最大风量 CFM        m3/h		Static Pressure 最大静压 (PA)	Noise 噪音 (dB)	Capacitor 电容 (μF)
  SF8025SL-1	115	50	0.12	10	2300	17	29	33	29	----
  		60	0.10	9	2700	21	35	37	33
  SF8025BL-1	115	50	0.13	13	2400	18	31	42	30	----
  		60	0.15	15	2900	22	38	45	34
  SF8025SL-2	230	50	0.07	13	2300	17	29	33	29	----
  		60	0.06	11	2700	21	35	37	33
  SF8025BL-2	230	50	0.07	13	2400	18	31	42	30	----
  		60	0.06	11	2900	22	38	45	34
  SF8025BL-3	380	50	0.08	14	2450	20	32	43	35	----
  		60	0.09	12	2900	24	40	46	36



  Information:

  Motor: Shaded pole motor structure
  Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
  Impeller: Black plastic PBT UL94V-0
  Operation Temperature/Humidity Range: ：-30°C to +60°C, 0%~95%
  Protection: Impedance Protected
  Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
  Insulting system: Design according to IEC61858 Grade B
  Protecting Grade:IP34
  Rotation Direction of Blades:CCW seen from the front impellers
  Unit Weight：245g



  Dimensions:
