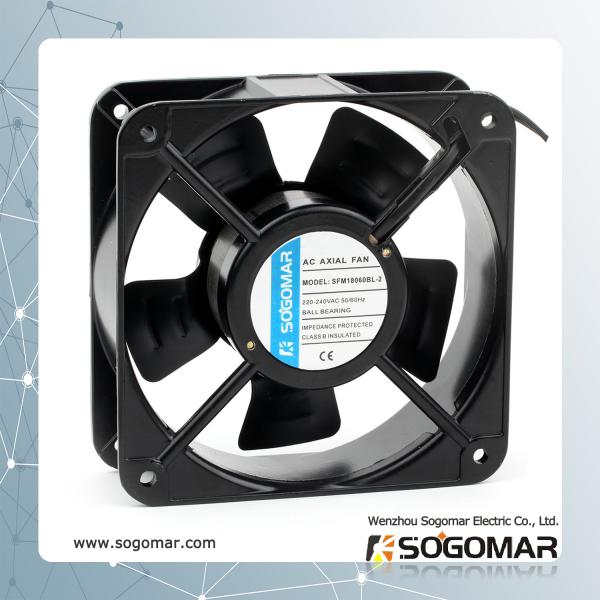

Axial fan 180x180x60mm metal blades

Purchase Qty.:
(Piece)

FOB Unit Price:

US $12.5

Get Latest Price>

Port:

Ningbo or Shanghai

Production Capacity:

1000000pcs/year

Payment Terms:

L/C, T/T,Western Union,Paypal

Contact Now Start Order

You can manage your favorites in member center.

Favorites

Basic Info

Material:Metal
Blade Material:aluminum
Type:Axial Fan
Electric Current Type:AC
Mounting:Wall Fan
Certification:CE,CCC
Transport Package:43*32*20cm,10PCS/Carton,18kg
Specification:180x180x60mm
Trademark:SOGOMAR and OEM
Origin:China
Bearing:ball bearing
Coil:100% copper coil
Connection:2-leadwire or terminal type
HS Code:8414599050

Product Description

SFM18060

Parameters

Type 产品型号	Rated Voltage 额定电压 V	Frequency 频率 HZ	Current 电流 A	Power 功率 (W)+10% -20%	Speed 回转速度 (min-1)	Max Air Flow 最大风量 CFM m³/h		Static Pressure 最大静压 (PA)	Noise 噪音 (dB)	Capacitor 电容 (μF)
SFM18060B-1	115	50	0.99	40	2550	224	380	85	62	----
SFM18060B-1	115	60	1.02	45	2670	235	400	125	60	----
SFM18060B-2	230	50	0.33	47	2550	224	380	85	65	----
SFM18060B-2	230	60	0.36	52	2670	235	400	125	63	----
SFM18060B-3	380	50	0.32	60	2550	224	380	85	64	----
SFM18060B-3	380	60	0.35	66	2670	235	400	125	62	----

Information:

Motor: External rotor motor structure. Impedance protect
Frame: Aluminium die-casting, surfaces is finished by anti-corrosion treatment with primary color or black electrophoresis anti-corrosion treatment
Impeller: Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity Range: Temperature -30ºC ~ +90ºC Humidity 0% ~ 95%
Protection: Motor Internal with automatic recovery thermal protector
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
insulting system: Design according to IEC61858 Grade F
Protecting Grade: IP44
Rotation Direction of Blades: CCW seen from the front impellers
Unit Weight: 1.8kg

Dimensions:
