Brief description

Model NO.: SFM400
Blade Material: Stainless Steel
Electric Current Type: AC
Certification: CE
Weight(Kg): 5.5
Pole: 4p and 6p
Transport Package: Export Carton with Foam Inside, Then Pallet
Material: Metal
Type: Axial Fan
Mounting: Wall Fan
Voltage: 110-120VAC, 220-240VAC, 380VAC
Warantee: One Year Guarantee Time
Specification: 400mm

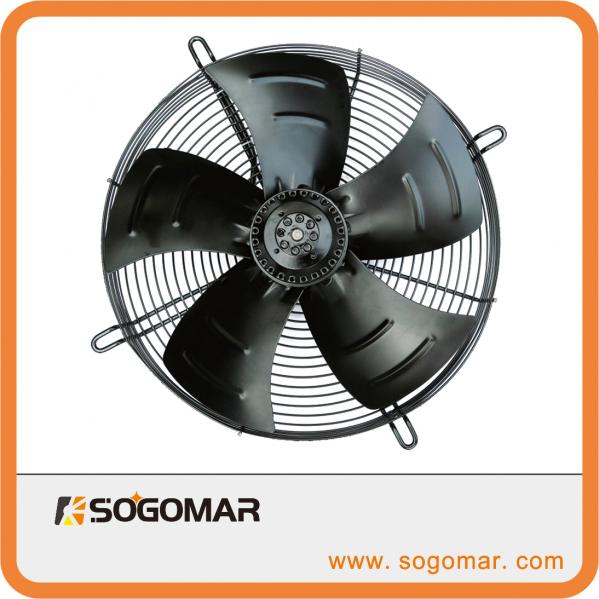

• Ventilation Fan with External Rotor Motor, Metal Blades (Dia 400mm)





  Parameters:

  Type 产品型号	Rated Voltage 额定电压 V	Frequency 频率 HZ	Current 电流 A	Power 功率 (W)+10% -20%	Speed 回转速度 (min-1)	Max Air Flow 最大风量 CFM     m3/h		Static Pressure 最大静压 (PA)	Noise 噪音 (dB)
  SFM400-4P-1	115	50	1.91	195	1400	2440	4148	150	68
  		60	2.16	250	1600	2750	4676	120	71
  SFM400-4P-2	230	50	0.80	173	1400	2440	4148	150	68
  		60	1.05	248	1600	2750	4676	120	71
  SFM400-6P-3	380	50	0.22	68	900	1950	3315	50	71
  		60	0.18	82	1020	2150	3655	40	60



  Information:
  Motor: Configuration of External rotor motors
  Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
  Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
  Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
  Protection: Motor Internal with automatic recovery thermal protector
  Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
  Insulting system: Design according to IEC61858 Grade F
  Protecting Grade: IP54
  Unit Weight: 5.5kgs



  Dimensions:
