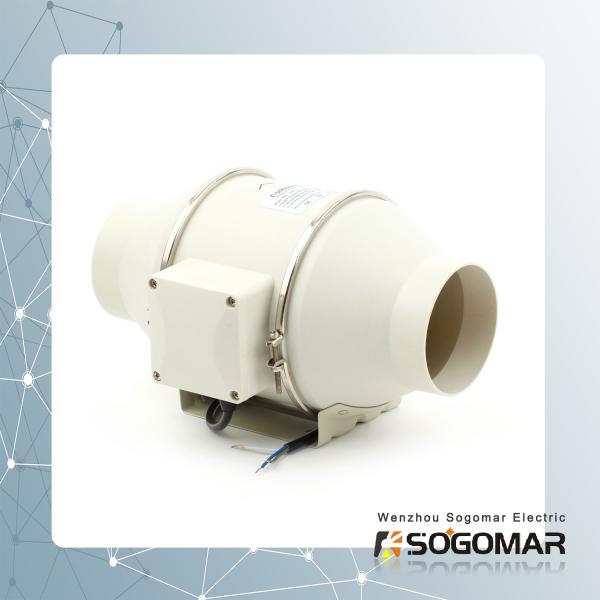

silent pipe fan dia 100mm with multi speed for room cooling

Purchase Qty.:
(Piece)

FOB Unit Price:

US $20

Get Latest Price>

Port:

Ningbo or Shanghai

Production Capacity:

1000000pcs/year

Payment Terms:

L/C, T/T,Western Union,Paypal

Contact Now Start Order

You can manage your favorites in member center.

Favorites

Basic Info

Material:plastic
Blade Material:Plastic
Type:Exhaust Fan
Electric Current Type:AC
Mounting:Duct Fan
Certification:CE,CCC
Transport Package:6PCS/CTN
Specification:100mm
Trademark:SOGOMAR and OEM
Origin:China
Bearing:NSK ball bearing
Frame:PP
Voltage:220-240VAC
impellers:ABS material
motor:a two-speed motor
using lige:more than 50000 hours
HS Code:8414599050

Product Description

Oblique Flow Pressurized Turbo Blower Pipe Fan (Dia: 100mm)

Application:

library, KTV, canteens, cinemas, classrooms, hospital rooms, conference rooms, hall, lounge, bathroom, toliets, dining rooms, kitchen, basement, smoking rooms, hotel restaurants, warehouses, offices, etc.

Parameters:

Type 产品型号	Rated Voltage 额定电压 V	Frequency 频率 HZ	Speed 回转速度 (min^-1)		Current 电流 A	Power 功率 (W)+10% -20%	Max Air Flow 最大风量 m³/h	Static Pressure 最大静压 (PA)	Noise 噪音 (dB)
SFP-100H(L)-2	220	50	High Speed高速	2500	0.16	35	295	170	30
SFP-100H(L)-2	220	50	Low Speed低速	2150	0.12	27	225	135	26
SFP-125H(L)-2	220	50	High Speed高速	2500	0.2	45	350	170	30
SFP-125H(L)-2	220	50	Low Speed低速	1850	0.16	31	285	140	26
SFP-150H(L)-2	220	50	High Speed高速	2500	0.27	58	650	260	32
SFP-150H(L)-2	220	50	Low Speed低速	2070	0.22	46	520	220	28
SFP-200H(L)-2	220	50	High Speed高速	2450	0.54	120	1050	360	58
SFP-200H(L)-2	220	50	Low Speed低速	1770	0.45	95	830	300	52
SFP-250H(L)-2	220	50	High Speed高速	2550	0.93	200	1300	520	58
SFP-250H(L)-2	220	50	Low Speed低速	2200	0.83	175	1050	460	52
SFP-300H(L)-2	220	50	High Speed高速	2500	1.65	320	2900	630	65
SFP-300H(L)-2	220	50	Low Speed低速	2250	1.35	280	2500	580	55

Information:

Frame:made of polypropylene plastic disposable forming, with function of high resistance to acid and alkali.
Impeller: ABS materials,the optimum air volume air pressure according to the fluid mechanics design.
Motor:A two-speed motor,uses the import NSK ball, life can reach more than 50000 hours
Operation Temperature: -20 ºC~60 ºC : -20 ºC~60 ºC
Protecting Grade: IP44
Can be designed with the function of delay time, temperature sensor and humidity sensor of humanized function

Dimensions:

Type 产品型号	A	B	C	D	E	F	G	H	L	kg
SFP-100H(L)-2	303	170	98	80	115	100	188	60	80	1.6
SFP-125H(L)-2	303	170	123	80	115	100	188	60	80	1.6
SFP-150H(L)-2	320	200	158	130	127	112	212	60	80	3.2
SFP-200H(L)-2	320	220	198	140	141	124	232.5	94	100	4.3
SFP-250H(L)-2	385	272	248	168	192	155	291	140	145	8.5
SFP-300H(L)-2	450	336	312	210	224	188	356	178	182	13.0

Alldimension in mm. 单位：毫米（mm）.
