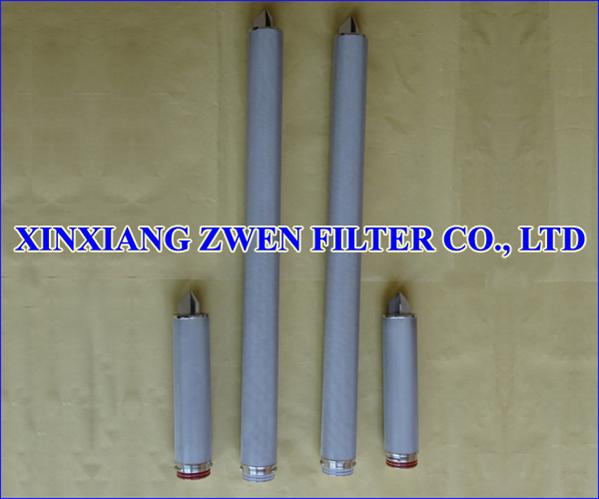

Stainless Steel Filter Cartridge Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating: 0.5-300 Microns

Filter Efficiency: > 99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 10-380 mm

Length: 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization

Stainless Steel Filter Cartridge Feature

1. Backwash and Reusable

2. Uniform pore size distribution

3. Good air permeability

4. High filter efficiency

5. Heat Resistance

6. High corrosion resistance if 316L raw material

Application

Polyester filtration, water treatment, steam filtration, oil filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry, high temperature gas or liquid filtration
