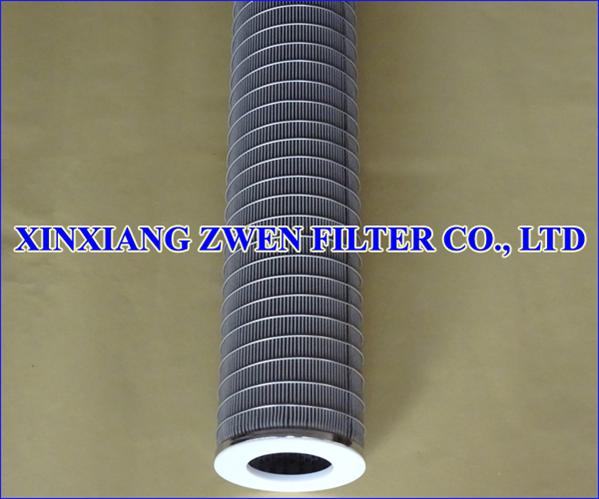

Pleated Stainless Steel Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating: 1-300 Microns

Filter Efficiency: > 99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 50 mm,60 mm,63.5 mm,70 mm,150 mm or others

Length: 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization

Pleated Stainless Steel Filter Element Feature

1. Depth filter

2. Large filter area

3. Large dirt holding capacity

4. Good permeability

5. Heat Resistance

6. High corrosion resistance if 316L raw material

Application

Polyester filtration, polymer filtration, water treatment, steam filtration, oil filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry, high temperature gas or liquid filtration
