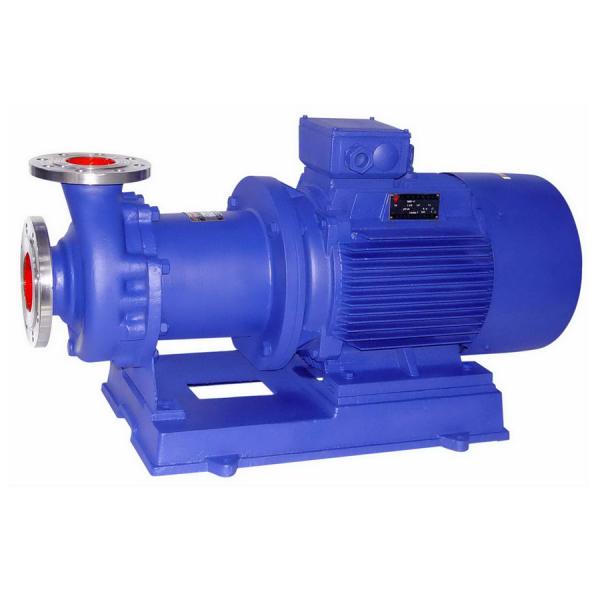

Main applications:

Chemical

Driver:

Electric motor

Power Specs:

380/415 V 3phase 50hz/60hz

Max.permissible fluid temperature:

100°C(212°F)/280°C(536°F)

Type of connection:

Flange

Installation position:

Horizontal

Casing/Inner parts material:

Stainless steel/Stainless steel

Shaft seal type:

Static sealing

Free passage:

0 mm

Maximum drive rating:

55KW(75HP)

Maximum caliber:

100mm(4inch)

Maximum discharge-side pressure:

0.8MPa(8bar)

Maximum head:

80m(262.4ft)

Flow rate range:

3.2-100m3/h(14.1-440 US.GPM)

Inlet

Outlet

(m3/h)

(m)

(KW)

(Phase)

CQB32-20-125

32

20

3.2

20

1.1

3phase

CQB32-20-160

32

20

3.2

32

1.5

3phase

CQB40-25-105

40

25

6.3

12.5

1.1

3phase

CQB40-25-125

40

25

6.3

20

2.2

3phase

CQB40-25-160

40

25

6.3

32

3

3phase

CQB40-25-200

40

25

6.3

50

5.5

3phase

CQB50-40-85

50

40

12.5

8

1.1

3phase

CQB50-32-105

50

32

12.5

12.5

1.5

3phase

CQB50-32-125

50

32

12.5

20

3

3phase

CQB50-32-160

50

32

12.5

32

4

3phase

CQB50-32-200

50

32

12.5

50

7.5

3phase

CQB50-32-250

50

32

12.5

80

18.5

3phase

CQB65-50-125

65

50

25

20

4

3phase

CQB65-50-160

65

50

25

32

7.5

3phase

CQB65-40-200

65

40

25

50

15

3phase

CQB65-40-250

65

40

25

80

22

3phase

CQB80-65-125

80

65

50

20

7.5

3phase

CQB80-65-160

80

65

50

32

11

3phase

CQB80-50-200

80

50

50

50

22

3phase

CQB80-50-250

80

50

50
