Main applications:

Chemical, stronger aicd/lkali

Driver:

Electric motor

Power Specs:

110V/230V single phase, 220V/380/440V 3phase, 50hz/60hz,

Motor type:

Ordinary motor, EX motor, Frequency motor

Max.permissible fluid temperature:

100°C(212°F)

Type of connection:

Flange, Hose

Installation position:

Horizontal

Casing/Inner parts material:

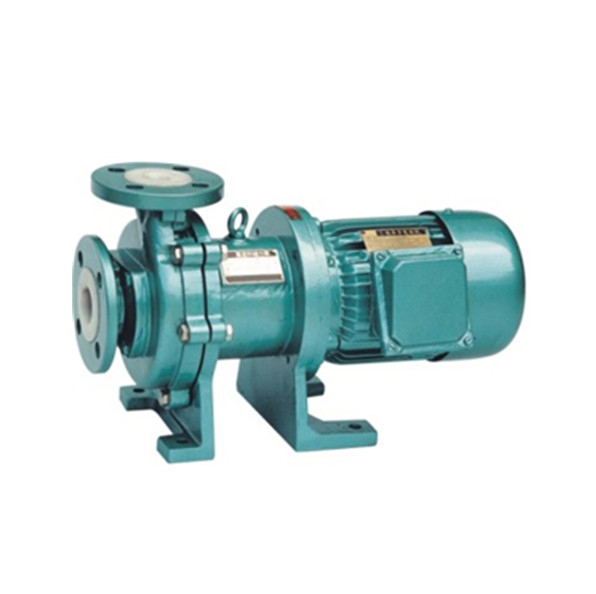

Cast iron shell lined with PTFE(Teflon) or PFA

Shaft seal type:

No seal, no leakage

Maximum drive rating:

18.5KW(25HP)

Maximum Inlet/Out DN:

100mm(4inch)/80mm(3inch)

Maximum discharge-side pressure:

0.32MPa(3.2bar)

Maximum head:

32m(105ft)

Flow rate range:

1.8-100m3/h(7.9-440 US.GPM)

(mm)

(mm)

(m3/h)

(m)

(m)

(KW)

(V)

CQB15-10-85F

15

10

1.8

8

6

0.12

220/380

CQB20-15-105F

20

15

3

12

6

0.37

220/380

CQB32-25-125F

32

25

3.2

20

5

0.75

220/380

CQB32-25-145F

32

25

3.2

25

6

0.75

220/380

CQB40-32-115F

40

32

6.3

15

5

0.75

220/380

CQB40-32-145F

40

32

6.3

25

3.5

1.5

380

CQB40-32-160F

40

32

6.3

32

3.5

2.2

380

CQB50-40-125F

50

40

12.5

20

4

2.2

380

CQB50-40-160F

50

40

12.5

32

4

3

380

CQB65-50-125F

65

50

25

20

4

3

380

CQB65-50-160F

65

50

25

32

4

5.5

380

CQB80-65-125F

80

65

50

20

4

7.5

380

CQB80-65-160F

80

65

50

32

4

11

380

CQB100-80-125F

100

80

100

20

4

11

380

CQB100-80-160F

100

80

100

32

4

18.5

380

NOTE: From CQB32-25-125F to CQB100-80-160F in the table can be equipped with EX motor
