Introduction:

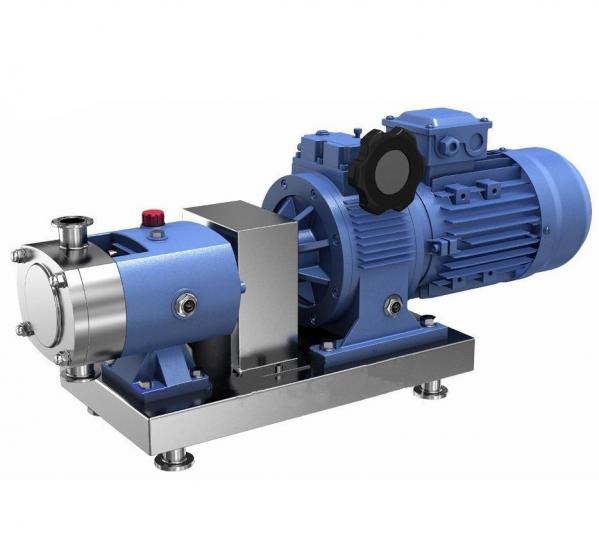

1. Johames D-3A stainless steel cam lobe flex pump high viscosity adjustable speed sanitary lobe pump is special designed for liquid sugar, vegetable oil, edible oil, molasses, chocolate, cooking oil, paste, milk, fruit, etc.
2. The dependable rust protection and the non-toxic sealing of the pump ensure the safety and the sanitary standard.
3. Apply to the transfer of the mediums that are easy-foaming/high viscosity/high concentration/with solid and protect them from physico chemical reaction & remain the same.
4. Low rotational speed prevent the change of existing quality, physics and chemistry properties.
5. Three motor type: CVT Stepless variable speed motor, Fixed ratio gear-box motors, Frequency conversion variable speed motor. It can configured with insulation jacket, Water cooling device, Trolley.
Product details:
Working Principle: | Double rotors |
Main applications: | Oil, food, colloid |
Driver: | Electric motor |
Power Specs: | 220V,240V,380V,400V,415V,440V 50hz/60hz |
Max.permissible fluid temperature: | 100°C(212°F) / 200°C(392°F)-water cool type |
Type of connection: | Quick clamp, Flange, Thread, SMS, Barb, Square port |
Position of inlet/outlet: | Horizontal or Vertical |
Casing/Inner parts material: | SS304, SS316L |
Shaft seal type: | Mechanical seal |
Maximum viscosity: | 1×106 C.S.T |
Maximum drive rating: | 30kW(40HP) |
Maximum caliber: | 125mm(5inch) |
Maximum discharge-side pressure: | 1.6MPa(16bar) |
Suction pressure | 0.08Mpa(0.8bar) |
Flow rate range: | 0.3-72m3/h(1.3-316.8US.GPM) |
Product details:
Working Principle: | Double rotors |
Main Applications: | Food applications, Polymers, Paper coatings, Soaps and surfactants, Paints and dyes Rubber and adhesives, Pharmaceuticals |
Driver: | Variable Speed Motor, Geared Motor, Variable Frequency Motor |
Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
Max.permissible fluid temperature: | 150°C (302°F) / 250°C (482°F)-water cool type |
Type of connection: | Quick couple, Thread, Flange |
Installation position: | Horizontal |
Casing/Inner parts material: | Stainless Steel |
Shaft seal type: | Mechanical seal |
Maximum viscosity: | 1x106 C.S.T |
Maximum drive rating: | 22kW(30HP) |
Maximum caliber: | 125mm(5inch) |
Maximum discharge-side pressure: | 5bar |
Suction pressure: | 0.08Mpa(0.8bar) |
Flow rate range: | 0.3-72m3/h(1.3-316.8US.GPM) |
Performance data:
Type | Size (mm) | Discharge Capacity per 100r (L) | Speed Range (rpm) | Flow (L/H) | Motor Power (kW) |
LQ3A-6 | 25 | 6 | 200-500 | 650-1600 | 0.75 |
LQ3A-8 | 32 | 8 | 200-500 | 850-2160 | 1.5 |
LQ3A-12 | 38 | 12 | 200-500 | 1300-3200 | 2.2 |
LQ3A-20 | 38 | 20 | 200-500 | 2100-5400 | 3 |
LQ3A-30 | 42 | 30 | 200-400 | 3200-6400 | 4 |
LQ3A-36 | 42 | 36 | 200-400 | 3800-7600 | 5.5 |
LQ3A-52 | 50 | 52 | 200-400 | 5600-11000 | 5.5 |
LQ3A-66 | 62 | 66 | 200-400 | 7100-14000 | 7.5 |
LQ3A-78 | 75 | 78 | 200-400 | 9000-18000 | 7.5 |
LQ3A-100 | 75 | 100 | 200-400 | 11000-22000 | 11 |
LQ3A-135 | 100 | 135 | 200-400 | 15000-30000 | 15 |
LQ3A-160 | 100 | 160 | 200-400 | 17000-34000 | 18.5 |
LQ3A-200 | 125 | 200 | 200-400 | 21600-43000 | 22 |
