Summarize:

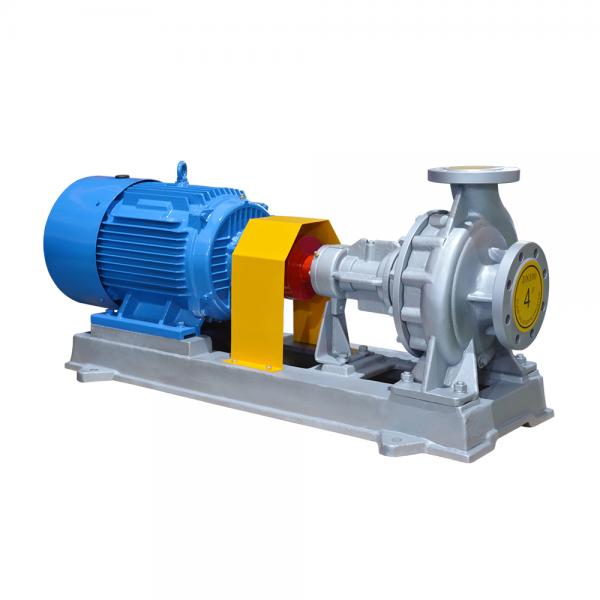

1.Johames Hot Oil Pump Price is suitable for heat-conduction oil, or other hot oils with temperature ≤370°C
2.It has a reasonable structure, advanced technology, high efficiency, long-term stable operation without leakage in the hot state. Used to transport not containing solid particles of corrosion high temperature liquid with system of directly wind cooling.
3.It's widely used in petroleum oil, chemical industry, rubber, leather, food industry, grease, boilers, construction, road maintenance, pharmaceutical, plastics, rubber, synthetic fiber textile, printing and dyeing and other industrial fields.
Seal Type:
1.Using the combination in the form of the packing seal and the mechanical seal, packing with high temperature resistant filler material, has a good thermal adaptability.
2.The mechanical seal: a high mechanical strength, good abrasion carbide material, guarantee the sealing performance under high temperature conditions.
3.Polytetrafluoroethylene (PTFE) do lip seal, the sealing performance leap than the rubber sealing reliability increased by 25 times, highly corrosion-resistant.
Product details:
Working Principle: | Centrifugal |
Main applications: | Hot oil, thermal oil, high temperature oil, etc |
Driver: | Electric motor, diesel |
Power Specs: | 220/380/400/415V 3phase;50hz/60hz |
Max.permissible fluid temperature: | 370°C (698°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing parts material: | Cast steel |
Shaft seal type: | Shaft seal ring, Mechanical seal, Carbon seal |
Free passage: | 1mm |
Maximum viscosity: | 5X104C.S.T |
Maximum drive rating: | 132KW (180HP) |
Maximum caliber: | 150mm (6inch) |
Maximum discharge-side pressure: | 0.85Mpa (8.5bar) |
Maximum head: | 85m (278.8ft) |
Flow rate range: | 4.5-400m³/h(19.8-1760US.GPM) |
Performance Data:
Model | Capacity (m3/h) | Head (m) | Speed (r/min) | Shaft Power (kw) | Motor Power (kw) |
26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 |
50-32-150 | 8 | 22 | 2900 | 1 | 1.5 |
50-32-160 | 10 | 25 | 2900 | 1.5 | 2.2 |
65-40-160 | 12.5 | 25 | 2900 | 2.5 | 3 |
50-50-170 | 12.5 | 32 | 2900 | 3.2 | 4 |
65-50-180 | 32 | 32 | 2900 | 4.5 | 5.5 |
65-50-170 | 40 | 25 | 2900 | 4.5 | 5.5 |
80-50-180 | 40 | 40 | 2900 | 6.7 | 7.5 |
80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 |
100-65-190 | 60 | 38 | 2930 | 9.2 | 11 |
100-65-200 | 80 | 40 | 2930 | 12.5 | 15 |
100-65-220 | 58 | 50 | 2930 | 12.5 | 15 |
100-65-230 | 100 | 55 | 2940 | 19.5 | 22 |
125-100-190 | 155 | 30 | 2940 | 20 | 22 |
100-65-240 | 100 | 70 | 2950 | 25.5 | 30 |
100-65-257 | 100 | 80 | 2950 | 32.5 | 37 |
125-100-220 | 160 | 45 | 2950 | 25.5 | 37 |
125-80-250 | 160 | 60 | 2970 | 35.5 | 45 |
125-100-257 | 200 | 60 | 2970 | 42.8 | 55 |
125-100-260 | 260 | 70 | 2970 | 64.3 | 75 |
Zhejiang Johames Technology Co.,Ltd mainly manufacture and export industrial pumps with good reputation around home and abroad. Product is exported to...
