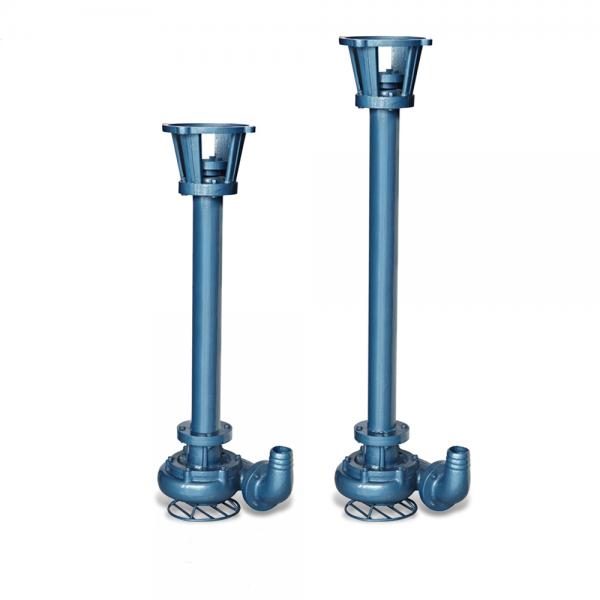

NL portable sewage pump
Addvantage:
1. Johames The biggest advantage is that can pump clean water, solids-laden fluid and fibers containing sewage, non-blocking, non-entanglement.
2.NL hydraulic type security to adapt to bracket pool, water tank. The pump body submerged in liquid under the length of 1-2.5 meters for fixed or mobile carrier occasions sewage, construction of sewage, containing massive industrial liquid medium.
Application:
Apply to transportation of industrial wastewater and urban domestic sewage, but also can be used as a drain pump, paper pulp pump, a filtered rinse cycle condensate pump, irrigation pump.
Capacity: up to 2650 m3/h
Head: up to 32 m
Diameter: up to 500 mm
Power: up t0 315 kw
Turn Speed: 740-2900 r/min
Technical Data:
Model | Capacity (m3/h) | Outlet Size (mm) | Speed (r/min) | Suction Head (m) | Power(kw) | Efficency |
25-7-8-0.55 | 7 | 25 | 2900 | 8 | 0.55 | 45 |
25-8-25-1.1 | 8 | 25 | 2900 | 25 | 1.1 | 45 |
32-8-12-0.75 | 8 | 32 | 2900 | 12 | 0.75 | 48 |
40-12-15-1.5 | 12 | 40 | 2900 | 15 | 1.5 | 48 |
50-20-7-0.75 | 20 | 50 | 2900 | 7 | 0.75 | 62 |
50-10-10-0.75 | 10 | 50 | 2900 | 10 | 0.75 | 54 |
50-20-15-1.5 | 20 | 50 | 2900 | 15 | 1.5 | 51 |
50-15-30-2.2 | 15 | 50 | 2900 | 30 | 2.2 | 51 |
50-17-25-3 | 17 | 50 | 2900 | 25 | 3 | 53 |
50-25-32-5.5 | 25 | 50 | 2900 | 32 | 5.5 | 49 |
65-25-15-2.2 | 25 | 65 | 2900 | 15 | 2.2 | 52 |
65-37-13-3 | 37 | 65 | 2900 | 13 | 3 | 60 |
65-25-30-4 | 25 | 65 | 2900 | 30 | 4 | 58 |
80-40-7-2.2 | 40 | 80 | 2900 | 7 | 2.2 | 50 |
80-80-15-7.5 | 80 | 80 | 1450 | 15 | 7.5 | 45 |
80-100-32-18.5 | 100 | 80 | 2900 | 32 | 18.5 | 65 |
80-40-15-4 | 40 | 80 | 2900 | 15 | 4 | 57 |
80-65-25-7.5 | 65 | 80 | 2900 | 25 | 7.5 | 56 |
