Introduction:

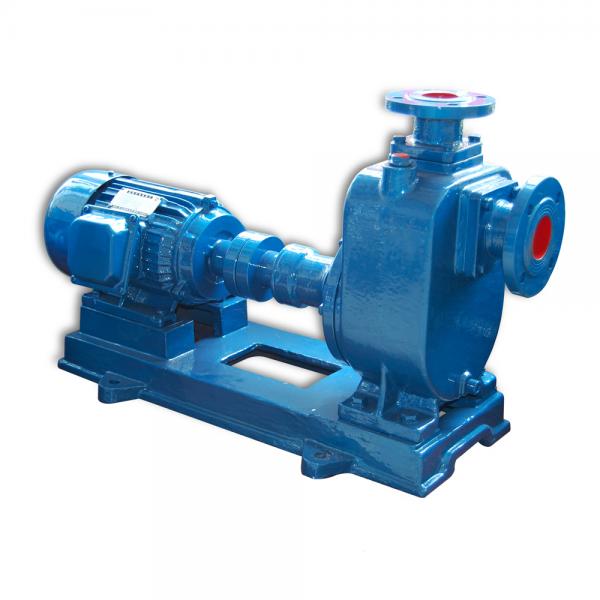

1. Johames ZX horizontal self priming water pump diesel engine agricultural irrigation pumps works for water or medium similar to water that temperature below 80°C(176°F).
2. It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.
3. As no foot valve is needed to be mounted on the pipeline and only a certain amount of leading liquid is required to be filled into the pump before work.
Application:
1. Suitable for city environmental protection , construction , fire fighting, chemical industry, pharmacy, dyes, dyeing, brewing, electric power, electric plating, paper-making, industrial and mineral rinse, equipment cooling and so on.
2. This pump, when mounted with a shaking arm shower, can have the water burst into air and then scattered in a thin drop for spraying, useful to a farm, nursery, orchard and tee plantation.
3. Suitable for pure water, sea water, the chemical media of an acid and alkaline degree and the pulpy material of a general pasty state. (medium viscosity<=100cP, solid content below 30%).
4. This pump can work together with a pressure filter of any model and specification and is the most ideal matching pump to send pulpy materials to the said filter for pressure filtering.
Product details:
Working Principle: | Centrifugal, Self-priming |
Main applications: | Water, similar water |
Driver: | Electric motor, Diesel Motor |
Power Specs: | 220V/380/415V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 80°C(176°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel |
Shaft seal type: | Mechanical seal |
Maximum drive rating: | 132KW(180HP) |
Maximum caliber: | 300mm(12inch) |
Maximum head: | 80m(262.4ft) |
Maximum suction: | 6.5m(21.3ft) |
Flow rate range: | 3.2-600m3/h(14.1-2640US.GPM) |
Performance data:
Model | Caliber (mm) | Capacity (m3/h) | Head (m) | Power (kw) | Speed (r/min) | Suction (m) |
25ZX3.2-20 | 25 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
25ZX3.2-32 | 25 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
32ZX3.2-20 | 32 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
32ZX3.2-32 | 32 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
32ZX3.2-50 | 32 | 3.2 | 50 | 3 | 2900 | 6.5 |
40ZX6.3-20 | 40 | 6.3 | 20 | 1.5 | 2900 | 6.5 |
40ZX6.3-32 | 40 | 6.3 | 32 | 2.2 | 2900 | 6.5 |
40ZX10-40 | 40 | 10 | 40 | 4 | 2900 | 6.5 |
40ZX6.3-50 | 40 | 6.3 | 50 | 4 | 2900 | 6.5 |
50ZX15-12 | 50 | 15 | 12 | 1.5 | 2900 | 6.5 |
50ZX18-20 | 50 | 18 | 20 | 2.2 | 2900 | 6.5 |
50ZX12.5-32 | 50 | 12.5 | 32 | 3 | 2900 | 6.5 |
50ZX12.5-40 | 50 | 12.5 | 40 | 4 | 2900 | 6.5 |
50ZX12.5-50 | 50 | 12.5 | 50 | 5.5 | 2900 | 6.5 |
50ZX20-30 | 50 | 20 | 30 | 4 | 2900 | 6.5 |
50ZX14-35 | 50 | 14 | 35 | 4 | 2900 |
