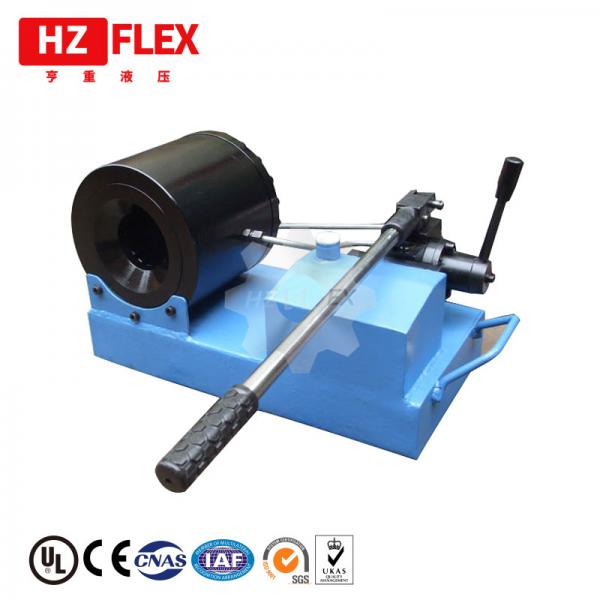

2019 HZFLEX HZ-25S used hydraulic hose crimping machine

techincal data:

Portable crimping machine with horizontal annular head and simple calibration system.

1.Hose capacity 1/4" - 1" (2  wire)

2.Choice between hand pump or foot pedal operation

3.Simple micrometer calibration system

Die Storage

Comes with convenient drawer for storage of dies

Portable

Lightweight and small design, easy lifting for on site hose repair

：

Product features and specifications：

c/w die holder drawer

Hose Capacity: 1/4" - 1 " R1AT & R2AT  (2 wire)

Swaging range of machine: See chart below

Standard Die sets supplied with machine: 1/4″ – 1″, 4 sets

Die location: Easy fit – Slide in dies

Calibration: Micrometer

Operation: by a Twin Speed Hand Pump with integral relief valve.

Pump rating: 630 bar (9000 psi)

Option: Air/Hydraulic foot pump to replace hand pump. 5.5 – 7 bar input (80-100 psi)

Packed Dimensions: 600 x250 x 300 Gross weight:35 kgs Net Weight: 30kgs
