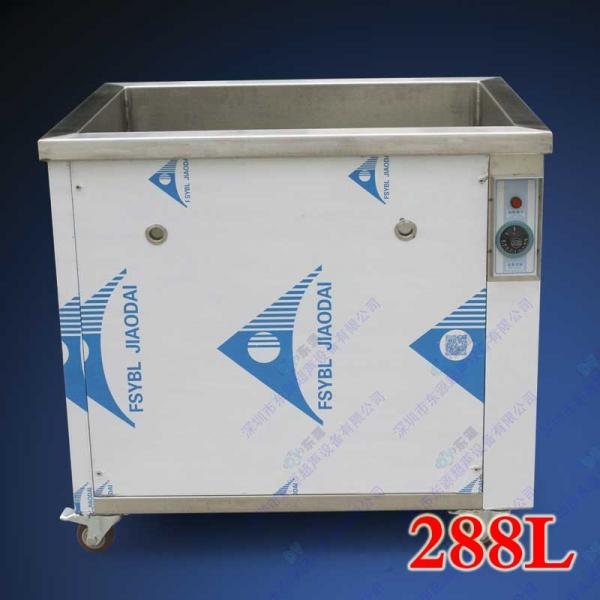

full auotmatic Industrial ultrasonic cleaner custom made for factory

Product features:

1, The machine is made up of 304# stainless steel, durable, easy to operate, Connect the power can be used.

2、机器采用28KHz超声波发生器，有效降低噪音并提高清洗效率。

2, The machine uses 28KHz Ultrasonic generator, effectively reduce the noise and improve the cleaning efficiency.

3、清洗时间60分钟内可随意调节（以秒为单位），达到清洗标准。

3, cleaning time can be adjusted within 99 minutes, to clean the standard.

4、机器设有独立排水球阀手动排液。

4, the machine is equipped with separate drainage ball valve manual.

5、电箱特点：采用新式双频电路具有：功率无极可调、双频扫频追踪、数显频率显示、数显功率显示、数显电流显示及数显定时清洗等功能。（根据清洗不同工件，达到标准、统一的清洗效果）

5, Ultrasonic generator features: the use of new dual frequency circuit has: Power continuously adjustable, dual frequency sweep frequency tracking, digital display, digital display, digital display and digital display and timing cleaning functions. (according to the cleaning of different parts, to achieve the standard, uniform cleaning effect)

6、加热功能：配有恒温机械温控器，达到设计温度后自动停止加热，低于设定温度时，自动加热。

6, heating function: equipped with thermostatic temperature control device, to achieve the design temperature automatically stop heating, lower than the set temperature, automatic heating.

Model：DYS1048

Ultrasonic power：2400W 48pcs*50W fixat the bottom of the tank

UltrasonicFrequency:28KHz

TankCapacity:288L

Timer:1~60min Digital display times.

Heating power:6000W (External type heating plate).

Heating control mode:mechanical temperature control temperature range30℃to110℃.

The Tank inside size:800 x600x600  mm（L xWx D）

The shape size: 920 x 740 x 850 mm（L x W x H）

The supply voltage:AC 380V,50Hz  The ultrasonic generator is AC 220 50Hz

material :stainless steel 304#  Don't use acid solvent . The thickness of the 2.0mm

Application range:

Applicable to electroplating products, stainless steel products, brass products, aluminum products, auto and motorcycle parts, metal stamping parts, electronic appliance parts, oil pump and nozzle, compressor parts, semiconductor wafer, electroplating industry before processing and chemical fiber industry of spinneret and filter cleaning. With special lotion effect is better. Can effectively remove the plating products, stainless steel products, brass products, aluminum products surface wax, the effect is quite good.

The cleaning of applicable in the manufacture of hardware, electronic circuit board, jewelry, watch parts, glasses, nail tattoo equipment, medical (surgical equipment cleaning and disinfection), chemical, automobile repair industry, biochemical medicine research institute and school laboratory (degassing, defoaming, emulsifying, mixing replacement cells crushed), etc.
