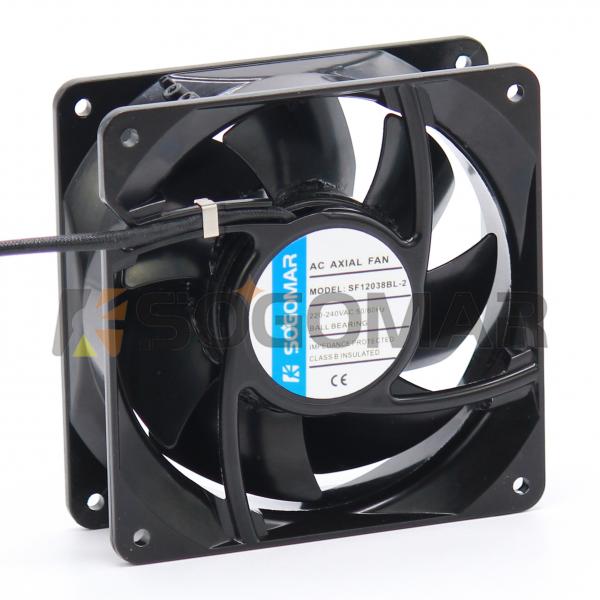

SF12038
Size: 120x120x38mm
Voltage: 110-120VAC, 220-240VAC, 380VAC
Frequency: 50Hz, 60Hz and 50/60Hz
Bearing: Double Ball bearing
Connection: leadwire or terminals
Material: Alu frame, 7 metal blades, 100% copper coil.
Color: Black or Silver


Parameters

Information
Motor
External rotor motor structure. Impedance protect
Frame
Aluminium die-casting, surfaces is finished by primary color or black electrophoresis anti-corrosion treatment
Impeller
Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity Range
-30ºC ~ +65ºC/0% ~ 95%
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC1800V, 1min at 0.5mA, 50/60Hz
Insulting System
Design according to IEC61858 Grade F
Protecting Grade
IP33
Rotation Direction of Blades
CCW seen from the front impellers
Unit Weight
540g

Dimensions
