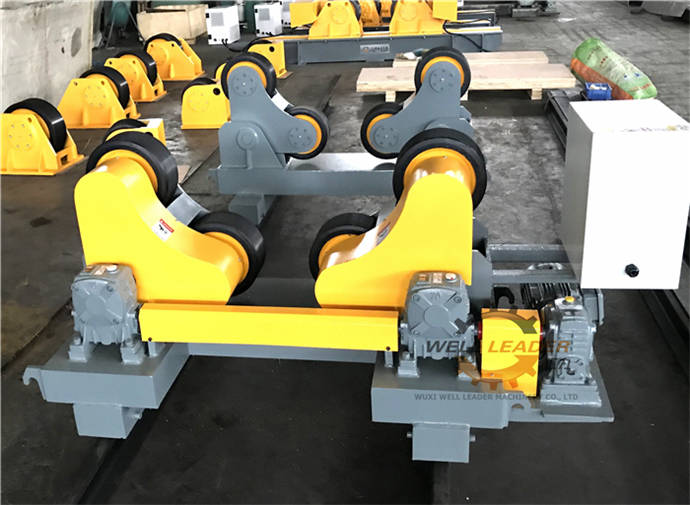

Self Alignment Aligned Rotator for Welding Pipes tanks vessels The Welding Rotator is mainly used for the seam welding of the metallic cylinder / tank. It is a necessary machine to manufacture the pressure vessel, tank and pipe.
PU wheel has better quality compared with the standard rubber wheel. It has longer usage life and can bear higher temperature very well.
Parameters:
- Turning Capacity: 20T
- Roller Diameter : Φ300mm
- Roller width: 180 mm
- Roller surface speed range: 100-1000mm / min
- Loaded Vessel/Tank diameter range: Φ500-3500mm
- Drive unit: AC frequency conversion motor and qualified gearbox.
- Wheel center adjustment (for both drive unit and Idler unit): Self Align Type.
- Remote control: Remote control pendent with 15mtrs long Cable
- Rotational speeds (variable speed AC drive): Step-less variable speeds are to be adjusted from min 100mm/min to max 1000mm/min by a potentiometer on the remote control through inverter.
- Rollers: Polyurethene (PU) lined steel rollers with thickness at 25mm.
- Motor power: 1.5kW
The rotator set will usually consist of one drive unit and a few idler units.
