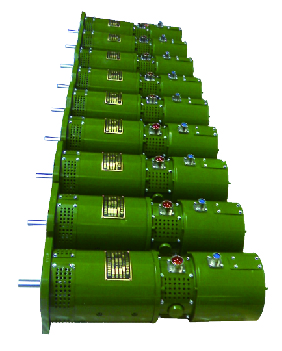

Small inertia wide speed permanent magnet DC servo motor
Basic Info
Product Description
Product Description: Small inertia wide speed permanent magnet DC servo motor is a precision radar servo motor developed for the defense industry. It can also be used as a servo drive component for CNC machine tool feed and other high precision servo control systems. It has the characteristics of high precision, fast response, wide speed range (cooperating with speed control system, speed ratio up to 1:10000), small torque fluctuation, good linearity and strong overload capability. High-sensitivity tachogenerators can be equipped according to user requirements.
This series of servo motors has been applied to dozens of military equipment, such as the satellite communication antenna of the "Yuanwang" ocean-going survey ship, the ground control radar of the "Shenzhou" and the warning radar.
Power range: 500W - 10kW
Application: Yuanwang measurement ship, precision radar servo system
Structure type: stator permanent magnet excitation, rotor air gap structure, natural cooling, flange mounting.
| 型号 | 额定功率KW | 额定力矩N.m | 供电电压V | 额定电流A | 额定转速rmp | 反电势系数V/rmp | 力矩系数N.m/A | 转动惯量kg.m2 | 电枢电阻Ω | 电枢电感mH | 机壳 直径*长度mm*mm | 轴伸 直径*长度mm*mm | 工作制 | 防护等级 | 重量 kg |
| 110SZKW-C-05 | 0.75 | 2.5 | 160 | 5.5 | 3000 | 0.053 | 0.51 | 0.0016 | 1.1 | 1.6 | Φ110*230 | Φ16*43 | S1 | IP55 | 10 |
| 130SZKW-C-02 | 0.75 | 2.5 | 110 | 8 | 3000 | 0.035 | 0.334 | 0.0011 | 1 | 2.5 | Φ130*240 | Φ16*28 | S1 | IP20 | 14 |
| 130SZKW-C-03 | 0.75 | 2.5 | 110 | 8 | 3000 | 0.036 | 0.334 | 0.0016 | 0.57 | 1.7 | Φ130*320 | Φ16*23 | S1 | IP52 | 18 |
| 130SZKW-C-05 | 1 | 3.2 | 200 | 5.5 | 3000 | 0.067 | 0.637 | 0.0016 | 1.86 | 5.2 | Φ130*405 | Φ19*38 | S1 | IP20 | 22 |
| 130SZKW-C-01 | 1.1 | 3.5 | 110 | 11 | 3000 | 0.035 | 0.344 | 0.0016 | 0.66 | 2 | Φ130*300 | Φ16*28 | S1 | IP20 | 18 |
| 140SZKW-C-03 | 1.5 | 9.6 | 160 | 10 | 1500 | 0.125 | 1.19 | 0.008 | 0.5 | 1.15 | Φ140*343 | Φ24*49 | S1 | IP55 | 28 |
| 140SZKW-C-01 | 2.2 | 14 | 160 | 15 | 1500 | 0.125 | 1.19 | 0.008 | 0.5 | 1.15 | Φ140*343 | Φ24*49 | S9 | IP55 | 28 |
| 160SZKW-C-05 | 1.5 | 7.5 | 110 | 15 | 2000 | 0.053 | 0.5 | 0.0026 | 0.5 | 1.5 | Φ160*330 | Φ19*28 | S1 | IP20 | 26 |
| 160SZKW-C-06 | 1.5 | 7.5 | 110 | 11 | 2100 | 0.05 | 0.477 | 0.0035 | 0.32 | 2 | Φ160*265 | Φ24*33 | S1 | IP20 | 24.5 |
| 160SZKW-C-07 | 1.5 | 5 | 160 | 15 | 3000 | 0.052 | 0.5 | 0.0035 | 0.61 | 2.1 | Φ160*380 | Φ22*36 | S1 | IP20 | 31 |
| 160SZKW-C-10 | 3 | 9.6 | 200 | 16.5 | 3000 | 0.067 | 0.637 | 0.008 | 0.27 | 1.3 | Φ160*425 | Φ28*42 | S1 | IP20 | 36 |
| 160SZKW-C-04 | 3.7 | 5.7 | 180 | 23 | 6000 | 0.03 | 0.287 | 0.006 | 0.17 | 0.78 | Φ160*340 | Φ28*42 | S1 | IP20 | 32 |
| 160SZKW-C-03 | 3.7 | 12.5 | 180 | 23 | 3000 | 0.058 | 0.554 | 0.007 | 0.24 | 2.3 | Φ160*400 | Φ28*42 | S1 | IP20 | 35 |
| 160SZKW-C-02 | 4.5 | 15 | 180 | 27 | 3000 | 0.058 | 0.554 | 0.008 | 0.22 | 1.1 | Φ160*390 | Φ28*42 | S2-60 | IP20 | 31 |
| 160SZKW-C-01 | 7.5 | 25 | 300 | 27 | 3000 | 0.095 | 0.9 | 0.01 | 0.28 | 1.36 | Φ160*470 | Φ28*42 | S2-60 | IP20 | 42 |
| 200SZKW-C-01 | 1.5 | 7.2 | 200 | 8.8 | 2000 | 0.1 | 0.96 | 0.01 | 1.18 | 4.15 | Φ200*283 | Φ28*35 | S1 | IP55 | 20 |
| 200SZKW-C-02 | 3 | 7.2 | 200 | 17.6 | 4000 | 0.05 | 0.477 | 0.01 | 0.3 | 1 | Φ200*283 | Φ28*35 | S1 | IP55 | 20 |
| 210SZKW-C-01 | 4 | 25 | 200 | 22 | 1500 | 0.133 | 1.27 | 0.035 | 0.3 | 1.5 | Φ210*340 | Φ28*63 | S1 | IP20 | 45 |
| 210SZKW-C-02 | 2.5 | 16 | 200 | 13.5 | 1500 | 0.133 | 1.27 | 0.031 | 1.12 | 3.3 | Φ210*345 | Φ28*44 | S1 | IP20 | 40 |
| 217SZKW-C-01 | 7 | 22.2 | 300 | 26 | 3000 | 0.099 | 0.95 | 0.065 | 0.19 | 0.4 | Φ217*410 | Φ38*45 | S1 | IP55 | 58 |
| 217SZKW-C-02 | 7 | 44 | 300 | 26 | 1500 | 0.198 | 1.9 | 0.13 | 0.3 | 0.8 | Φ217*580 | Φ38*45 | S1 | IP55 | 107 |
| 250SZKW-C-01 | 5.5 | 35 | 400 | 15 | 1500 | 0.266 | 2.33 | 0.04 | 0.72 | 3.82 | Φ250*537 | Φ38*54 | S1 | IP55 | 67 |
| 250SZKW-C-02 | 5.5 | 17.5 | 400 | 15 | 3000 | 0.133 | 1.16 | 0.02 | 0.48 | 1.9 | Φ250*402 | Φ38*54 | S1 | IP55 | 33 |
| 270SZKW-C-01 | 8.5 | 54 | 400 | 23 | 1500 | 0.266 | 2.35 | 0.289 | 0.3 | 2.16 | Φ270*440 | Φ38*70 | S1 | IP20 | 117 |
| 270SZKW-C-02 | 8.5 | 27 | 400 | 23 | 3000 | 0.133 | 1.17 | 0.145 | 0.2 | 1.1 | Φ270*440 | Φ38*70 | S1 | IP55 | 63 |
