Product Description

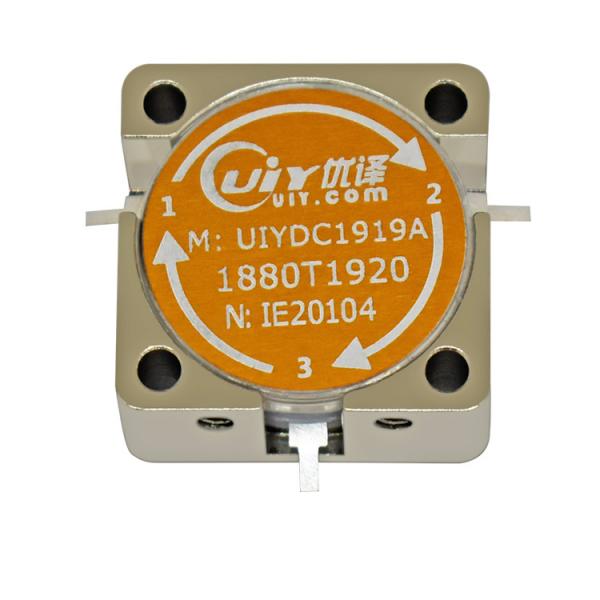

Product Name | 1880-1920MHz Drop in Circulator |
Model No. | UIYDC1919A1880T1920 |
Frequency Range | 1880-1920MHz |
Insertion Loss | 0.3dB |
Isolation | 23dB |
VSWR | 1.2 |
Forward Power | 100W |
Reverse Power | 100W |
Connector Type | TAB |
Temperature | -40~+85°C |

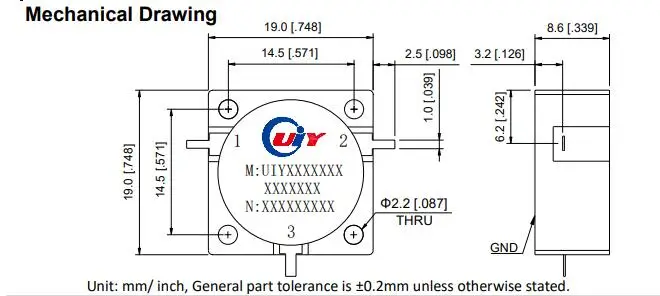

Dimension&Specification
Warm Tips
Frequency ranges listed out are just for your reference, and not the all. If you want to do other frequency ranges, pls kindly inform us, we will do our best to meet your requests.
Related Products
Packing&Shipping
Company Introduction
Found in 2003 & located in Shenzhen China. UIY Inc. is a professional manufacturer engaged in R&D, design, production sale & service of the civilian & military microwave communication device.
Main product: 1) RF Isolators. 2)RF Circulators. 3)RF Filters. 4)RF Amplifiers. 5)Power Divider / Splitter.6) Duplexer/Triplexer. 7)Hybridge Combiner. 8)Coaxial Termination. 9)Coaxial Attenuator. 10)Directional Coupler. 11)Waveguide to Coaxial Adapter etc.
In recent years, our company has introduced a series of advanced equipment. The frequency range is from 300KHz to 110GHz & average power is up to 20KW, with a wide range, good quality, reasonable price and stylish designs, our products are widely used in civil, military, telecommunication, armarium manufacturer, laboratory, aviation, aerospace, space technology & other fields.
Since its foundation, UIY has been keeping in-depth cooperation & communication with renowned enterprises, institutions, scientific research institutions. Our products are with well-equipped testing facilities & strong technical force. Selling well in all cities and provinces around China, our products are also sold all over the world.
Our Services & Strength
we support - Customize upon request
we offer - ISO 9001 & ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Safe & Fast Delivery
