Basic Info

Transport Package:Carton
Trademark:TOP
Origin:China

Product Description

1. Sieve is suitable to measure the impurity percentage in grain sample or the bran percentage in rice.
2. Have 13 layers sieve

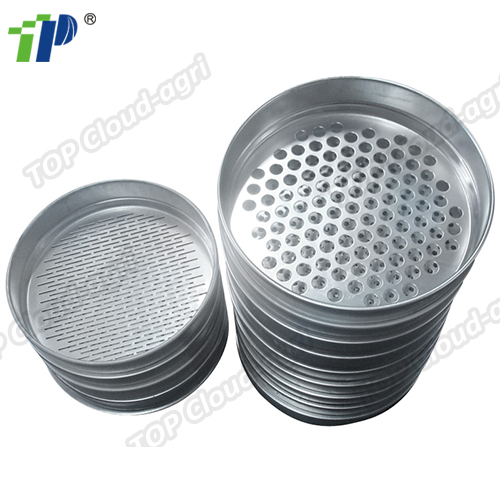

Name: Grain Sieve
Model: JJSG
Sieve is suitable to measure the impurity percentage in grain sample or the bran percentage in rice. It is an inspecting instrument to judge the samples quality. Sieve is suitable to measure the insect pests percentage in grain and oil plant, and determine insect density and judge grains grade. The sieves are made on aluminum. It can be used with our electric screen meter.

1. Notice that the filter order, and stacked layer by layer, to ensure that vertical does not tilt of the screen grid.
2. When machine operating during use, be careful with light, can not be forced collision, the election so as not to screen the deformation and damage, thus affecting the quality of detection.
3. Sieve can not touch with acid, alkali, grease and other chemicals contact, after use, washed with water, dried, and stored in a dry place for safekeeping.
4. Once the selected screen damaged, it must be replaced.

Items & Sieve No.	specification		Sieve Mesh No.	Layers No.
Items & Sieve No.	aperture	diameter × height	Sieve Mesh No.	Layers No.
sreen cover	--	Φ 220×50	--	1
1st sieve	1.5×20	Φ 220×50	215	1
2nd sieve	Φ 12.0	Φ 220×50	76	1
3rd sieve	Φ 6.0	Φ 220×50	256	1
4th sieve	Φ 5.0	Φ 220×50	440	1
5th sieve	Φ 4.5	Φ 220×50	524	1
6th sieve	Φ 4.0	Φ 220×50	608	1
7th sieve	Φ 3.5	Φ 220×50	888	1
8th sieve	Φ 3.0	Φ 220×50	1232	1
9th sieve	Φ 2.5	Φ 220×50	1624	1
10th sieve	Φ 2.0	Φ 220×50	2008	1
11th sieve	Φ 1.5	Φ 220×50	2648	1
12th sieve	Φ 1.0	Φ 220×50	3596	1
End sieve	--	Φ 220×50	--	1
