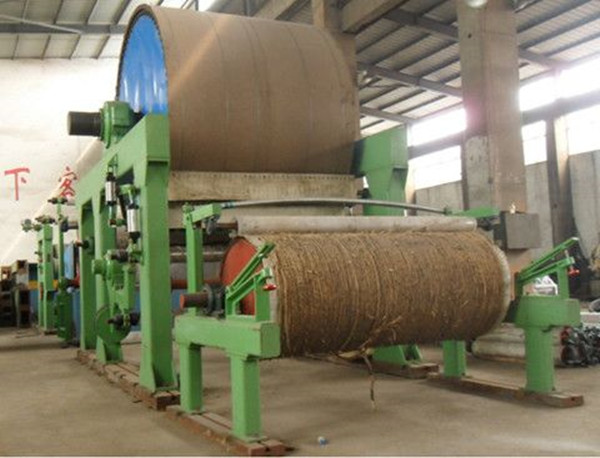

1092 single cylinder mould single dryer toilet paper making machine is the specilized equipment to produce all kinds of daily use paper.Toilet tissue paper machine is divided into fourdrinier type and cylinder type, working speed can be 80-200 m/min, the net paper width can be 787-4400mm, the gram weight of paper can be 13-30 g/m2,the production capacity can be 1-28 tons per day.We can recommend best suitable configuration according to customer’s requirement.

Toilet paper machine can use waste paper (such as waste books, news paper,used office paper, waste paper edge from printing factory ), virgin pulp as material to make high quality toilet paper, finished product can be small tissue roll,napkin  tissue, facial tissue, kitchen towel.

Technical parameter of 1092 single cylinder mould single dryer toilet paper making machine

1. Output paper: toilet paper ; tissue paper

2. Raw material:Recycle paper

3. Capacity: 2 tons per day

4. Net paper width: 1200mm

5. Width of working face: 1450mm

6. Paper weight: 14-30g/m2

7. Working speed: 50-90m/min

8. Design working speed: 120m/min

9. Rail gauge: 1800mm

10. Drive way: AC frequency converter speed adjusting, section drive.

11.Layout type:left or right hand machine.

Main structure of 1092 single cylinder mould single dryer toilet paper making machine

1. Cylinder mold part

Ф1250mm×1450mm×1800mm stainless steel cylinder mold 1 set ,

Ф380mm×1450mm ×1800mm couch roll 1 set , coated by rubber, rubber hardness 38±2SR。

. Cylinder vat is made from stainless steel plate.

2. Dryer part

Ф2000mm×1450mm×1800mm alloy dryer cylinder 1 set  , Ф350mm×1450mm×1800mm

touch roll 1 set, coated by rubber,rubber hardness 90±2SR。, equipped with double layer

exhaust hood, pneumatic loading device.

3. Winding part

Ф400mm×1450mm×1800mm winding cylinder 1 set, 250 speed reducer 1 set.

Pulp making machine of 1092 single cylinder mould single dryer toilet paper making machine

No.                                                 Item                                          Function

1                   Stainless steel cylinder mold                       Extract the pulp fiber to felt

2                   Alloy dyer cylinder                                     dry the wet paper

3                   Exhaust hood of dryer cylinder                  To cover the dryer and collect the hot & moist air

4                   Φ600 Axial-flow ventilator                         To ventilate and pull out the hot & moist air in the exhaust hood

5                  Roots vacuum pump                                   To provide the vacuum force for the suction box

6                 Vacuum suction box                                     To absorb the water in the wet paper

7                 Air compressor                                              To provide the compressed air for the pneumatic device

8                 Frequency conversion controlling cabinet      To control the running speed of the machine

9                2m3 High concentration hydra-pulper            break the recycle paper into pulp

10             0.9m2 High frequency vibrating screen            To separate and remove the small  impurity in the pulp

11            Φ500mm impeller                                            To stir the pulp and make sure the pulp and water mixed well

12            0.5m2 centrifugal screen                                  To make the pulp finer

13           35m3 Bleacher (include drive part)                    To whiten the pulp through bleaching

14           Φ250mm pulp refiner                                       To make the pulp much finer and smoother

15           Low concentration sand remover                       To remove the sand and impurity in the water and pulp

16           Pulp pump                                                        To provide the pulp for the needed machine

17            Electrical operation cabinet                               To control the machines run or stop

18           1T Boiler (burning gas)                                       To provide the hot steam for the dryers

About us:

Gongyi Shaolin Machine Manufactory was founded in 1995, we specialized in toilet paper making machine,toilet paper rewinding machine, paper napkin making machine, facial tissue folding machine, egg tray making machine, paper tube machine,pulp making machines and so on.

According to different requirements of raw materials, capacity and finished products, our factory can provide you with complete design, installation, commissioning and other services, help you get the most profit from a smaller investment.

We stick to the principle of "customer first, quality first", after more than 20 years of continuous development, our products not only popular in China, but also being exported to North America, Europe, Oceania, Middle East Asia, Southeast Asia, South Asia and other regions.

Gongyi Shaolin Machine Manufactory looks forward to your attention and patronage! In the rapid competitive market, We sincerely hope to shakes hand with you to create a bright future! Because your success speak our success!

Welcome to contact us!
