Tissue Paper Making Machinery Industry Oil Boiler Toilet Paper Making Machine  is the specilized equipment to produce all kinds of daily use paper.Toilet tissue paper machine is divided into fourdrinier type and cylinder type, working speed can be 80-200 m/min, the net paper width can be 787-4400mm, the gram weight of paper can be 13-30 g/m2,the production capacity can be 1-28 tons per day.We can recommend best suitable configuration according to customer’s requirement.

Toilet paper machine can use waste paper (such as waste books, news paper,used office paper, waste paper edge from printing factory ), virgin pulp as material to make high quality toilet paper, finished product can be small tissue roll,napkin  tissue, facial tissue, kitchen towel.

Technical parameter of  Tissue Paper Making Machinery Industry Oil Boiler Toilet Paper Making Machine

I. Technical parameter:

1. Output paper: toilet paper ; tissue paper

2. Raw material:Recycle paper

3. Capacity: 3 tons per day

4. Net paper width: 1600mm

5. Width of working face: 1950mm

6. Paper weight: 13-30g/m2

7. Working speed: 50-110m/min

8. Design speed: 150m/min

9. Rail gauge: 2400mm

10. Drive way: AC frequency converter speed adjusting, section drive.

11.Layout type:left or right hand machine.

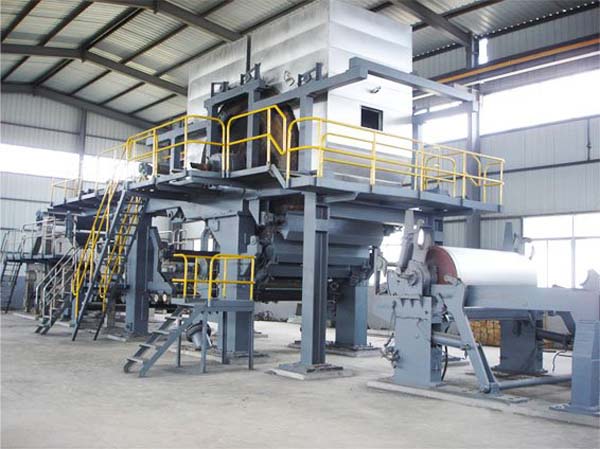

Main structure of  Tissue Paper Making Machinery Industry Oil Boiler Toilet Paper Making Machine

1. Cylinder mold part

Ф1500mm×1950mm×2400mm stainless steel cylinder mold 1 set , Ф400mm×1950mm x2400mm  couch roll 1 set ,

coated by rubber, rubber hardness 38±2SR。. Cylinder vat is made from stainless steel plate.

2. Dryer part

Ф2000mm×1950mmx2400mm alloy dryer cylinder 1 set  , Ф400mm×1950mm x2400mm touch roll 1 set, coated

by rubber,rubber hardness 90±2SR。, equipped with double layer exhaust hood, with automatic scraper knife 2 sets,

pneumatic loading device.

3. Winding part

Ф700mm×1950mmx2400mm winding cylinder 1 set.

4. Paper converting section:

1575mm rewinding machine with perforating and embossing  1set,

Paper Cutting Machine  1set,  Plastic bag sealing machine  1set

Pulp making machine of  Tissue Paper Making Machinery Industry Oil Boiler Toilet Paper Making Machine

No.                        Item                                                                 Function

1              Stainless steel cylinder mold                             Extract the pulp fiber to felt

2              Alloy dyer cylinder                                            dry the wet paper

3           Exhaust hood of dryer cylinder                To cover the dryer and collect the hot & moist air

4     Φ600 Axial-flow ventilator   To ventilate and pull out the hot & moist air in the exhaust hood

5      Roots vacuum pump                     To provide the vacuum force for the suction box

6             Vacuum suction box                 To absorb the water in the wet paper

7             Air compressor              To provide the compressed air for the pneumatic device

8             Frequency conversion controlling cabinet    To control the running speed of the machine

9                          3m3 High concentration hydra-pulper               break the recycle paper into pulp

10   1.8m2 High frequency vibrating screen     To separate and remove the small  impurity in the pulp

11               Φ700mm impeller       To stir the pulp and make sure the pulp and water mixed well

12                    0.5m2 pressure screen (Slotted screen)                   To make the pulp more finer

13                  35m3 Bleacher (include drive part)                 To whiten the pulp through bleaching

14                  Φ330mm pulp refiner                              To make the pulp much finer and smoother

15    Low concentration sand remover    To remove the sand and impurity in the water and pulp

16               Pulp pump                                                To provide the pulp for the needed machine

17                  Electrical operation cabinet                        To control the machines run or stop

18                  1T Boiler (burning coal )                        To provide the hot steam for the dryers

About us:

Gongyi Shaolin Machine Manufactory was founded in 1995, we specialized in toilet paper making machine,toilet paper rewinding machine, paper napkin making machine, facial tissue folding machine, egg tray making machine, paper tube machine,pulp making machines and so on.

According to different requirements of raw materials, capacity and finished products, our factory can provide you with complete design, installation, commissioning and other services, help you get the most profit from a smaller investment.

We stick to the principle of "customer first, quality first", after more than 20 years of continuous development, our products not only popular in China, but also being exported to North America, Europe, Oceania, Middle East Asia, Southeast Asia, South Asia and other regions.

Gongyi Shaolin Machine Manufactory looks forward to your attention and patronage! In the rapid competitive market, We sincerely hope to shakes hand with you to create a bright future! Because your success speak our success!
