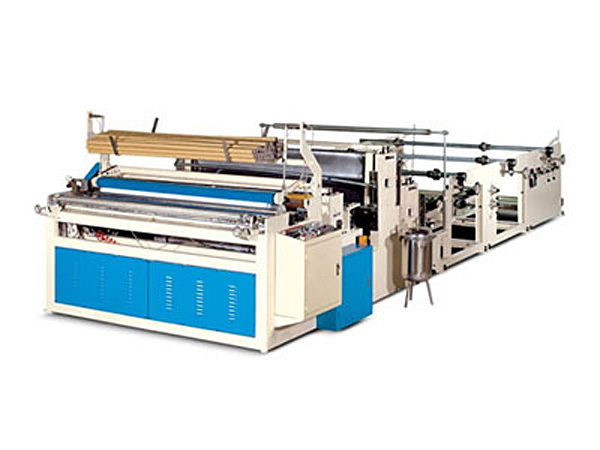

High quality toilet paper rewinding machine Function:

This machine can rewind the jumbo toilet roll into small roll with various smaller diameters in accordance with need. it don't change the width of jumbo roll,then ,the smaller diameter toilet roll can be cut into different size small toilet roll.

High quality toilet paper rewinding machine Performance Characteristics:

1. Using PLC computer to program the finished paper in the rewinding process to achieve the tightness and looseness of the different tightness to solve the looseness of the finished product due to long-term storage.

2. Full-automatic rewinding machine can choose double-sided embossing, gluing compound, which can make paper more soft than single-sided embossing, the effect of double-sided finished products is consistent, and each layer of paper does not spread when used, especially suitable for processing. Roll up kitchen paper towels and reduce weight by 15% or more when finished in the same size.

3. The machine is equipped with processing unintentional, solid, paper tube toilet paper, which can instantly switch between products, and can also be selected according to user needs.

4. Automatic trimming, glue spraying, sealing, and shafting are completed synchronously, so that there is no paper loss when the roll paper is cut into the band saw and packaged, which greatly improves the production efficiency and the grade of the finished product. Easy to enable.

5. Pneumatic belt feeding, double reel and each axis of the original paper have independent tension adjustment mechanism

High quality toilet paper rewinding machine Working Principle

Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.

1. Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.

2. Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.

3. Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.

About us:

Gongyi Shaolin Machine Manufactory was founded in 1995, we specialized in toilet paper making machine,toilet paper rewinding machine, paper napkin making machine, facial tissue folding machine, egg tray making machine, paper tube machine,pulp making machines and so on.

According to different requirements of raw materials, capacity and finished products, our factory can provide you with complete design, installation, commissioning and other services, help you get the most profit from a smaller investment.

We stick to the principle of "customer first, quality first", after more than 20 years of continuous development, our products not only popular in China, but also being exported to North America, Europe, Oceania, Middle East Asia, Southeast Asia, South Asia and other regions.

Gongyi Shaolin Machine Manufactory looks forward to your attention and patronage! In the rapid competitive market, We sincerely hope to shakes hand with you to create a bright future! Because your success speak our success!

Welcome to contact us!
