truck,coach bus,dump truck,cargo truck,used truck,semi trailer
> Auto, Motorcycle Parts & Accessories > Secondhand Vehicle & Stocks > Mobile Cement Mixer /Concrete mixer truck
1+
US $18000
Qing Dao,Shang Hai,Tian Jin.etc
500
L/C
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Spare parts, Field maintenance and repair service
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
engine, Bearing, Gearbox, PRESSURE VESSEL, GEAR, pump
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Dongfeng
Weight:
25000
Dimension(L*W*H):
8940 * 2500 *3930
Power(W):
250KW
Certification:
ISO CCC
UNIQUE SELLING POINT:
High operating efficiency
Engine Capacity:
8900
After-sales Service Provided:
Engineers available to service machinery overseas
Engine:
Weichai
Color:
White Red Yellow Green Blue
Driving type:
6X4 4X2
Chassis brand:
Dongfeng
Steering:
Left Hand Drive.Right Hand Driven.LHD.RHD
Keywords:
Concrete Mxier Truck
Fuel type:
Diesel Engine
Transmission:
Manual Operation
Warranty:
12 Months
Supply Ability
Supply Ability:
50000 Unit/Units per Year
Packaging & Delivery
Packaging Details
nude
Port
Shanghai Port
Lead Time :
| Quantity(Units) | 1 - 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |

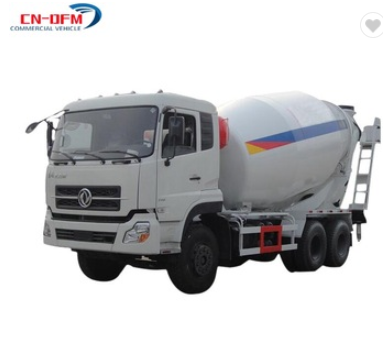

Mobile Cement Mixer /Concrete mixer truck
1. Introduction
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in South Africa in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.
We export commercial vehicles cover all series of Dongfeng Brand.
Dump Truck Series
Cargo Truck Series
Tractor Series
Special Purpose Vehicles
Military Vehicle Series
Passenger Vehicles Series
2. Feature
The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfortability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also bring down the drag coefficient to reduce the fuel consumption.
The engine: The tractors used Cummins engine which provide excellent gradeability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent trafficability and adaptability to various vile roads.
The gearbox: The Fast Brand gearbox adopt serration processing technology to lower the noise and vibration and increase the reliability.
3. Specification
Warranty Period: 6 months(calculating from the date the vehicle arrives at the destination port) or 30,000 kilometers, whichever comes first.
| Specification | ||
| Drive mode | 6×4 | |
| Engine | Model | Cummins L375 30 |
| Type | 6-cylinder in line, with strong cooling and hinged piston, can withstand extremely high mechanical and thermal loads | |
| Max. power(Kw/rpm) | 276/2200 | |
| Max. torque(N.m/rpm) | 1480/1400 | |
| Displacement(ml) | 8900 | |
| Type of fuel | Diesel | |
| Compression ratio | (16.6±0.5):1 | |
| Cab | D310-S1 | single berth |
| Gearbox | Model | FAST RT-11509C |
| Max.torque(N.m) | 1500 | |
| Clutch | Φ430mm | diaphragm spring clutch |
| Frame Height×Width× Thickness(mm) | 300×90×(8+6) | |
| Frame width 940 (front ), Frame width 810 ( rear ) | ||
| Tyre | Size | 315/80R 22.5 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 8940×2500×3930 |
| Wheel base (mm) | 3800+1350 | |
| Front/Rear tread(mm) | 1986/1860 | |
| Appr./Depa. angel (°) | 30/18 | |
| Min. ground cleanrance(mm) | 250 | |
| Mass | Payload(Kg) | 11870 |
| Curb weight(Kg) | 13000 | |
| G.V.W(Kg) | 25000 | |
| Performance | Max. speed(Km/h) | 80 |
| Max. gradeability(%) | 40 | |
| Min. turning diameter(m) | 23 | |
| Fuel consumption(L/100Km) | 36 | |
| Special function | Mixing capacity(m³) | 8 |
| Angel of inclination of mixing drum(°) | 13 | |
| Geometric volume(m³) | 14.3 | |
| Filling ratio(%) | 58 | |
| Feeding speed(m³/min) | ≥3 | |
| Discharge speed(m³/min) | ≥2 | |
| Residual ratio(%) | <0.8 | |
| Collapsed degree range(mm) | 40-230 | |
