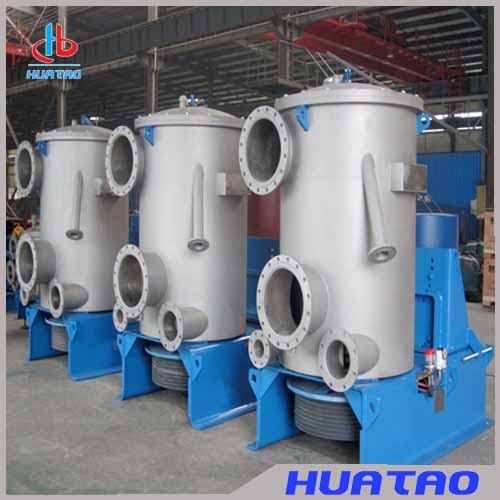

Paper Mill Outflow Pressure Screen/Coarse Screen/Fine Pressure Screen
Used for fine screening waste pulp and all kinds of coarse and fine pulp.
1. The rotor is rotated outside of the sieve drum, and the heavy impurities flow away from the sieve drum to avoid clogging the screen cut and prolong greatly the service life of sieve drum.
2. It has low pulse, high screening efficiency and reliable operation.
Features:
This equipment can be fitted with energy-saving rotors: coarse screening.
Rotor, fine screening rotor and headbox screening rotor.
Corresponding shell body and screen cylinder can match each
Different rotor, thereby achieving screening different pulp kinds with
High screening efficiency and low power consumption.
Main Technical Parameters:
Type | HT-31 | HT-32 | HT-33 | HT-34 | HT-35 | HT-36 | |
Screen area: m2 | 1.2 | 2 | 3.2 | 4.2 | 4.7 | 5.7 | |
Slot screen | Width of screen slot: mm | 0.15-0.45 | |||||
Screen consistency: % | 0.8-2.0 | ||||||
Flow rate: t/d | 5-30 | 10-50 | 25-120 | 40-200 | 60-300 | 80-400 | |
Power of motor: kw | 15 | 30 | 45 | 75-90 | 110-132 | 132-160 | |
